Brand: Panduit
|
SKU:
10057509

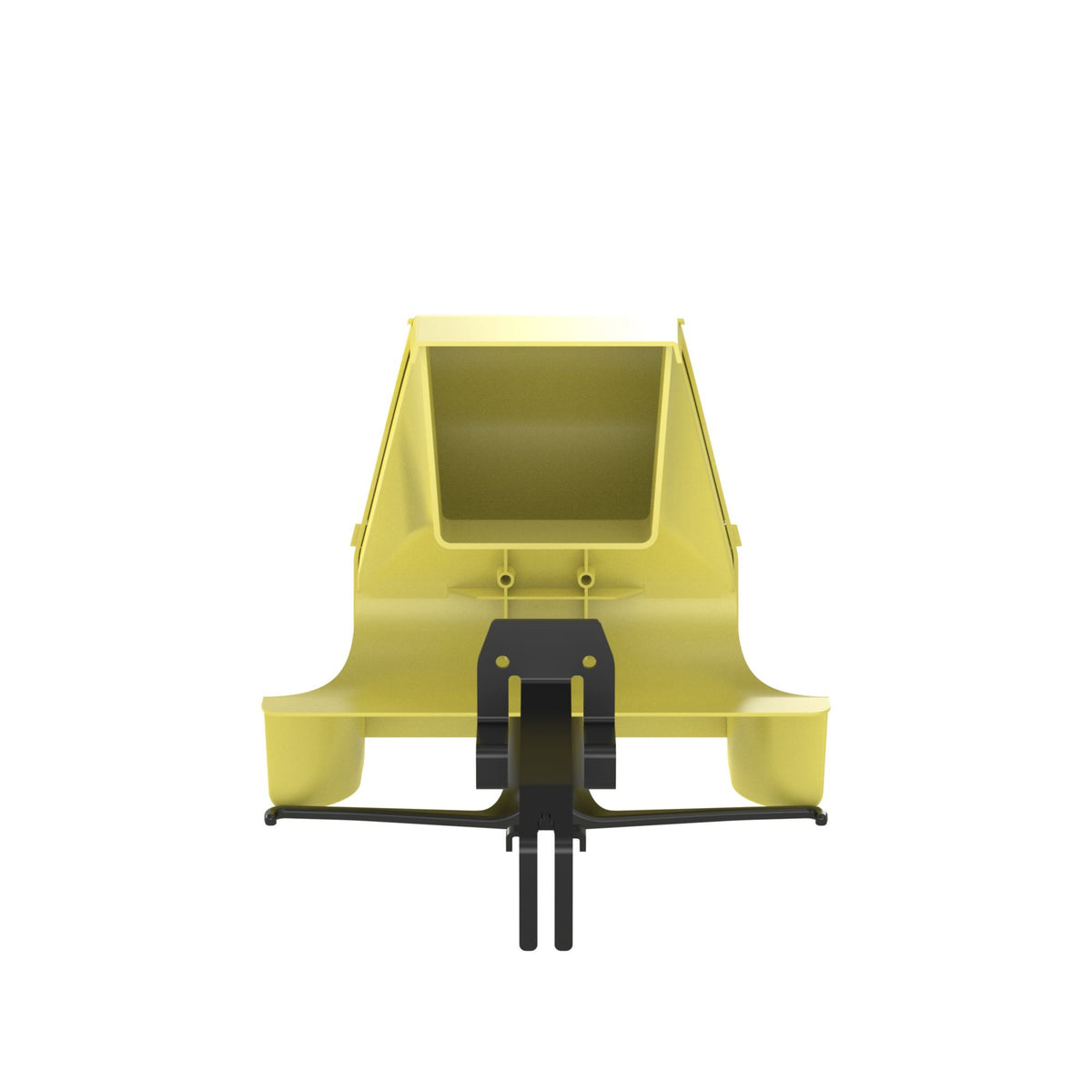

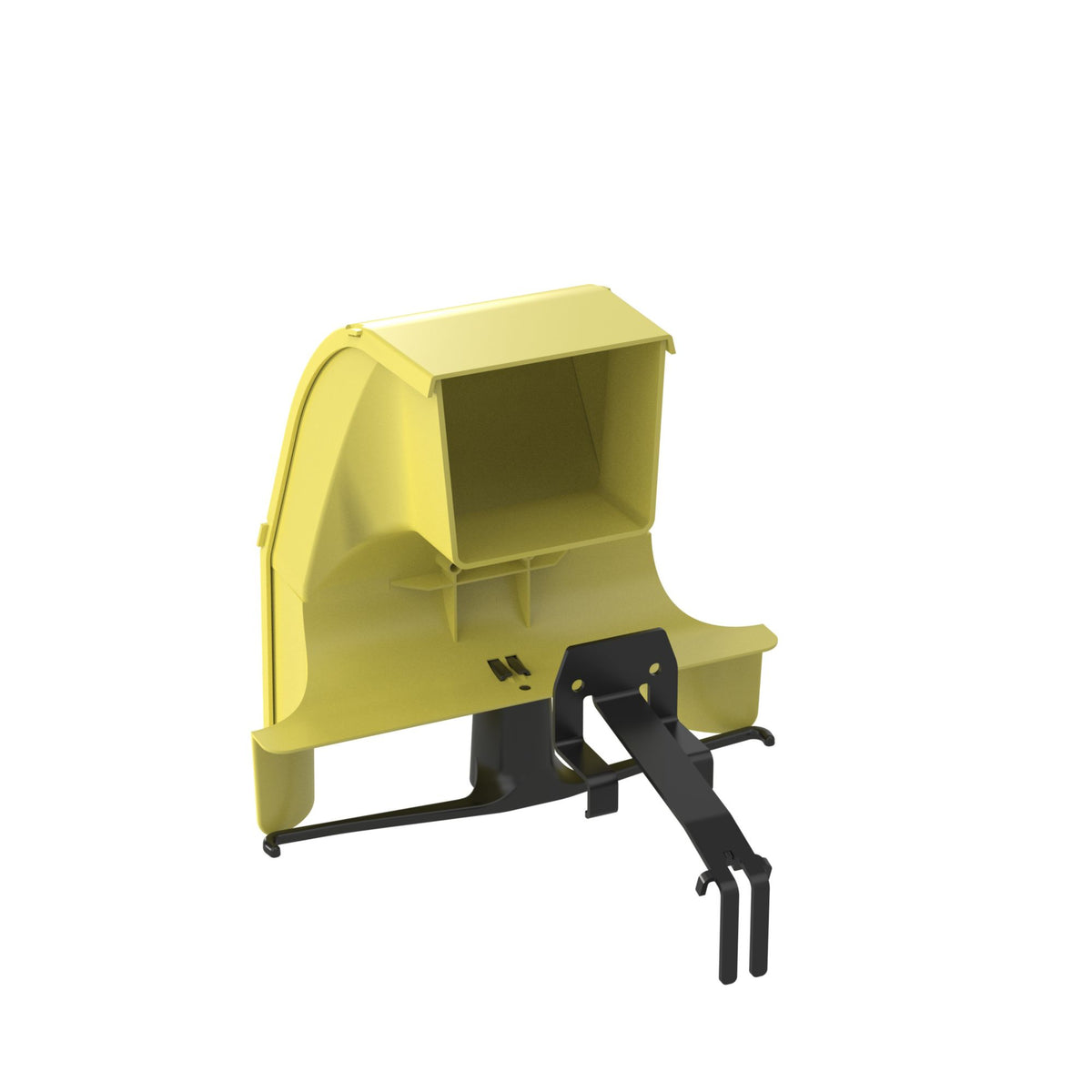

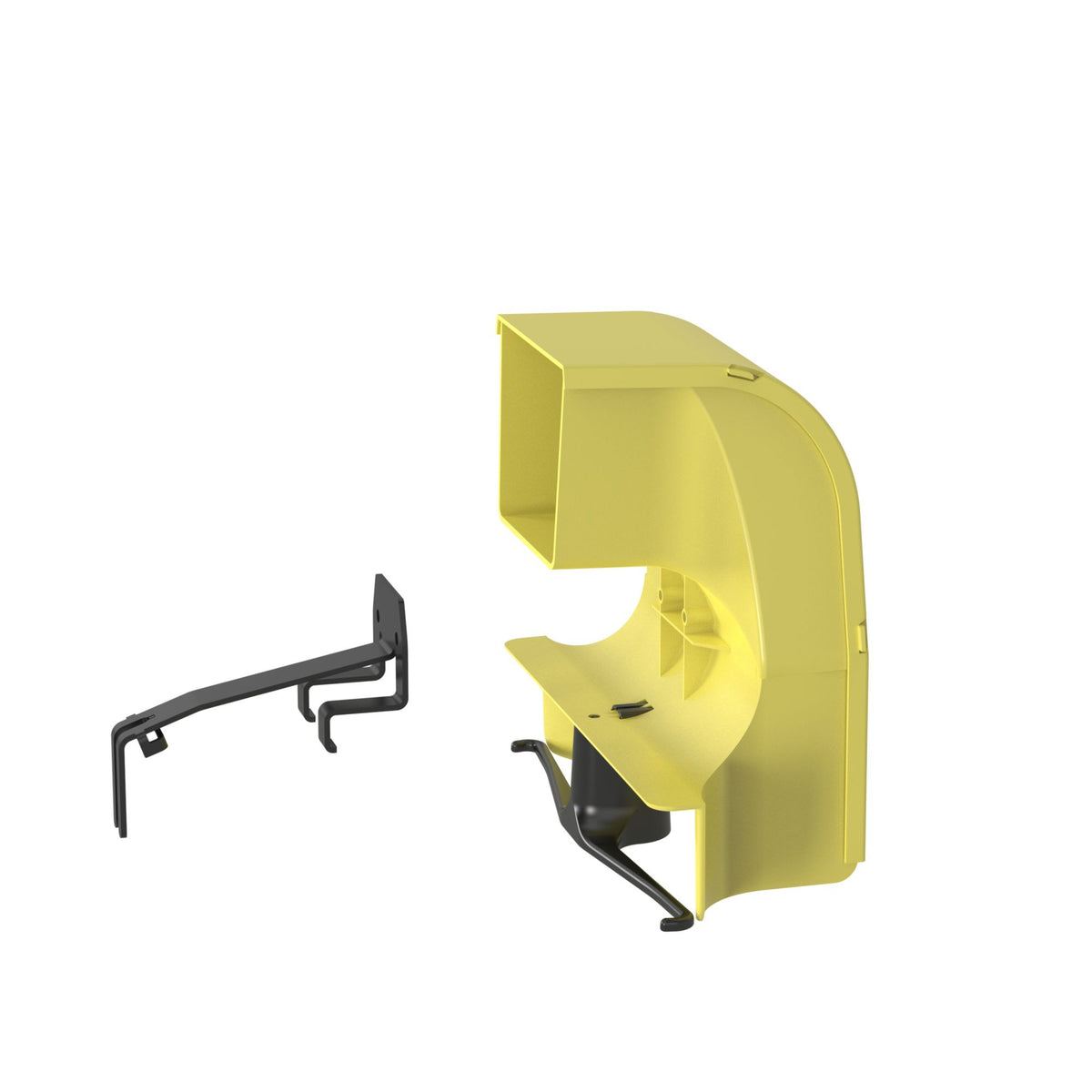

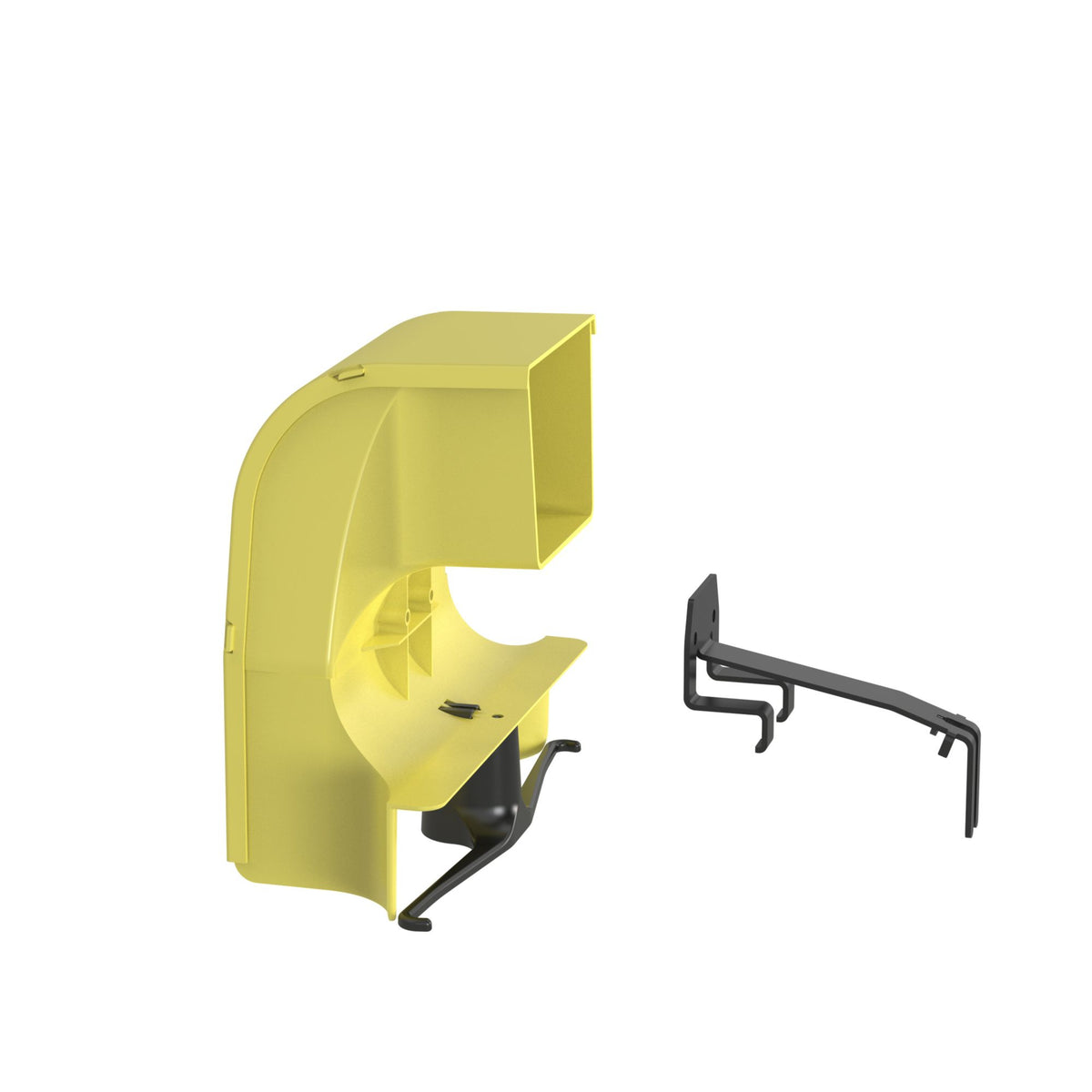

Panduit FRSPJ4X4LYL | FiberRunner Spill-Over Junction, 4x4, Yellow
Regular price
$273.37
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit FRSPJ4X4LYL | FiberRunner Spill-Over Junction, 4x4, Yellow
Regular price
$273.37
Unit price
Description
Description
Panduit FRSPJ4X4LYL | FiberRunner Spill-Over Junction, 4x4, Yellow
The FiberRunner 4x4 Spill-Over Junction is used to fully enclose 4x4, 6x4, 12x4, or 24x4 channels. It mounts directly to the existing installation with no alteration required.
Panduit FRSPJ4X4LYL Spill-over Junction Fitting with 4x4 Exit, yl
Specifications
Specifications
Panduit - FRSPJ4X4LYL - Product Categories
- Wire Routing, Management & Protection
- Fiber Routing Spillouts
Panduit - FRSPJ4X4LYL - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | FRSPJ4X4LYL |
| Item Description | FiberRunner Spill-Over Junction, 4x4, Yellow |
| Application | Data Centers and Telco Central Offices |
| Product Type | Spill-Over Junction |
| Sub Brand | FiberRunner |
| Bend Radius (In.) | 2 |
| Bend Radius (mm) | 50.8 |
| For Use With | 4x4, 6x4, 12x4, or 24x4 FiberRunner Channel |
| Includes | (1) Base Assembly, (1) Throat Cover, (1) Support Bracket, (1) 1/4-20 T-Bolt, (1) 1/4-20 Hex Keps Lock Nut, (2) 1/4- 14 X 1/2 Hex Washer Head Tapping Screws |
| Material | PC/ABS |
| Overall Height (In.) | 6.06 |
| Overall Height (mm) | 153.9 |
| Overall Length (In.) | 10.79 |
| Overall Length (mm) | 274.1 |
| Overall Width (In.) | 12.07 |
| Overall Width (mm) | 306.6 |
| Standards Met | RoHS Compliant, UL Listed to 2024 Optical Fiber Cable Routing Assemblies Compliant with the applicable tests in Telcordia GR-63-CORE Network Equipment Building Systems Level 3 |
| System Dimensions | 4x4 |
| Color | Yellow |
| Components | FITTINGS |
| Type | CABLE ROUTING / WIRING DUCT |
| UNSPSC Code | 39131712 |
Panduit - FRSPJ4X4LYL - Package Information
| UPC | 61305676438 |
|---|---|
| Standard Package Quantity | 1 |
| Standard Package Volume (cf) | 0.6347 |
| Standard Ctn. Quantity | 0 |
| Standard Ctn. Volume (cf) | 0.0000 |
Panduit - FRSPJ4X4LYL - Videos
| Video 1 | Click to View |
|---|
