Brand: Panduit
|
SKU:
SE150PS-LQR0

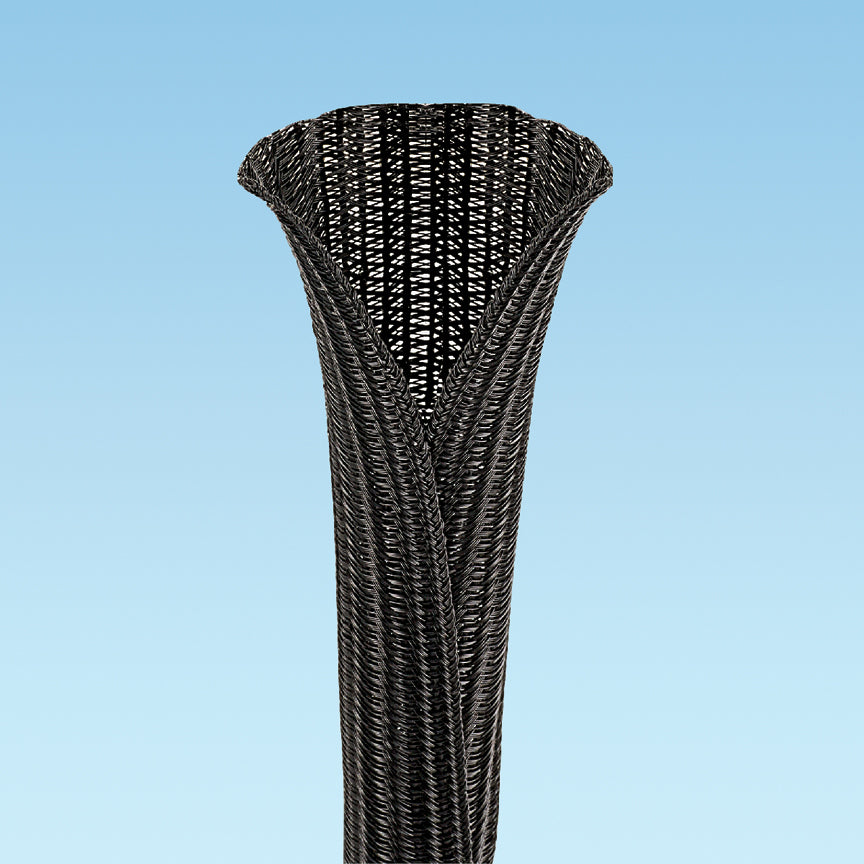

Panduit SE150PS-LQR0 | Pan-Wrap Braided Sleeving | UPC - 07498396074
Regular price
$567.07
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit SE150PS-LQR0 | Pan-Wrap Braided Sleeving | UPC - 07498396074
Regular price
$567.07
Unit price
Brand: Panduit
|
SKU:
SE150PS-LQR0
Regular price
$567.07
Unit price
Shipping calculated at checkout.
Description
Description
Panduit Pan-Wrap Braided Sleeve, Expandable, 1-1/2 in Sleeve Dia, 75 ft Sleeve Length, 1.38 to 1.5 in Cable Dia, -94 to 257 deg F, Flammability: HB, Polyethylene Terephthalate, Black
Features + Benefits
- Fray-resistant design resists fraying when cut with scissors
- Provides continuous abrasion protection resistance for wires, cables and tubing
- Lightweight, durable protection
Panduit SE150PS-LQR0 | Pan-Wrap Braided Sleeving | UPC - 07498396074 Key Specs
| Application | (1) Suited for the Challenging Applications Found in the Transportation and Marine Industries due to its Open Weave Design, Lack of Halogens, and Exceptional Flammability Performance. (2) Installation Tool Reduces Installation Time by Allowing Easy Loadin |
| Sub Brand | Pan-Wrap |
| Material | Polyethylene Terephthalate |
| Flammability Rating | UL94-HB |
| Color | Black |
| Resistance Properties | Weather-Resistant |
| Standards Met | CSA Certified, Flammability: Halogen Free RoHS, UL Recognized E116868 |
| Maximum Operating Temperature (°C) | 125 |
| Minimum Operating Temperature (°C) | -70 |
| Maximum Operating Temperature (°F) | 257 |
| Minimum Operating Temperature (°F) | -94 |
| Nominal Diameter (In.) | 1.5 |
| Nominal Diameter (mm) | 38.1 |
| Overall Length (ft.) | 75 |
| Overall Length (m) | 22.9 |
| Product Type | Pan-Wrap Braided Sleeving |
| Part Features | Allows for installation after wire or cable is routed and terminated, Ideal for applications where re-entry is required, Provides continuous abrasion resistance for wires cables, and tubing, Lightweight durable protection, Highly flexible open weave will not trap heat or humidity |
Panduit SE150PS-LQR0 | Pan-Wrap Braided Sleeving | UPC - 07498396074 Data Sheets
| Specification Sheets | Pan-Wrap Braided Sleeving Specification Sheet | Download and View |
| Part Drawings | PAN-WRAP Braided Sleeving | Download and View |
| Line Cards | Wire Abrasion Protection Line Card HSLC1-WW-ENG | Download and View |
Panduit SE150PS-LQR0 | Pan-Wrap Braided Sleeving | UPC - 07498396074 Environmental Information
| Panduit's RoHS Statement | Download and View |
