HellermannTyton 151-10905 | Q Tie Mount With Adhesive, 1.2" X ...
Description
Description

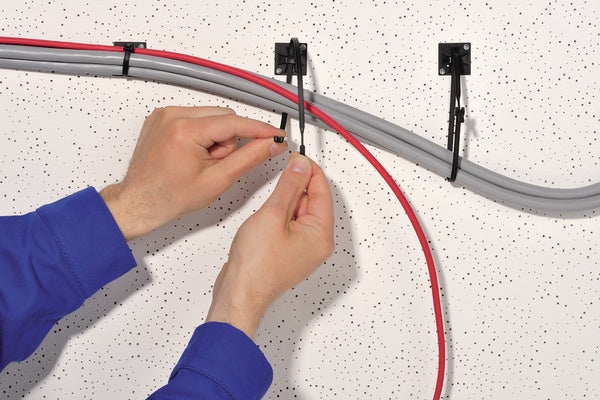

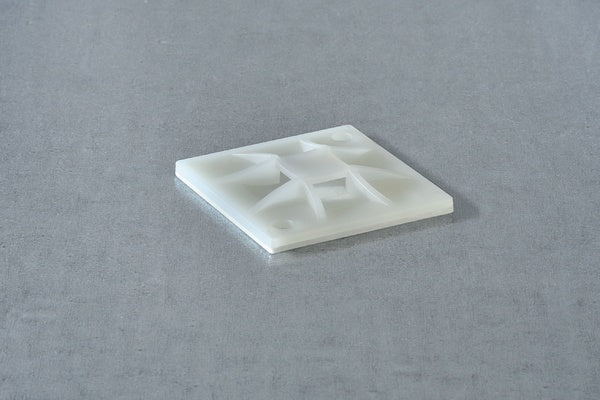

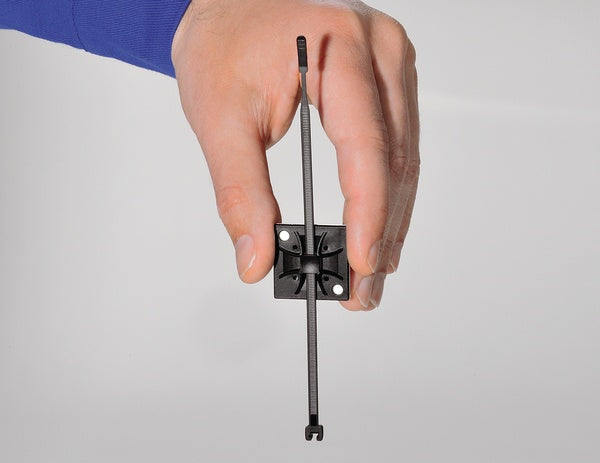

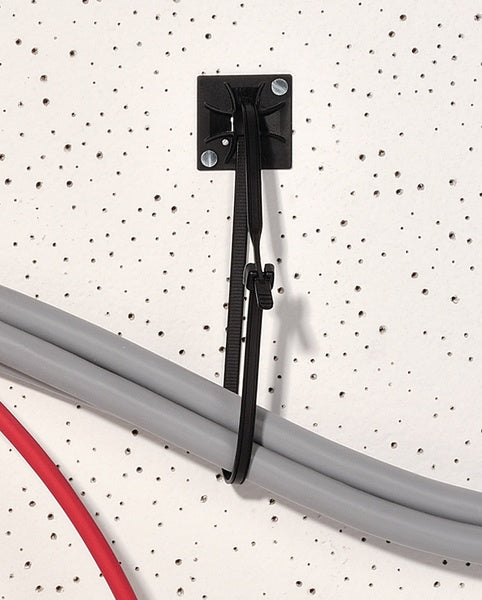

Q Mounts are designed to work exclusively with the Q Tie cable tie series. This mounting component is available with adhesive or can be secured with screws. The Q Mount allows either a 2- or 4-way entry for the Q Tie, providing a quick and simple inser tion into the mount. Once in place, the Q Tie will not slip out, even in vertical mounting applications.
Q Mounts are designed to work exclusively with the Q Tie cable tie series. This mounting component is available with adhesive or can be secured with screws. The Q Mount allows either a 2- or 4-way entry for the Q Tie, providing a quick and simple insertion into the mount. Once in place, the Q Tie will not slip out, even in vertical mounting applications.
About HellermannTyton: HellermannTyton is a global manufacturer of cable management and identification solutions for automotive, solar, electrical, construction, industrial automation, broadband and other OEM markets. The company's integrated approach to product design, sustainability, production, quality assurance and delivery is optimized to benefit local and global customers. HellermannTyton operates in 39 countries, with North American headquarters in Milwaukee, Wisconsin.
HellermannTyton - 151-10905 - Features
- 2- or 4-way entry options for the Q Tie, offering flexibility and stability
- A temporary film is applied to the covers to protect against scratches and is writable for identification during installation.
- Cover is flush with the side of the duct for increased wire capacity and allows for tight, side by side duct placement.
- Covers are provided with a non-slip lining, which insures the covers remain in place during vibration, yet they easily snap on and off. (Covers to be purchased separately)
Specifications
Specifications
HellermannTyton - 151-10905 - Product Categories
- Hardware
- Cable Management
- Tubing
- Bundling & Securing
- Cable Tie Mounts
- Adhesive Mounting Bases
HellermannTyton - 151-10905 - Specifications
| Brand Name | HellermannTyton |
|---|---|
| Dual | No |
| Heat Shrink | No Is Not Shrink Tubing |
| UNSPSC Code | 39130000 |
HellermannTyton - 151-10905 - Base Data
| Article Number | 151-10905 |
|---|---|
| Type | QM30A |
| Color | Natural (NA) |
| Quantity Per | bag |
| Short Description | Q Tie Mount with Adhesive, 1.2" x 1.2" x 0.21", 4 way entry for Q18 thru Q50 ties, PA66, White, 100/bg |
| Global Part Name | QM30A-PA66-NA |
HellermannTyton - 151-10905 - Product Dimensions
| Length L (Imperial) | 1.2 |
|---|---|
| Length L (Metric) | 30 |
| Fixation Method | Screw Mounting and Adhesive |
| Width W (Imperial) | 1.2 |
| Width W (Metric) | 30 |
| Height H (Imperial) | 0.21 |
| Height H (Metric) | 4.5 |
| Cable Tie Width Max (Imperial) | 0.2 |
| Cable Tie Width Max (Metric) | 5.1 |
| Mounting Hole Diameter D (Imperial) | 0.16 |
| Mounting Hole Diameter D (Metric) | 4.1 mm |
| Mounting Hole Diameter D Min (Imperial) | 0.16 |
| Mounting Hole Diameter D Max (Metric) | 4.1 |
| Mounting Hole Centers (Imperial) | 0.83 |
HellermannTyton - 151-10905 - Logistic & Packaging
| Package Quantity (Imperial) | 100 |
|---|---|
| Package Quantity (Metric) | 100 |
| Customs Number | 3.93E+09 |
HellermannTyton - 151-10905 - Materials & Specifications
| Material | Polyamide 6.6 (PA66) |
|---|---|
| Material Shortcut | PA66 |
| Adhesive | Synthetic rubber with base of polyethylene foam |
| Flammability | UL 94 V-2 (excluding adhesive) |
| Halogen Free | Yes |
| UV Resistant (Yes/No) | No |
| Adhesive Operating Temperature | -40°F to +140°F (-40°C to +60°C) |
| Operating Temperature | -40°F to +140°F (-40°C to +60°C) |
| Reach Compliant (Article 33) | Yes |
| ROHS Compliant | Yes |
HellermannTyton - 151-10905 - Videos
| HellermannTyton 151-10905 Video URL | Click to View |
|---|
