Panduit PLT3H-L96A | Antimicrobial Met-Det Cable Tie
Description
Description

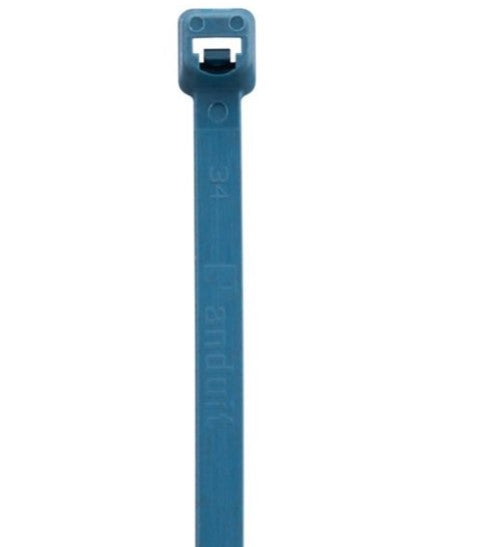

Panduit PLT3H-L96A Metal Detectable Cable Ties are designed to help the food and beverage industries meet product manufacturing safety standards. Featuring metal impregnated material, these cable ties are identifiable by metal detection equipment. Additionally, their antimicrobial properties help to reduce the growth of bacteria, fungus and mold. -Heavy cross section, 11.1” (282mm) length. Made of Metal Detectable Nylon 6.6, blue in color, and come in packages of 50.
Specifications
Specifications
Panduit - PLT3H-L96A - Specifications
| Product Type | Cable Tie |
|---|---|
| Color | Blue |
| Environment | Indoor |
| Material | Nylon 6.6 |
| Overall Length (In.) | 11.1 |
| Overall Length (mm) | 282 |
| Body Width (In.) | 0.3 |
| Body Width (mm) | 7.6 |
| Body Thickness (In.) | 0.075 |
| Body Thickness (mm) | 1.9 |
| Maximum Bundle Diameter (In.) | 3 |
| Maximum Bundle Diameter (mm) | 76 |
| Minimum Bundle Diameter (In.) | 0.25 |
| Minimum Bundle Diameter (mm) | 6.4 |
| Minimum Loop Tensile Strength (N) | 534 |
| Minimum Loop Tensile Strength (lb) | 120 |
| Maximum Operating Temperature (°C) | 85 |
| Maximum Operating Temperature (°F) | 185 |
| Minimum Operating Temperature (°C) | -40 |
| Minimum Operating Temperature (°F) | -40 |
| Minimum Installation Temperature (°C) | -20 |
| Minimum Installation Temperature (°F) | -4 |
| Standards Met | RoHS Compliant |
| For Use With | GTH-E, GS4H-E, GS4EH-E, STH2, ST3EH |
| Part Features | One-piece locking wedge for consistent performance and reliability. Low thread force and high loop tensile strength. |
Panduit - PLT3H-L96A - Package Information
| UPC | 61305682374 |
|---|---|
| Std. Pkg. Qty. | 50 |
| Std. Pkg. Volume (cf) | 0.0502 |
| Std. Ctn. Qty. | 500 |
| Std. Ctn. Volume (cf) | 0.5019 |
Panduit - PLT3H-L96A - Video
| Panduit PLT3H-L96A Videos | Click to View |
|---|
