Brand: Panduit
|
SKU:
995669

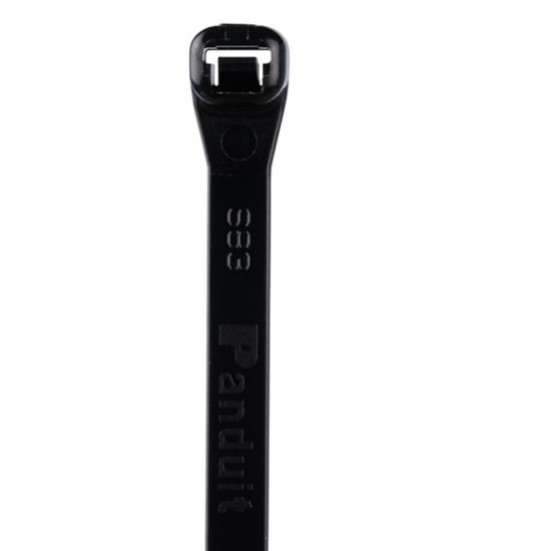

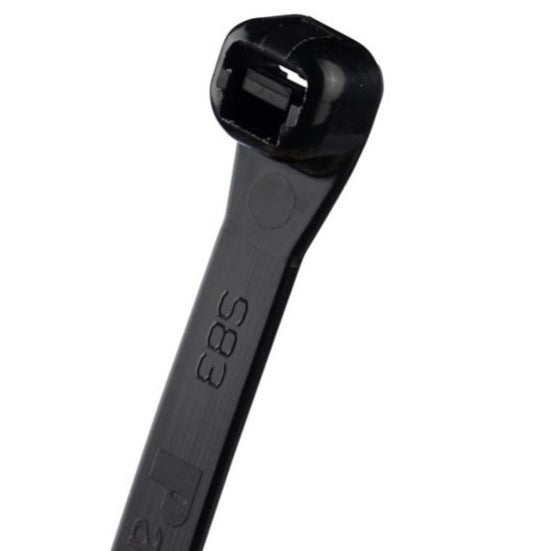

Panduit SG250S-C0 | Super-Grip Cable Tie
Regular price
$61.36
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit SG250S-C0 | Super-Grip Cable Tie
Regular price
$61.36
Unit price
Description
Description
Panduit SG250S-C0 | Super-Grip Cable Tie
Super-Grip® Cable Ties are designed with high strength and flexibility to tightly grip bundles and resist lateral movement despite the rough conditions of MRO and construction environments. Plus, with weather-resistant Nylon 6.6 material, it's ideal for intense UV environments. Standard cross section, 10.4in, Tensile Strength: 334, black, 100pc.
Specifications
Specifications
Panduit - SG250S-C0 - Specifications
| Product Type | Cable Tie |
|---|---|
| Sub Brand | Super-Grip® |
| Color | Black |
| Environment | Outdoor |
| Material | Nylon 6.6 |
| Resistance Properties | UV-Resistant |
| Overall Length (In.) | 10.4 |
| Overall Length (mm) | 264.2 |
| Body Width (In.) | 0.225 |
| Body Width (mm) | 5.7 |
| Body Thickness (In.) | 0.05 |
| Body Thickness (mm) | 1.3 |
| Maximum Bundle Diameter (In.) | 2.6 |
| Maximum Bundle Diameter (mm) | 66 |
| Minimum Bundle Diameter (In.) | 0.16 |
| Minimum Bundle Diameter (mm) | 4.1 |
| Minimum Loop Tensile Strength (N) | 334 |
| Minimum Loop Tensile Strength (lb) | 75 |
| Maximum Operating Temperature (°C) | 85 |
| Maximum Operating Temperature (°F) | 185 |
| Minimum Operating Temperature (°C) | -60 |
| Minimum Operating Temperature (°F) | -76 |
| Minimum Installation Temperature (°C) | 70 |
| Minimum Installation Temperature (°F) | -40 |
| Standards Met | CSA Certified, UL Listed (File #E56854), RoHS Compliant |
| For Use With | GTS, GTSL, GS2B, GTH, GS4H, PTS, PTH, PPTS, STS2, STH2 |
| Application | General |
| Part Features | High grip strength, Thin, wide strap body, Distinctive flared neck, Strong wedge and hinge, Tapered tip, Agressive tip grips |
Panduit - SG250S-C0 - Package Information
| UPC | 07498337915 |
|---|---|
| Std. Pkg. Qty. | 100 |
| Std. Pkg. Volume (cf) | 0.0556 |
| Std. Ctn. Qty. | 1000 |
| Std. Ctn. Volume (cf) | 0.5563 |
Panduit - SG250S-C0 - Video
| Panduit SG250S-C0 Videos | Click to View |
|---|
