Brand: Panduit
|
SKU:
10214150

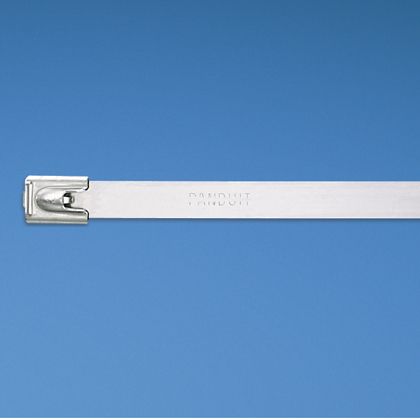

Panduit MLT10H-LP316 | Pan-Steel MLT10H-LP316 Cable Tie, SS 316, Natural, Heavy, 10" Dia., PK50
Regular price
$301.34
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit MLT10H-LP316 | Pan-Steel MLT10H-LP316 Cable Tie, SS 316, Na...
Regular price
$301.34
Unit price
Description
Description
Panduit MLT10H-LP316 | Pan-Steel MLT10H-LP316 Cable Tie, SS 316, Natural, Heavy, 10" Dia., PK50
Pan-Steel Self-locking Cable Ties speed up installation with a unique self-locking head design that locks into any part of the tie. Plus, the smooth edges of 316 stainless steel promote worker safety in indoor, outdoor and underground environments. Heavy cross section, Max bundle diameter: 10in, 33in, Tensile strength: 2000, 50pc.
Specifications
Specifications
Panduit - MLT10H-LP316 - Product Categories
- Wire Routing, Management & Protection
- Cable Ties & Wire Ties
Panduit - MLT10H-LP316 - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | MLT10H-LP316 |
| Item Description | Pan-Steel MLT10H-LP316 Cable Tie, SS 316, Natural, Heavy, 10" Dia., PK50 |
| Product Type | Stainless Steel Cable Ties |
| Sub Brand | Pan-Steel |
| Color | Natural |
| Environment | Harsh |
| Material | Stainless Steel Type 316 |
| Resistance Properties | UV Resistant |
| Overall Length (In.) | 33 |
| Overall Length (mm) | 838 |
| Body Width (In.) | 0.31 |
| Body Width (mm) | 7.9 |
| Body Thickness (In.) | 0.01 |
| Body Thickness (mm) | 0.3 |
| Maximum Bundle Diameter (In.) | 10 |
| Maximum Bundle Diameter (mm) | 254 |
| Minimum Bundle Diameter (In.) | 0.5 |
| Minimum Bundle Diameter (mm) | 12.7 |
| Minimum Loop Tensile Strength (N) | 2000 |
| Minimum Loop Tensile Strength (lb) | 450 |
| Maximum Operating Temperature (°C) | 538 |
| Maximum Operating Temperature (°F) | 1000 |
| Minimum Operating Temperature (°C) | -60 |
| Minimum Operating Temperature (°F) | -76 |
| Minimum Installation Temperature (°C) | -60 |
| Minimum Installation Temperature (°F) | -76 |
| Standards Met | UL E56854,CE,ABS,GL,SAE,BV,LR,DNV,USCG |
| Military Cross Reference Number | M23190/3-9 |
| For Use With | GS4MT-E, HTMT, PPTMT, ST2MT |
| Application | Corrosive Environment |
Panduit - MLT10H-LP316 - Package Information
| UPC | 07498354394 |
|---|---|
| Std. Pkg. Qty. | 50 |
| Std. Pkg. Volume (cf) | 0.0526 |
| Std. Ctn. Qty. | 250 |
| Std. Ctn. Volume (cf) | 0.2629 |
Panduit - MLT10H-LP316 - Videos
| Video 1 | Click to View |
|---|
