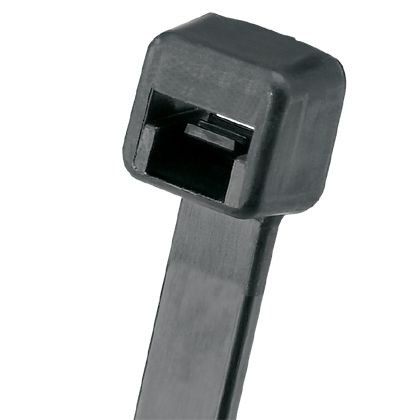

Panduit PLT2I-M300 | Pan-Ty PLT2I-M300 Cable Tie, Black, High Heat UV PA6.6, 8"L, 40lb, PK1000
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit PLT2I-M300 | Pan-Ty PLT2I-M300 Cable Tie, Black, High Heat ...
Description
Description
Panduit PLT2I-M300 Locking Cable Ties are designed to satisfy the needs of high temperature and weather resistant applications, while delivering consistent performance and reliability. Featuring a curved tip to allow for easy pick up from flat surfaces and faster initial threading. Intermediate cross section, 8.0" (203mm) length. Made of Heat Stabilized Weather Resistant Nylon 6.6 with high resistance to ultraviolet light, are black in color and come in packages of 1000.
Specifications
Specifications
Panduit - PLT2I-M300 - Product Categories
- Wire Routing, Management & Protection
- Cable Ties & Wire Ties
Panduit - PLT2I-M300 - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | PLT2I-M300 |
| Item Description | Pan-Ty PLT2I-M300 Cable Tie, Black, High Heat UV PA6.6, 8"L, 40lb, PK1000 |
| Product Type | Premium Cable Tie |
| Color | Black |
| Environment | Indoor/Outdoor |
| Material | Heat Stabilized Weather Resistant Nylon 6.6 |
| Resistance Properties | Heat and UV Resistant |
| Overall Length (In.) | 8 |
| Overall Length (mm) | 203 |
| Body Width (In.) | 0.142 |
| Body Width (mm) | 3.6 |
| Body Thickness (In.) | 0.045 |
| Body Thickness (mm) | 1.1 |
| Maximum Bundle Diameter (In.) | 2 |
| Maximum Bundle Diameter (mm) | 51 |
| Minimum Bundle Diameter (In.) | 0.06 |
| Minimum Bundle Diameter (mm) | 1.5 |
| Minimum Loop Tensile Strength (N) | 178 |
| Minimum Loop Tensile Strength (lb) | 40 |
| Maximum Operating Temperature (°C) | 115 |
| Maximum Operating Temperature (°F) | 239 |
| Minimum Operating Temperature (°C) | -60 |
| Minimum Operating Temperature (°F) | -76 |
| Minimum Installation Temperature (°C) | -20 |
| Minimum Installation Temperature (°F) | -4 |
| Standards Met | CSA Certified, UL Compliant 62275 Type 2, UL Listed #E56854, Rated for AH-2 Plenum, RoHS Compliant |
| For Use With | GTS-E, GS2B-E, PTS, PPTS, STS2 |
| Part Features | One-piece locking wedge for consistent performance and reliability. Low thread force and high loop tensile strength. |
Panduit - PLT2I-M300 - Package Information
| UPC | 07498356273 |
|---|---|
| Std. Pkg. Qty. | 1000 |
| Std. Pkg. Volume (cf) | 0.1362 |
| Std. Ctn. Qty. | 25000 |
| Std. Ctn. Volume (cf) | 3.4046 |
Panduit - PLT2I-M300 - Videos
| Video 1 | Click to View |
|---|
