HellermannTyton 156-01340 | 1-Piece Cable Ties with Pipe Clip, 15-1...
Description
Description

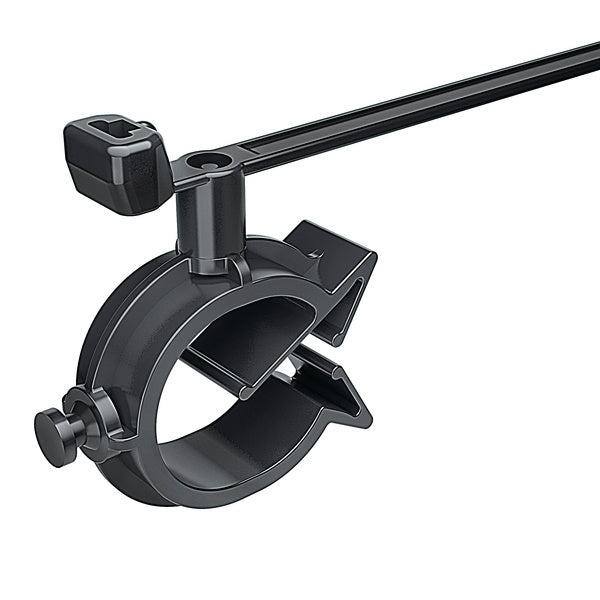

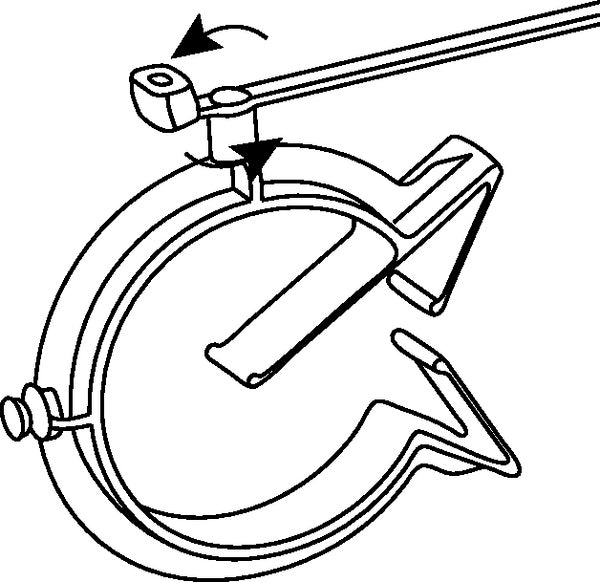

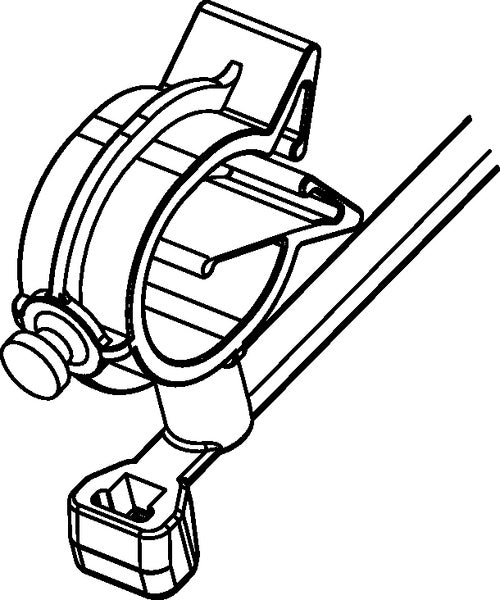

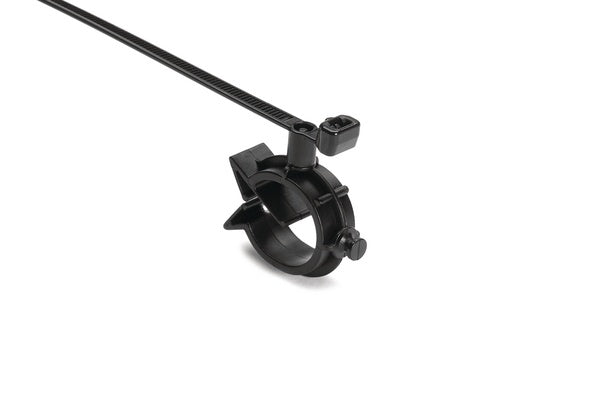

HellermannTyton’s 1-Piece Cable Tie with Pipe Clip secures cables to tubular frame rails. The cable tie bundles wires, cables or tubes, and the C-clip snaps onto the tubular frame rail. The clip can be removed from the mounting surface and reinstalled without additional fasteners.
HellermannTyton’s 1-Piece Cable Tie with Pipe Clip secures cables to tubular frame rails. The cable tie bundles wires, cables or tubes, and the C-clip snaps onto the tubular frame rail. The clip can be removed from the mounting surface and reinstalled without additional fasteners.
About HellermannTyton: HellermannTyton is a global manufacturer of cable management and identification solutions for automotive, solar, electrical, construction, industrial automation, broadband and other OEM markets. The company's integrated approach to product design, sustainability, production, quality assurance and delivery is optimized to benefit local and global customers. HellermannTyton operates in 39 countries, with North American headquarters in Milwaukee, Wisconsin.
HellermannTyton - 156-01340 - Features
- Bundle can rotate to any orientation, allowing routing in any direction regardless of mounting point.
- Clip is reusable, making relocation or adjustments simple.
- All-in-one bundling and mounting solution reduces costs.
- Concave design ensures larger diameter cables and bundles are fully supported
- Quickly installs with either a screw or bolt
- Strong part design to allows for heavy bundles
Specifications
Specifications
HellermannTyton - 156-01340 - Product Categories
- Hardware
- Cable Management
- Tubing
- Bundling & Securing
- Cable Ties
- Cable Ties - Special Function
HellermannTyton - 156-01340 - Specifications
| Brand Name | HellermannTyton |
|---|---|
| Dual | No |
| Heat Shrink | No Is Not Shrink Tubing |
| Spiral Wrap | No |
| UNSPSC Code | 39130000 |
HellermannTyton - 156-01340 - Base Data
| Article Number | 156-01340 |
|---|---|
| Type | T50SMVCOC15-18 |
| Color | Black (BK) |
| Quantity Per | bag |
| Short Description | 1-Pc Cable Ties with Pipe Clip, 15-18mm, PA66HIRHS, Black, 500/pkg |
| Global Part Name | T50SMVCOC15-18-PA66HS/PA66HIRHS-BK |
HellermannTyton - 156-01340 - Product Dimensions
| Minimum Tensile Strength (Imperial) | 50 |
|---|---|
| Minimum Tensile Strength (Metric) | 222 |
| Length L (Imperial) | 8.3 |
| Length L (Metric) | 210 |
| Fixation Method | Omega Clips |
| Identification Plate Position | none |
| Width W (Imperial) | 0.19 |
| Width W (Metric) | 4.7 |
| Bundle Diameter Min (Imperial) | 0.08 |
| Bundle Diameter Min (Metric) | 2 |
| Bundle Diameter Max (Imperial) | 2 |
| Bundle Diameter Max (Metric) | 50 |
HellermannTyton - 156-01340 - Logistic & Packaging
| Package Quantity (Imperial) | 500 |
|---|---|
| Package Quantity (Metric) | 500 |
| Customs Number | 3.93E+09 |
HellermannTyton - 156-01340 - Materials & Specifications
| Material | Polyamide 6.6, high impact modified, heat stabilized (PA66HIRHS)Polyamide 6.6 heat stabilized (PA66HS) |
|---|---|
| Material Shortcut | PA66HSPA66HIRHS |
| Material Cable Tie | Polyamide 6.6 heat stabilized (PA66HS) |
| Flammability | UL 94 HB |
| UV Resistant (Yes/No) | No |
| Operating Temperature | -40°F to +221°F (-40°C to +105°C) |
| Reach Compliant (Article 33) | No |
| ROHS Compliant | Yes |
HellermannTyton - 156-01340 - Videos
| HellermannTyton 156-01340 Video URL | Click to View |
|---|
