Panduit SC15-120-S25-L0 | StrongHold™ Clamp Cable Tie
Description
Description

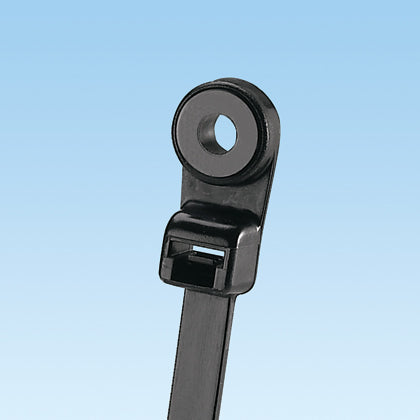

Panduit StrongHold Cable Tie, Light Heavy Weather-Resistant, 14.96 in Length, 0.3 in Width, 0.07 in Thickness, 3.86 in Bundle Dia, Locking, 120 lb Tensile, -40 to 185 deg F, Nylon 6.6, Black
Attach cable bundles to any surface with our clamp cable tie. With its clamp design, if offers contractors an economical option for commercial construction and general-purpose applications
The SC15-120-S25-L0 StrongHold Clamp Cable Ties offers contractors an economical clamp cable tie option for commercial construction and general-purpose applications. The cable tie design allows you to secure cable bundles to another surface, for use wi th #1/4 (M6) screw. Light-Heavy, 14.96 (380mm) length and are for outdoor use. Made of Weather Resistant Nylon 6.6, are black in color and come in packages of 50.
Panduit - SC15-120-S25-L0 - Features
- Riser rated patch cords support installations that require this flame rating in specific environments
- 100% performance tested assures that patch cords and pigtails are standard compliant
- QC identification label quality control reference provides lifetime traceability of test data
- Mount with #12/M5 screw
Specifications
Specifications
Panduit - SC15-120-S25-L0 - Specifications
| Category | Clamps And Vices |
|---|---|
| Approvals | None |
| Quality Standard | Commercial Release |
| Rohs Compliant | Not Declared |
| Type | Clamp - Cable, Mini |
| UNSPSC Code | 39121700 |
| Technical Information | UL 62275 Compliant (Type 2, 21), UL Listed #E56854, RoHS Complaint |
| Material Description | Nylon 6.6 (UV-Resistant, Weather-Resistant) |
| Product Type | Cable Tie |
| Sub Brand | StrongHold™ |
| Color | Black |
| Environment | Indoor/Outdoor |
| Material | Nylon 6.6 |
| Resistance Properties | UV-Resistant, Weather-Resistant |
| Overall Length (In.) | 14.96 |
| Overall Length (mm) | 380 |
| Body Width (In.) | 0.3 |
| Body Width (mm) | 7.6 |
| Maximum Bundle Diameter (In.) | 3.86 |
| Maximum Bundle Diameter (mm) | 98 |
| Minimum Loop Tensile Strength (N) | 222 |
| Minimum Loop Tensile Strength (lb) | 50 |
| Maximum Operating Temperature (°C) | 85 |
| Maximum Operating Temperature (°F) | 185 |
| Minimum Operating Temperature (°C) | -40 |
| Minimum Operating Temperature (°F) | -40 |
| Standards Met | UL 62275 Compliant (Type 2, 21), UL Listed #E56854, RoHS Compliant |
| UPC | 61305625835 |
Panduit - SC15-120-S25-L0 - Package Information
| UPC | 61305625835 |
|---|---|
| Standard Packaging Quantity | 50 |
| Standard Packaging Volume (cf) | 0.0812 |
| Standard Ctn. Quantity | 500 |
| Standard Ctn. Volume (cf) | 0.8116 |
