Brand: Alpha Wire
|
SKU:
A9174

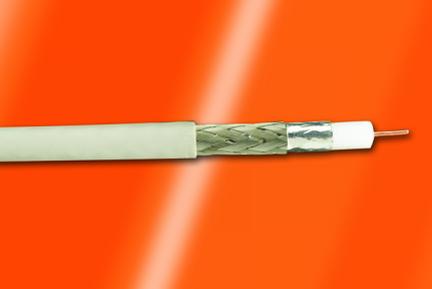

Alpha Wire 9174 BK001 | Manhattan-Electrical-Cables, Coaxial, 1 Coax, 26 AWG, Braid, 1100 V, PVC Jacket, 0.102 Jacket Diameter, 0.012 Jacket Thickness, 0.06 Core Diameter, 7/34 Stranding
Regular price
$1.46
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Alpha Wire 9174 BK001 | Manhattan-Electrical-Cables, Coaxial, 1 Coa...
Regular price
$1.46
Unit price
Description
Description
Coaxial Cable 26 AWG (0.14mm²) RG-174 1000.0' (304.80m) 50 Ohms
Specifications
Specifications
Specifications
| Component 1 | 1 X 1 COAX |
|---|---|
| Conductor | 26 (7/3AWG BCW |
| Insulation | 0.0205" Wall, Nom. Polyethylene(PE) |
| Shield | TC BRAID Shield,85% Coverage, Min. |
| Jacket | 0.012" Wall, Nom.,Type I PVC |
| Color(s) | Black, Red |
| ALPHA WIRE-* P/N 9174 RG 174/U RU AWM STYLE 1354 CE ROHS* = Factory Code | |
| CE: EU Directive 2011/65/EU(RoHS2): | This product complies with European Directive 2011/65/EU (RoHS Directive) of the European Parliament and of the Council of 8 June 2011. No Exemptions are required for RoHS Compliance on this item. Consult Alpha Wire's web site for RoHS C of C. |
| REACH Regulation (EC 1907/2006): | This product does not contain Substances of Very High Concern (SVHC) listed on the European Union's REACH candidate list in excess of 0.1% mass of the item. For up-to-date information, please see Alpha's REACH SVHC Declaration. |
| California Proposition 65: | The outer surface materials used in the manufacture of this part meet the requirements of California Proposition 65. |
| Packaging | Flange x Traverse x Barrel (inches) |
| Temperature Range | -40 to 80°C |
| Bend Radius | 10X Cable Diameter |
| Pull Tension | 3.9 Lbs, Maximum |
| Voltage Rating | 1100 VRMS |
| Ground Capacitance | 30.8 pf/ft @1 kHz, Nominal |
| Velocity of Propagation | 66 % |
| Conductor DCR | 96.7 ?/1000ft @20°C, Nominal |
| OA Shield DCR | 11.8 ?/1000ft @20°C, Nominal |
| Voltage Withstanding | 4.5 kV, Minimum |
| Corona Extinction | 1.5 kV, Minimum |
