Brand: CommScope
|
SKU:
518732

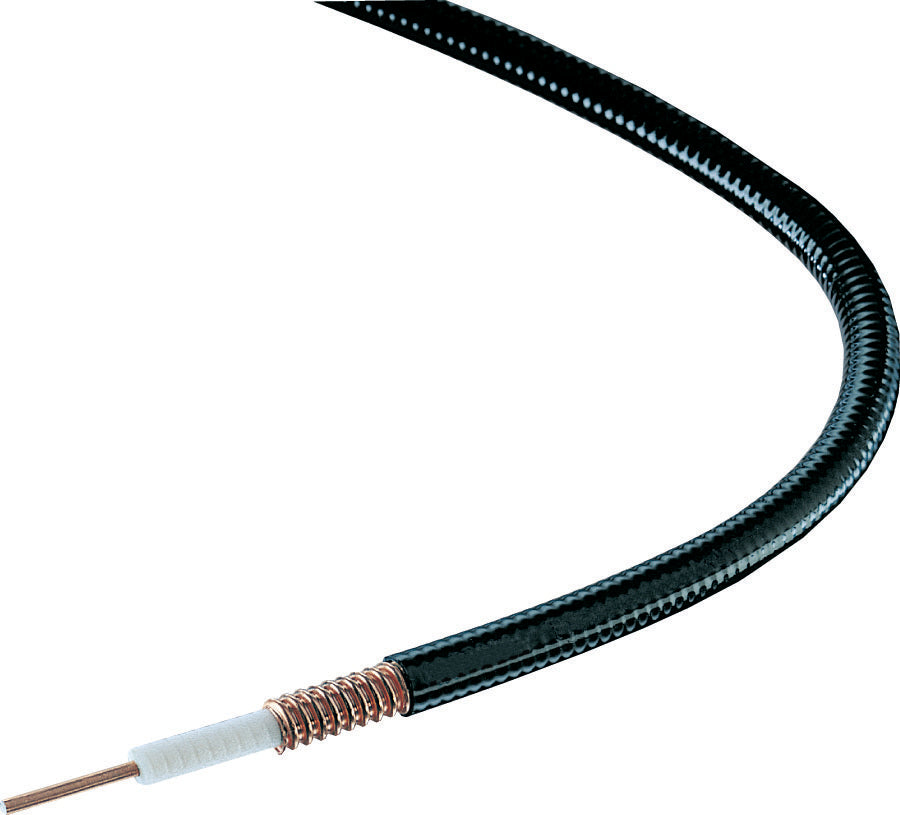

Commscope FSJ2-50 | FSJ2-50, HELIAX Superflexible Foam Coaxial Cable, corrugated copper, 3/8 in, black PE jacket
Regular price
$3.37
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Commscope FSJ2-50 | FSJ2-50, HELIAX Superflexible Foam Coaxial Cabl...
Regular price
$3.37
Unit price
Description
Description
Commscope FSJ2-50 | FSJ2-50, HELIAX Superflexible Foam Coaxial Cable, corrugated copper, 3/8 in, black PE jacket
Specifications
Specifications
Product Classification
| Product Type | Coaxial wireless cable |
|---|---|
| Product Brand | HELIAX / SureFlex |
| Product Series | FSJ2-50 |
General Specifications
| Flexibility | Superflexible |
|---|---|
| Jacket Color | Black |
Dimensions
| Diameter Over Dielectric | 7.112 mm / 0.28 in |
|---|---|
| Diameter Over Jacket | 10.541 mm / 0.415 in |
| Inner Conductor OD | 2.794 mm / 0.11 in |
| Outer Conductor OD | 9.652 mm / 0.38 in |
| Nominal Size | 3/8 in |
Electrical Specifications
| Cable Impedance | 50 ohm ±1 ohm |
|---|---|
| Capacitance | 79.7 pF/m / 24.293 pF/ft |
| dc Resistance, Inner Conductor | 4.232 ohms/km / 1.29 ohms/kft |
| dc Resistance, Outer Conductor | 4.987 ohms/km / 1.52 ohms/kft |
| dc Test Voltage | 2300 V |
| Inductance | 0.2 µH/m / 0.061 µH/ft |
| Insulation Resistance | 100000 MOhms-km |
| Jacket Spark Test Voltage (rms) | 4000 V |
| Operating Frequency Band | 1 – 13400 MHz |
| Peak Power | 13.2 kW |
| Velocity | 0.83 |
Material Specifications
| Dielectric Material | Foam PE |
|---|---|
| Jacket Material | PE |
| Inner Conductor Material | Copper-clad aluminum wire |
| Outer Conductor Material | Corrugated copper |
Mechanical Specifications
| Minimum Bend Radius, multiple Bends | 25.4 mm / 1 in |
|---|---|
| Minimum Bend Radius, Single Bend | 25.4 mm / 1 in |
| Number of Bends, minimum | 20 |
| Number of Bends, typical | 50 |
| Tensile Strength | 95 kg / 209.439 lb |
| Bending Moment | 2.3 N-m / 20.357 in lb |
| Flat Plate Crush Strength | 1.8 kg/mm / 100.795 lb/in |
Environmental Specifications
| Installation temperature | -40 °C to +60 °C (-40 °F to +140 °F) |
|---|---|
| Operating Temperature | -55 °C to +85 °C (-67 °F to +185 °F) |
| Storage Temperature | -70 °C to +85 °C (-94 °F to +185 °F) |
| Attenuation, Ambient Temperature | 20 °C / 68 °F |
| Average Power, Ambient Temperature | 40 °C / 104 °F |
| Average Power, Inner Conductor Temperature | 100 °C / 212 °F |
Packaging and Weights
| Cable weight | 0.12 kg/m / 0.081 lb/ft |
|---|
Regulatory Compliance/Certifications
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
|---|---|
| ROHS | Compliant |
| CHINA-ROHS | Below maximum concentration value |
