Atlas Sound RCK-18 | Caster Kit for 18 inch deep 100 & 200 Series Racks
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Atlas Sound RCK-18 | Caster Kit for 18 inch deep 100 & 200 Seri...
Description
Description

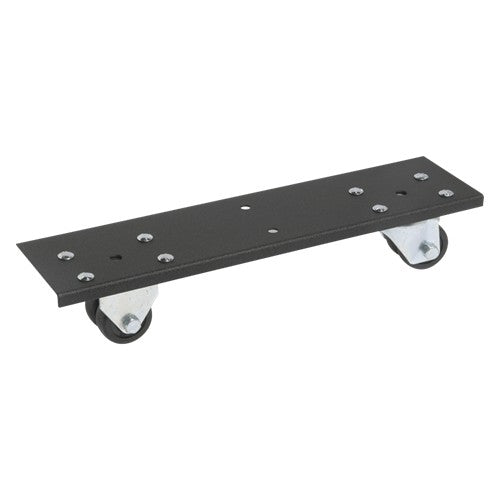

This caster kit is comprised of four, non-locking, 2 5/8" Dia. casters, and two, easy-to-install, mounting/support brackets. This Model accommodates the 18.5" deep 100/200 Series cabinets.
The heavy-duty, 14-gauge CRS mounting/support brackets are 4" wide and are designed to be affixed beneath the cabinet’s bottom panel for front-to-back reinforcement. Brackets are .075" thick and feature two 1/2" downward flange on the inner edge, which provides additional structural support to the cabinet bottom.
The zinc-plated swivel casters, which have an overall height of 3.75", feature 2 5/8" hard rubber tread wheels. Supports a load capacity of up to 1000 lbs.
Brackets and casters mount directly to cabinets using supplied hardware. When in place, increases the cabinet’s overall height by 1.75". Brackets are finished in black.
Atlas Sound - RCK-18 - Features
- 1000 Lb. Load Capacity Allows Maximum Equipment Installation
- Caster Kits Allow Racks to be Ganged Together
- Heavy-Duty Casters Enable "Easy-Roll" Movement
- Provide Mobility for Atlas Sound 19" Wide x 18 1/2" Deep Cabinets
Specifications
Specifications
Atlas Sound - RCK-18 - Product Categories
- Shop by Manufacturer/Atlas Sound
- Racks, Cabinets and Enclosures
- Rack, Cabinet and Enclosure Accessories
- Mounting Rails and Panels
- Racks and Cabinets
- Accessories
- Caster Kits
Atlas Sound - RCK-18 - Related Products
- 121-18 - Stand-Alone Floor Rack with Fixed Rails 18.5 inch Deep, 21RU
- 121-18 - Stand-Alone Floor Rack with Fixed Rails 18.5 inch Deep, 24RU
- 221-18 - Welded Rack 18.5 inch Deep, 21RU **Shown with OPTIONAL Front Door**
- 224-18 - Welded Rack 18.5 inch Deep, 24RU **Shown with OPTIONAL Front Door**
Atlas Sound - RCK-18 - Specifications
| Height | 3 3/4" (9.525 cm) |
|---|---|
| Width | 4" (10.16 cm) |
| Depth | 18 1/2" (46.99 cm) |
| Mounts | 18" Deep 100 & 200 |
| Shipping Weight | 12.35 lbs (5.60 kgs) |
| UNSPSC Code | 24102001 |
