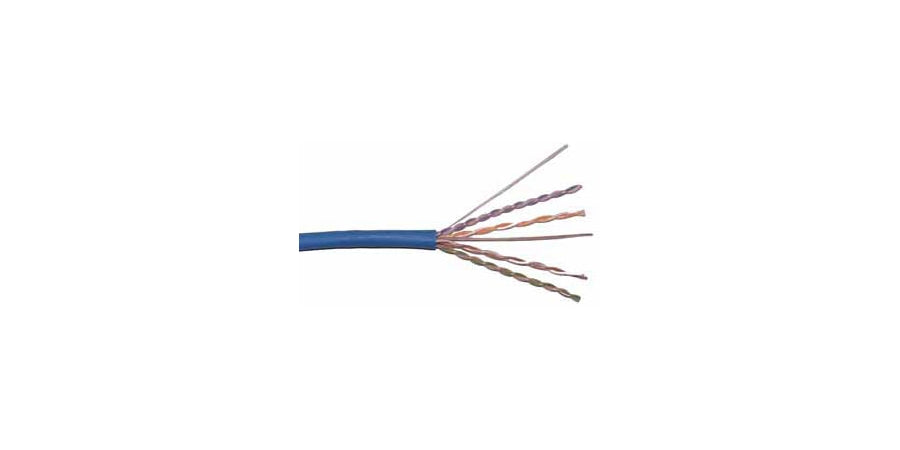

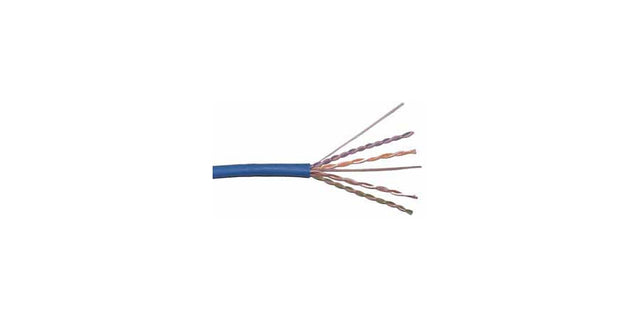

Siemon Company 9C6P4-E3-02-RXA | UTP Cable, 4 Pair, 23AWG, CMP, U/U...
Description
Description
Siemon offers multiple levels of system performance based on our high-performancecategory 6 UTP connectivity, including System 6 UTP cable with exceptional margin on allparameters that exceeds ISO/IEC and TIA connecting hardware and channel performancespecifications. The result is a system with superior electrical performance for optimumapplications support. Available in Plenum and Riser with reverse sequential numberingand a minimal center isolation member for reduced overall diameter.
Specifications
Specifications
Siemon Company - 9C6P4-E3-02-RXA - Product Categories
- Network Cabling Infrastructure
- Copper Cabling Infrastructure
- Copper Data Cable
- Cat 6 Cable
Siemon Company - 9C6P4-E3-02-RXA - Specifications
| Manufacturer Name | Siemon Company |
|---|---|
| Manufacturer Part Number | 9C6P4-E3-02-RXA |
| Bend Radius | 1 In. |
| Item Description | UTP Cable, 4 Pair, 23AWG, CMP, U/UTP - Unshielded Twisted Pair, White |
| Cable Type | Utp Network, Horizontal |
| Capacitance | 5.6 Nf/100M |
| Category/Level | Category 6 |
| Conductor Count | 4 Pair |
| Conductor Material | Bare Copper |
| Conductor Size | 23 Awg |
| Conductor Type | Solid |
| Fire Rating | Cmp |
| Frequency | 520Mhz |
| Impedance | 100 Ohm |
| Insulation Material | Fluorinated Ethylene Propylene |
| Jacket Color | White |
| Jacket Material | Pvc, Ls |
| Jacket Rating | Cmp |
| Length | 1000 Ft. |
| Nominal Jacket Od | 0.225 In. |
| Operating Temperature | -4 To +140°F (-20 To +60°C) |
| Outside Diameter | 0.23 In. |
| Package Type | Reelex |
| Pair Count | 4 Pair |
| Plenum | Plenum |
| Product Type | Utp Cable |
| Pulling Tension | 25 Lb. |
| Resistance | ≪9.38 Ohm/100M |
| Shielded | U/Utp - Unshielded Twisted Pair |
| Temperature Rating | -20 To 60 Deg C |
| Type | Data |
