Brand: CommScope
|
SKU:
CM-10024MAX-3U-06

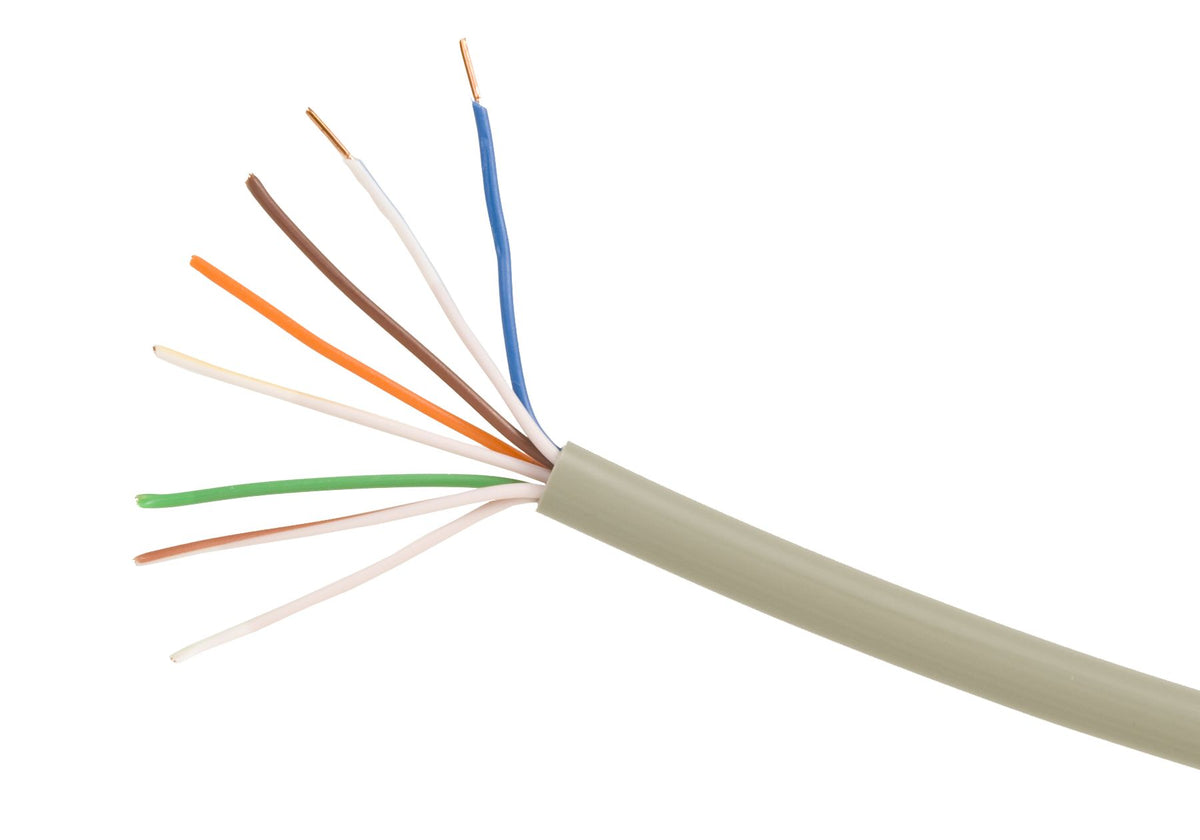

Commscope 1010A BL 4/24 W1000 | 1010A Category 3 U/UTP Cable, non-plenum, blue jacket, 4 pair count, 1000 ft (305 m) length, WE TOTE box
Regular price
$1.65
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Commscope 1010A BL 4/24 W1000 | 1010A Category 3 U/UTP Cable, non-p...
Regular price
$1.65
Unit price
Brand: CommScope
|
SKU:
CM-10024MAX-3U-06
Regular price
$1.65
Unit price
Shipping calculated at checkout.
Description
Description
Commscope 1010A BL 4/24 W1000 | 1010A Category 3 U/UTP Cable, non-plenum, blue jacket, 4 pair count, 1000 ft (305 m) length, WE TOTE box
Specifications
Specifications
Product Classification
| Regional Availability | Asia / Australia/New Zealand / EMEA / Latin America / North America |
|---|---|
| Portfolio | CommScope |
| Product Type | Twisted pair cable |
General Specifications
| Product Number | 1010A |
|---|---|
| ANSI/TIA Category | 3 |
| Cable Component Type | Horizontal |
| Cable Type | U/UTP (unshielded) |
| Conductor Type, singles | Solid |
| Conductors, quantity | 8 |
| Jacket Color | Blue |
| Pairs, quantity | 4 |
| Transmission Standards | ANSI/TIA-568.2-D |
Dimensions
| Cable Length | 304.8 m / 1000 ft |
|---|---|
| Diameter Over Jacket, nominal | 4.547 mm / 0.179 in |
| Jacket Thickness | 0.508 mm / 0.02 in |
| Conductor Gauge, singles | 24 AWG |
Electrical Specifications
| Characteristic Impedance | 100 ohm |
|---|---|
| Characteristic Impedance Tolerance | ±15 ohm |
| dc Resistance Unbalance, maximum | 0.05 |
| dc Resistance, maximum | 9.38 ohms/100 m / 2.859 ohms/100 ft |
| Mutual Capacitance at Frequency | 6.6 nF/100 m |
| 1 kHz | Operating Frequency, maximum |
| 16 MHz | Operating Voltage, maximum |
| 80 V | Safety Voltage Rating |
Material Specifications
| Conductor Material | Bare copper |
|---|---|
| Insulation Material | Polyolefin |
| Jacket Material | PVC |
Mechanical Specifications
| Pulling Tension, maximum | 11.34 kg / 25 lb |
|---|
Environmental Specifications
| Installation temperature | 0 °C to +60 °C (+32 °F to +140 °F) |
|---|---|
| Operating Temperature | -20 °C to +60 °C (-4 °F to +140 °F) |
| Environmental Space | Non-plenum |
| Flame Test Method | CMR |
Packaging and Weights
| Cable weight | 28.424 kg/km / 19.1 lb/kft |
|---|---|
| Packaging Type | WE TOTE box |
Regulatory Compliance/Certifications
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
|---|
