Description
Description

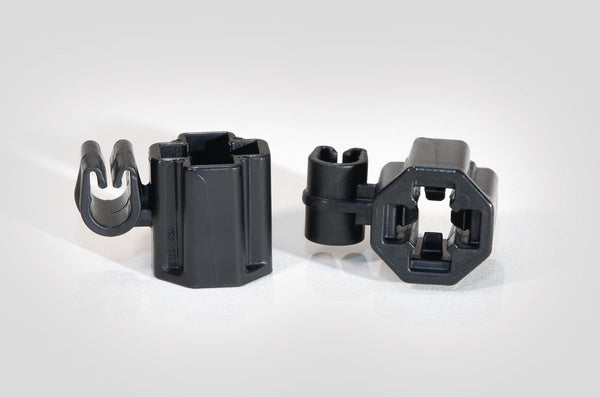

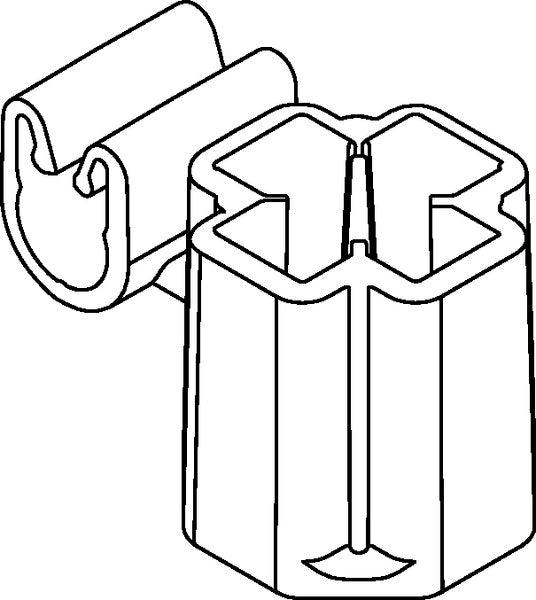

133-03179 These clips can be attached to the stud prior to installing the pipe or hose. The parts prefixed with an ’I’ can be interlocked together giving a greater choice of installation options or mounted onto a 5 mm ’T’ stud or the IAHC type of Autom atic Harness Clips.
These clips can be attached to the stud prior to installing the pipe or hose. The parts prefixed with an 'I' can be interlocked together giving a greater choice of installation options or mounted onto a 5 mm 'T' stud or the IAHC type of Automatic Harness Clips.
About HellermannTyton: HellermannTyton is a global manufacturer of cable management and identification solutions for automotive, solar, electrical, construction, industrial automation, broadband and other OEM markets. The company's integrated approach to product design, sustainability, production, quality assurance and delivery is optimized to benefit local and global customers. HellermannTyton operates in 39 countries, with North American headquarters in Milwaukee, Wisconsin.
HellermannTyton - 133-03179 - Features
- These clips can be attached to the stud prior to installing the pipe or hose. The parts prefixed with an ’I’ can be interlocked together giving a greater choice of installation options or mounted onto a 5 mm ’T’ stud or the IAHC type of Automatic Harne ss Clips.
- Triple pipe clip secures three routings together while keeping them separated, to prevent chafing or heat transfer
- Inverted retaining legs and narrow opening prevent inadvertent disengagement of pipe
- Controlled flex and angled entry promote easy pipe installation
Specifications
Specifications
HellermannTyton - 133-03179 - Product Categories
- OEM
- Cable Management and Electrical
- Cable Management
- Bundling & Securing
- Clips
- Tube and Pipe Clips
HellermannTyton - 133-03179 - Specifications
| Brand Name | HellermannTyton |
|---|---|
| Approvals | None |
| Category | Clips And Clamps |
| Color | Black |
| Rohs Compliant | Yes |
| Type | Clip Assembly |
| UNSPSC Code | 39121700 |
HellermannTyton - 133-03179 - Base Data
| Article Number | 133-03179 |
|---|---|
| Type | PC5SM6 |
| Color | Black (BK) |
| Quantity Per | carton |
| Short Description | Tube and Pipe Clip with 5mm/6mm Stud Mount, 4.7-5.1mm Diameter, PA66HIRHSUV, Black, 5000/carton |
| Global Part Name | PC5SM6-PA66HIRHSUV-BK |

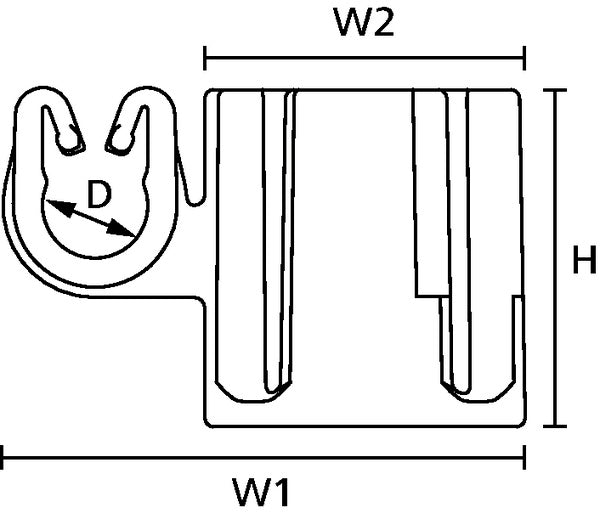

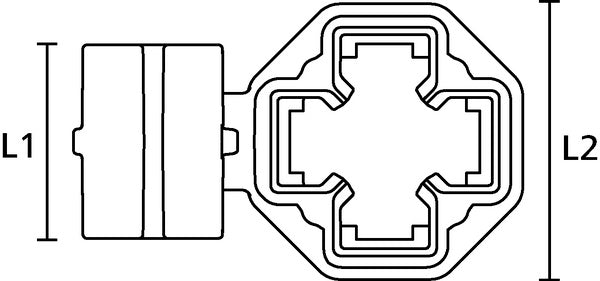

HellermannTyton - 133-03179 - Product Dimensions
| Length L (Imperial) | 0.39 |
|---|---|
| Length L (Metric) | 10 |
| Fixation Method | Stud Mount |
| Width W (Imperial) | 0.58 |
| Width W (Metric) | 14.73 |
| Height H (Imperial) | 0.59 |
| Height H (Metric) | 15.1 |
| Nominal Diameter (Metric) | 4.7 |
| Mounting Hole Diameter D (Metric) | M6 |
| Stud Diameter (Metric) | M6 |
HellermannTyton - 133-03179 - Logistic & Packaging
| Package Quantity (Imperial) | 5000 |
|---|---|
| Package Quantity (Metric) | 2000 |
| Customs Number | 3.93E+09 |
HellermannTyton - 133-03179 - Materials & Specifications
| Material | Polyamide 6.6 high impact modified, heat and UV stabilized (PA66HIRHSUV) |
|---|---|
| Material Shortcut | PA66HIRHSUV |
| Flammability | UL 94 HB |
| UV Resistant (Yes/No) | Yes |
| Operating Temperature | -40°F to +230°F (-40°C to +110°C) |
| Reach Compliant (Article 33) | No |
| ROHS Compliant | Yes |
