Brand: CommScope
|
SKU:
CA-NMSM

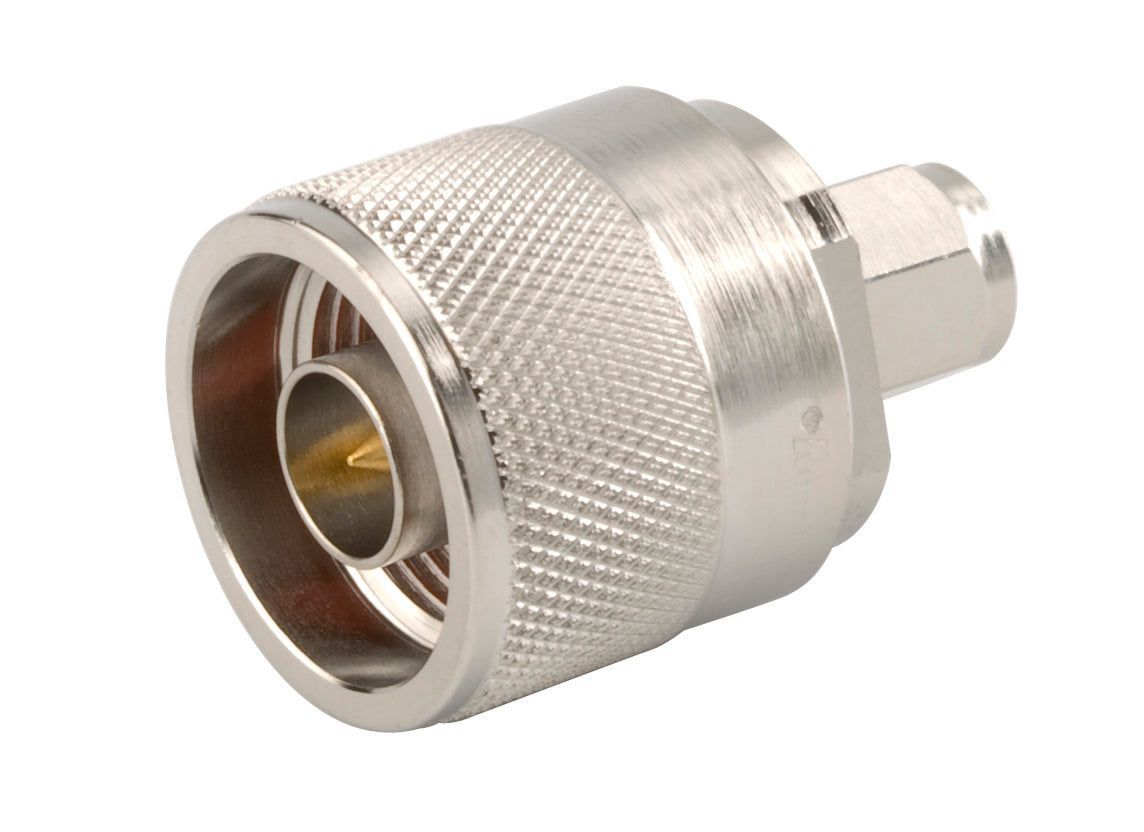

Commscope CA-NMSM | Type N Male to SMA Male Adapter
Regular price
$30.85
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Commscope CA-NMSM | Type N Male to SMA Male Adapter
Regular price
$30.85
Unit price
Description
Description
Type N Male to SMA Male Adapter
Specifications
Specifications
Product Classification
| Product Type | Adapter |
|---|
General Specifications
| Body Style | Straight |
|---|---|
| Inner Contact Plating | Gold |
| Interface | N Male |
| Interface 2 | SMA Male |
| Mounting Angle | Straight |
| Outer Contact Plating | Trimetal |
Dimensions
| Width | 20.24 mm | 0.797 in |
|---|---|
| Length | 29.16 mm | 1.148 in |
| Diameter | 20.24 mm | 0.797 in |
Electrical Specifications
| Average Power at Frequency | 100.0 W @ 900 MHz |
|---|---|
| Connector Impedance | 50 ohm |
| dc Test Voltage | 1000 V |
| Inner Contact Resistance, maximum | 3 mOhm |
| Insulation Resistance, minimum | 5000 mOhm |
| Operating Frequency Band | 0 – 6000 MHz |
| Outer Contact Resistance, maximum | 2.5 mOhm |
| Peak Power, maximum | 5 kW |
| RF Operating Voltage, maximum (vrms) | 500 V |
Mechanical Specifications
| Coupling Nut Proof Torque | 1.7 N-m | 15.046 in lb |
|---|---|
| Coupling Nut Proof Torque Method | IEC 61169-16:9.3.6 |
| Coupling Nut Retention Force | 180 N | 40.466 lbf |
| Coupling Nut Retention Force Method | IEC 61169-15:9.3.11 |
| Insertion Force | 28 N | 6.295 lbf |
Environmental Specifications
| Operating Temperature | -55 °C to +85 °C (-67 °F to +185 °F) |
|---|---|
| Storage Temperature | -65 °C to +125 °C (-85 °F to +257 °F) |
| Attenuation, Ambient Temperature | 20 °C | 68 °F |
