Brand: CommScope
|
SKU:
965846

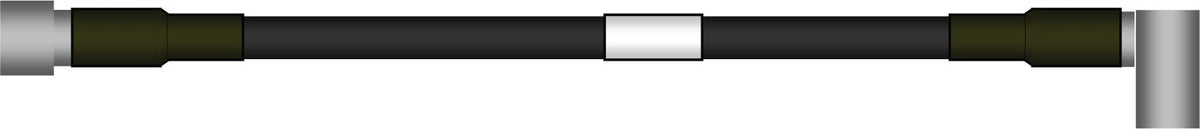

Commscope F4A-HMDR-4M-P | HELIAX 1/2" Superflexible SureFlex Jumper with interface types 4.3-10 male and 7-16 DIN rightangle male, 4 m
Regular price
$45.69
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Commscope F4A-HMDR-4M-P | HELIAX 1/2" Superflexible SureFlex J...
Regular price
$45.69
Unit price
Description
Description
HELIAX 1/2" Superflexible SureFlex Jumper with interface types 4.3-10 male and 7-16 DIN right angle male, 4 m
Specifications
Specifications
Product Classification
| Product Type | SureFlex Premium, static PIM |
|---|
General Specifications
| Body Style, Connector A | Straight |
|---|---|
| Body Style, Connector B | Right angle |
| Interface, Connector A | 4.3-10 Male |
| Interface, Connector B | 7-16 DIN Male |
| Specification Sheet Revision Level | B |
Dimensions
| Length | 4 m | 13.123 ft |
|---|---|
| Nominal Size | 1/2 in |
Electrical Specifications
| 3rd Order IMD Static | -116 dBm |
|---|---|
| 3rd Order IMD Static Test Method | Two +43 dBm carriers |
| DTF, Connector A | -34 dB |
| DTF, Connector B | -32 dB |
Environmental Specifications
| Immersion Test Method | Meets IEC 60529:2001, IP68 in mated condition |
|---|
Regulatory Compliance/Certifications
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
|---|---|
| ROHS | Compliant/Exempted |
| CHINA-ROHS | Above maximum concentration value |
