Brand: Alpha Wire
|
SKU:
A9316

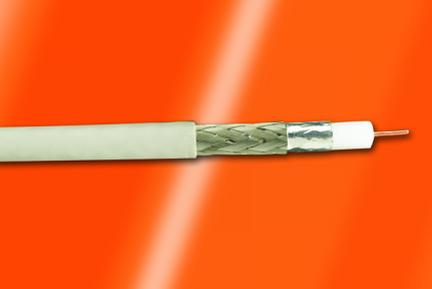

Alpha Wire 9316 BR001 | RG316 25-1C STR SCW TFE 94% SPC BRD SHD FEP JKT NAT 50 OHM
Regular price
$4.48
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Alpha Wire 9316 BR001 | RG316 25-1C STR SCW TFE 94% SPC BRD SHD FEP...
Regular price
$4.48
Unit price
Description
Description
Coaxial Cable 25 AWG RG-316 1000.0' (304.80m) 50 Ohms
Specifications
Specifications
Specifications
| Component 1 | 1 X 1 COAX |
|---|---|
| Conductor | 25 (7/.0067) AWG SCW |
| Insulation | 0.020" Wall, Nom. PTFE |
| Shield | SPC BRAID Shield,94% Coverage, Min. |
| Jacket | 0.010" Wall, Nom.,FEP |
| Color(s) | NATURAL TAN |
| ALPHA WIRE-* P/N 9316 MIL-DTL-17 M17/113-RG 316 12814 E346462 1C 26AWG SHIELDED 200C (UL) C(UL) CMG FT4 OR AWM1971 150C 125V CE ROHS* = Factory Code[Note: Product may have c(UL) or CSA markings depending upon plant of manufacture.] | |
| CE: EU Directive 2011/65/EU(RoHS2): | This product complies with European Directive 2011/65/EU (RoHS Directive) of the European Parliament and of the Council of 8 June 2011. No Exemptions are required for RoHS Compliance on this item. Consult Alpha Wire's web site for RoHS C of C. |
| REACH Regulation (EC 1907/2006): | This product does not contain Substances of Very High Concern (SVHC) listed on the European Union's REACH candidate list in excess of 0.1% mass of the item. For up-to-date information, please see Alpha's REACH SVHC Declaration. |
| California Proposition 65: | The outer surface materials used in the manufacture of this part meet the requirements of California Proposition 65. |
| Packaging | Flange x Traverse x Barrel (inches) |
| Temperature Range | -55 to 200°C |
| Bend Radius | 10X Cable Diameter |
| Pull Tension | 2.11 Lbs, Maximum |
| Voltage Rating | 900 VRMS |
| Ground Capacitance | 29.3 pf/ft @1 kHz, Nominal |
| Velocity of Propagation | 70 % |
| Conductor DCR | 85.8 ?/1000ft @20°C, Nominal |
| OA Shield DCR | 8.5 ?/1000ft @20°C, Nominal |
| Voltage Withstanding | 2 kV, Minimum |
| Corona Extinction | 1.2 kV, Minimum |
