Commscope TA-DFDR | 7-16 DIN Female to 7-16 DIN Male Right Angle Low-PIM Adapter
Regular price
$65.66
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Commscope TA-DFDR | 7-16 DIN Female to 7-16 DIN Male Right Angle Lo...
Regular price
$65.66
Unit price
Description
Description

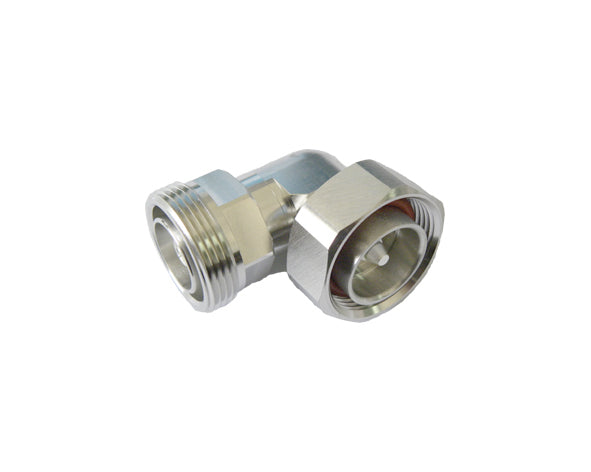

Commscope TA-DFDR | 7-16 DIN Female to 7-16 DIN Male Right Angle Low-PIM Adapter
Specifications
Specifications
Outline Drawing
| Click on image to enlarge. |
|---|
Product Classification
| Product Type | Adapter |
|---|
General Specifications
| Body Style | Right angle |
|---|---|
| Inner Contact Plating | Silver |
| Interface | 7-16 DIN Female |
| Interface 2 | 7-16 DIN Male |
| Outer Contact Plating | Trimetal |
| Pressurizable | No |
Dimensions
| Width | 31.75 mm / 1.25 in |
|---|---|
| Length | 53 mm / 2.087 in |
| Diameter | 31.75 mm / 1.25 in |
Electrical Specifications
| 3rd Order IMD at Frequency | -163 dBc/1800 MHz |
|---|---|
| 3rd Order IMD Test Method | Two +43 dBm carriers |
| Average Power at Frequency | 1,300.0 W/900 MHz |
| Connector Impedance | 50 ohm |
| dc Test Voltage | 4000 V |
| Inner Contact Resistance, maximum | 0.4 mOhm |
| Insulation Resistance, minimum | 10000 mOhm |
| Operating Frequency Band | 0 – 6000 MHz |
| Outer Contact Resistance, maximum | 1.5 mOhm |
| Peak Power, maximum | 28.8 kW |
| RF Operating Voltage, maximum (vrms) | 1200 V |
Mechanical Specifications
| Coupling Nut Proof Torque | 50 N-m / 442.537 in lb |
|---|---|
| Coupling Nut Proof Torque Method | IEC 61169-4:17 |
| Coupling Nut Retention Force | 800 N / 179.847 lbf |
| Coupling Nut Retention Force Method | IEC 61169-4:15.2.6 |
| Insertion Force | 200 N / 44.962 lbf |
| Interface Durability | 500 cycles |
| Interface Durability Method | IEC 61169-4:17 |
| Mechanical Shock Test Method | IEC 60068-2-27 |
Environmental Specifications
| Operating Temperature | -40 °C to +85 °C (-40 °F to +185 °F) |
|---|---|
| Storage Temperature | -65 °C to +125 °C (-85 °F to +257 °F) |
| Climatic Sequence Test Method | IEC 60068-1 |
| Corrosion Test Method | IEC 60068-2-11 |
| Damp Heat Steady State Test Method | IEC 60068-2-3 |
| Thermal Shock Test Method | IEC 60068-2-14 |
| Vibration Test Method | IEC 60068-2-6 |
Packaging and Weights
| Weight, net | 171 g / 0.377 lb |
|---|
Regulatory Compliance/Certifications
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
|---|---|
| ROHS | Compliant |
| CHINA-ROHS | Below maximum concentration value |
| REACH-SVHC | Compliant as per SVHC revision on www.commscope.com/ProductCompliance |
