Northern Video HDGLC | Video Ground Loop Corrector, 600 Volt Dc, 2.4" Width X 0.9" Depth X 1.2" Height, 100 Milli Ohm Resistance, 0 To 3 Db At 10 Megahertz, Bnc Male To Bnc Female
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Northern Video HDGLC | Video Ground Loop Corrector, 600 Volt Dc, 2....
Description
Description
Categorized under - Shop by Manufacturer/Northern Video | Communications | Coaxial Cabling Infrastructure | Coaxial Connectors

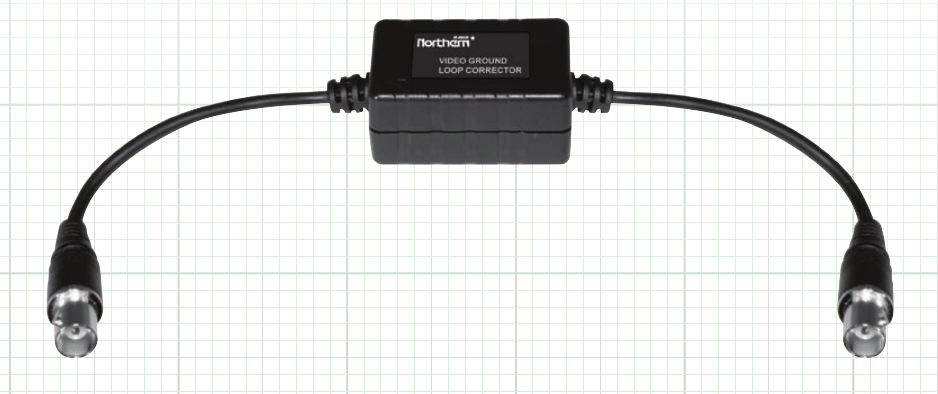

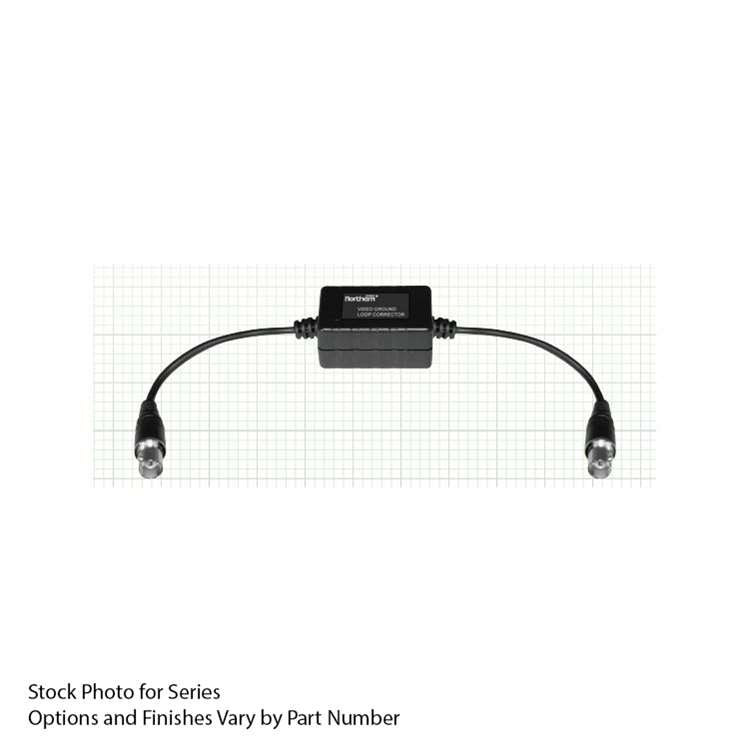

Video Ground Loop Corrector
This Video Ground Loop Corrector reduces Ground Loop Interference with TVI, CVI, AHD & 960H Analog signals. It is easy to install in new or existing systems and useful where a video signal is transmitted via cable between points with different ground potentials.
This Video Ground Loop Corrector reduces Ground Loop Interference with TVI, CVI, AHD & 960H Analog signals. It is easy to install in new or existing systems and useful where a video signal is transmitted via cable between points with different ground potentials.
Northern Video - HDGLC - Features
- BNC Male to BNC Female Connections
- 12V rms Transient Voltage Supressor
- 600VDC Isolation Voltage
- BNC Male to BNC Female Connections
- It is Easy to Install in New or Existing Systems and Useful Where a Video Signal is Transmitted Via Cable Between Points with Different Ground Potentials
- BNC Male to BNC Female Connections
- 12V rms Transient Voltage Supressor
- 600VDC Isolation Voltage
Specifications
Specifications
Northern Video - HDGLC - Specifications
| Insertion Loss | 0.5dB |
|---|---|
| Frequency Response | 0-3dB at 10Mhz |
| Connections | BNC male to BNC Female |
| Isolation Voltage | 600VDC (Min.) |
| Insulation resistance | 100M ohm |
| Transient Voltage Suppressors | 12V rms |

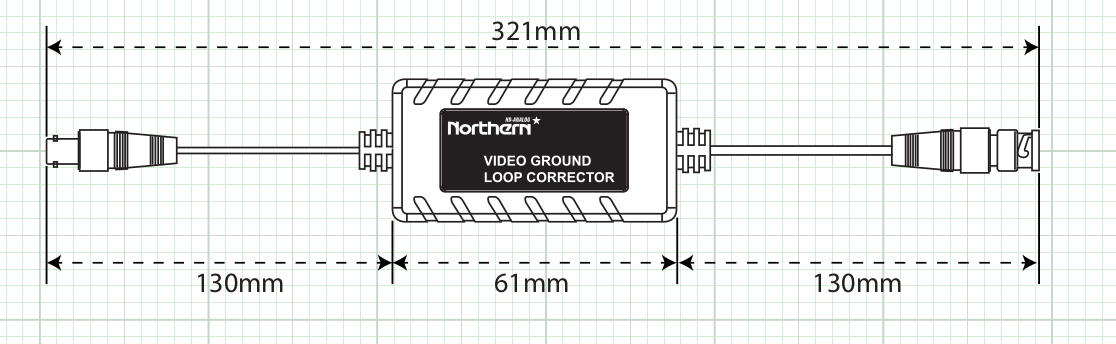

| Dimensions (W/H/D) | 2.4" x 1.2" x 0.9" (Body Only) |
| Weight | 1.7 oz |
| UNSPSC Code | 39121414 |
