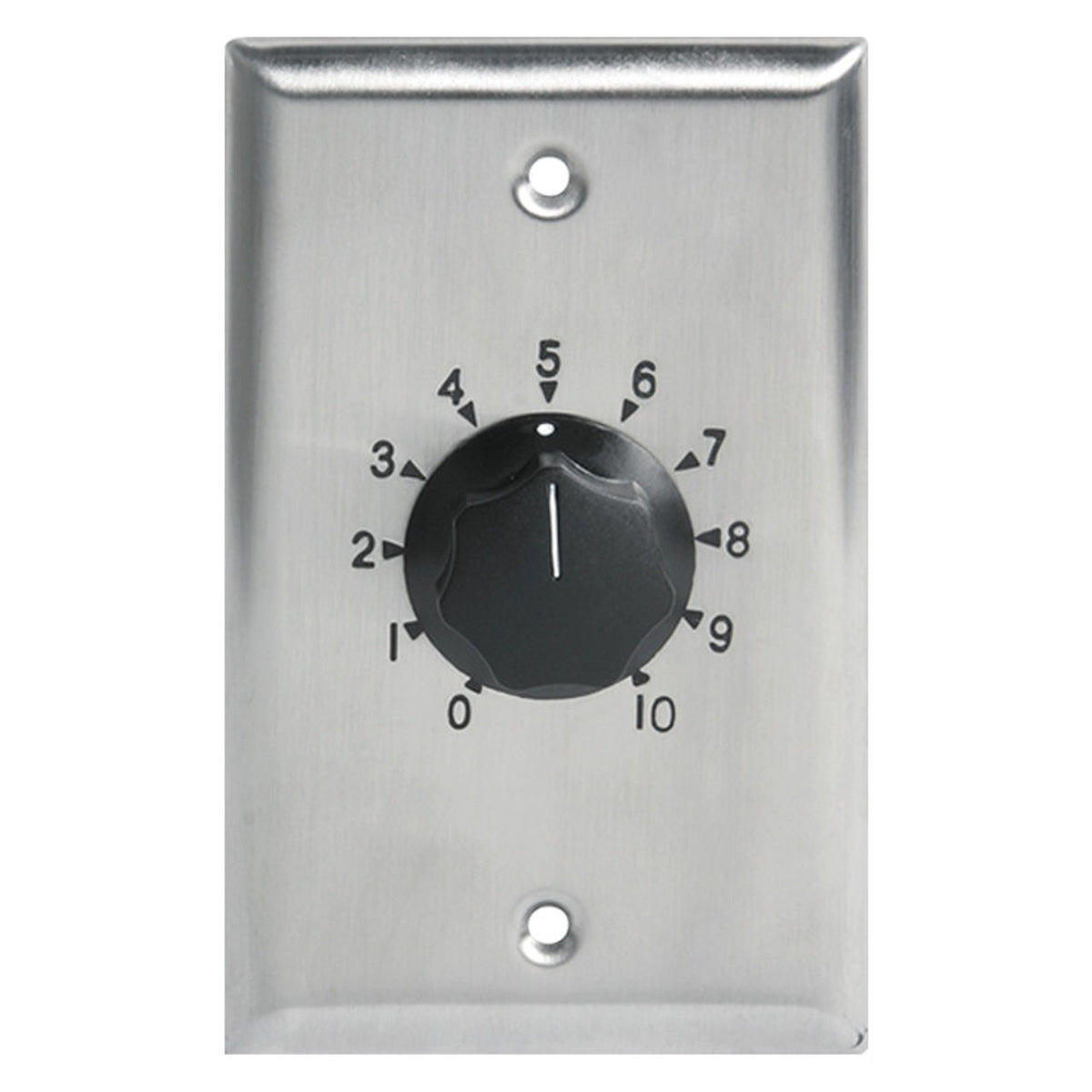

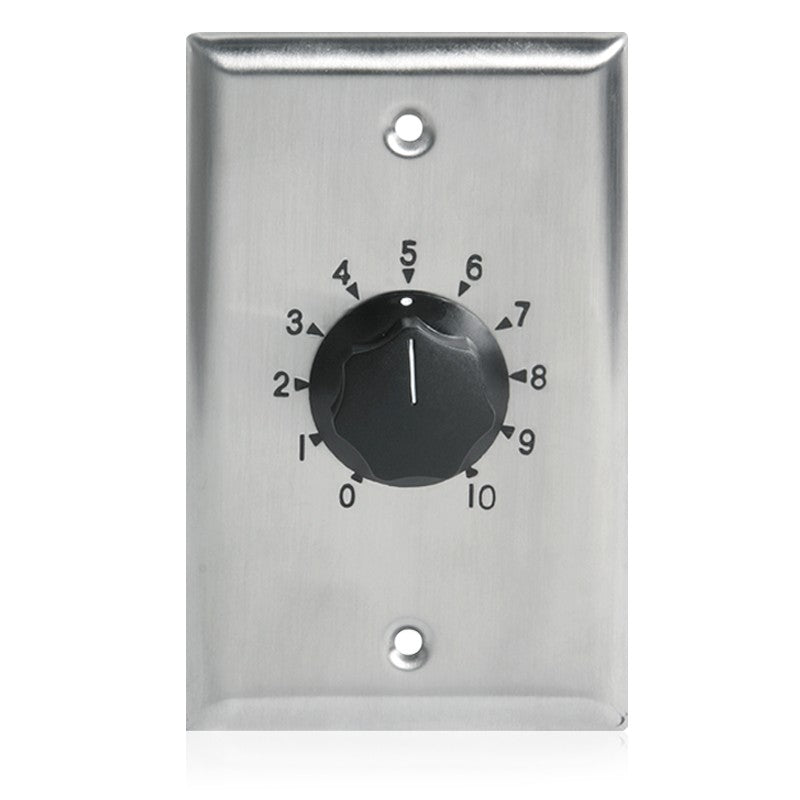

Atlas Sound AT35 | 35 Watt Single Gang Stainless Steel 70.7V Commercial Attenuator
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Atlas Sound AT35 | 35 Watt Single Gang Stainless Steel 70.7V Commer...
Description
Description
High-quality auto transformer series provides the advantages of excellent frequency response, low insertion loss and reliable performance for volume control application in 25 and 70.7-volt systems.
Attenuation is accomplished in ten make before break steps plus positive off position. (No stop between maximum and off position to prevent switch damage). Contacts are silver plated for noise-free operation.
Features a removable terminal block. Includes stainless steel plate, with stamped and filled or screen printed dial scale and a skirted black knob. (White and ivory plastic plates with matching skirted knobs also available in Decora style-see AT model description chart.)
Atlas Sound - AT35 - Features
- 10 Attenuation Steps Plus Positive Off
- Mount into Most 1-Gang E.O. Boxes
- Wall Plates are Stainless Steel with Stamped and Filled Dial Scale, and a Skirted Black Knob
- All models mount into most 1-gang E.O. boxes
- Superior frequency response
- Easy installation via removable "Phoenix" style four-pole connector
Specifications
Specifications
Atlas Sound - AT35 - Product Categories
- Shop by Manufacturer/Atlas Sound
- Audio and Visual
- Audio Equipment
- Other Audio Equipment
- Audio Accessories & Options
- Volume Controls
- Commercial
Atlas Sound - AT35 - Related Products
- AT35-PA - Deluxe Priority, Plate Mounted 35W Attenuator W/Priority Relay, 3dB Steps
- AT35-PA - Deluxe Priority, Rack Mounted 35W Attenuator W/Priority Relay, 3dB Steps
- AT35-RM - Deluxe, Rack Mounted 35W Attenuator, 3dB Steps
- AT35D - Deluxe Decora Plate Mounted 35W Attenuator, 3dB Steps
Atlas Sound - AT35 - Specifications
| Plate Size | 1 gang |
|---|---|
| Plate Type | Stainless Steel |
| Power Rating | 35W |
| Total Attenuation | 27dB |
| Height | 4 1/2" (11.43 cm) |
| Width | 2 3/4" (6.985 cm) |
| Depth | 2 1/8" (5.3975 cm) |
| Shipping Weight | 1.00 lb (0.45 kgs) |
| Safety Listed | 813, 2043 |
| UNSPSC Code | 52161600 |
