Brand: CommScope
|
SKU:
10318962

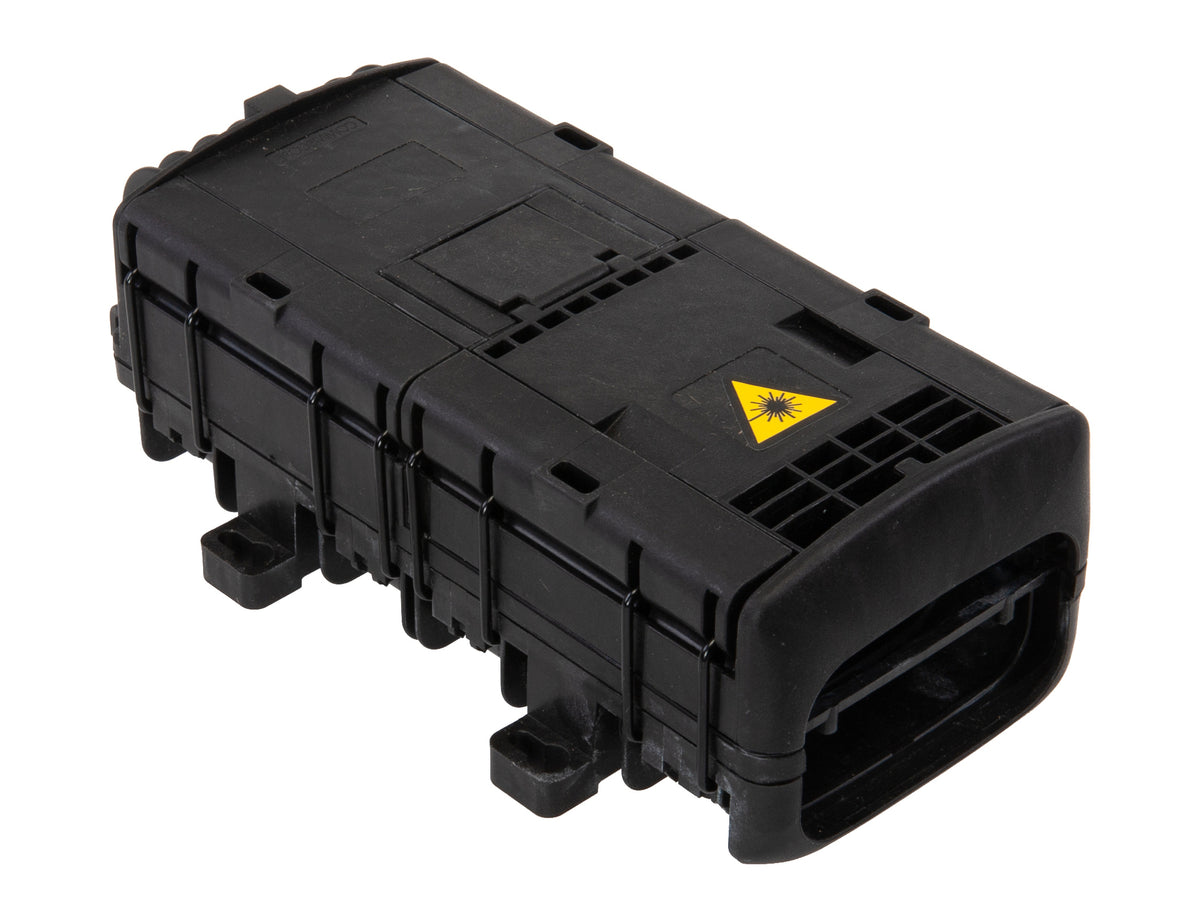

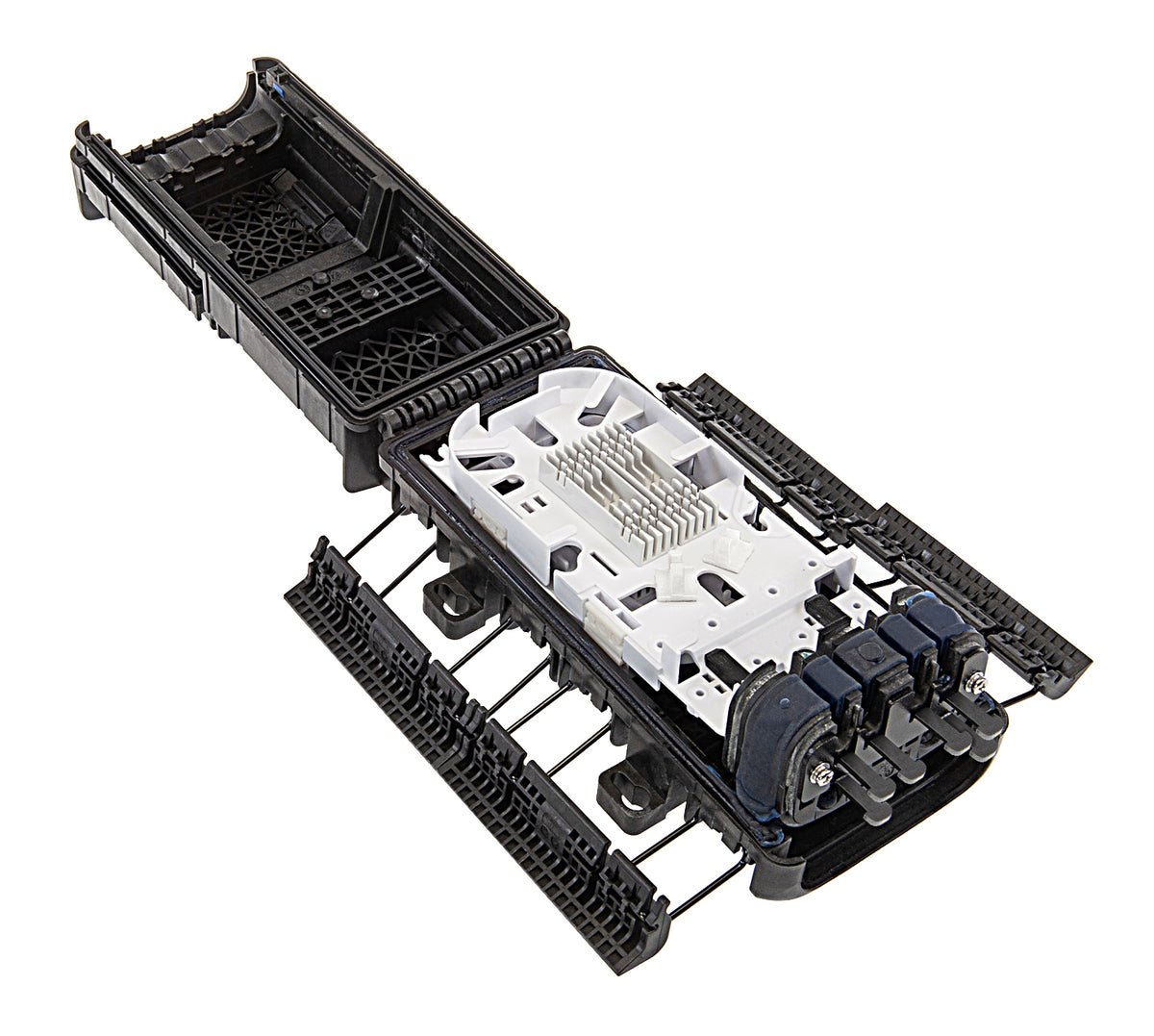

CommScope 760241442 | OFDC-A4 Fiber Optic Splice/Patch Closure, gel cable sealing, 2 pre-installed 12-fiber splice trays, no adapters, no splitter
Regular price
$77.56
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
CommScope 760241442 | OFDC-A4 Fiber Optic Splice/Patch Closure, gel...
Regular price
$77.56
Unit price
Description
Description
CommScope 760241442 | OFDC-A4 Fiber Optic Splice/Patch Closure, gel cable sealing, 2 pre-installed 12-fiber splice trays, no adapters, no splitter
Specifications
Specifications
CommScope - 760241442 - Product Categories
- Cabinets, Panels, Enclosures & Power
- Closures & Terminals
CommScope - 760241442 - General Specifications
| Brand Name | CommScope |
|---|---|
| Manufacturer Part Number | 760241442 | OFDC-A4-NN/00-NN-N-24 |
| Item Description | OFDC-A4 Fiber Optic Splice/Patch Closure, gel cable sealing, 2 pre-installed 12-fiber splice trays, no adapters, no splitter |
| Cable Capacity, Drop | 4 Flat 8.0 x 4.5 mm (0.30 x 0.17 in) | 4 Round 0–6.0 mm (0–0.23 in) | 8 Round 0–4.5 mm (0–0.17 in) |
| Cable Capacity, Feeder | 2 Round 4.5–12.0 mm (0.17–0.47 in) |
| Cable Ports Quantity, total | 2 round ports + 4 multi-out ports (8 cables) |
| Cable Sealing Type | Compressed gel |
| Closure Sealing Type | Hinged with latch |
| Closure Style | Single-ended |
| Color | Black |
| Mounting | Manhole | Pedestal | Strand | Wall |
| Port Type | No adapter |
| Splice Tray Included, quantity | 2 |
| Splice Tray Type Included | 12-way, heat shrink |
| Splicing Capacity, maximum | 24 |
| Splicing Type, Supported | Single fusion |
| Splitter Type | No splitter |
| Splitter, quantity | 0 |
CommScope - 760241442 - Product Classification
| Regional Availability | Asia | Australia/New Zealand | EMEA | Latin America | North America |
|---|---|
| Product Type | Single-ended, rectangular fiber closure |
| Product Series | OFDC |
CommScope - 760241442 - Physical Specifications
| Dimensions | - |
|---|---|
| Height | 70 mm | 2.756 in |
| Width | 94 mm | 3.701 in |
| Length | 211 mm | 8.307 in |
| Splice Protector Length, maximum | 45 mm | 1.772 in |
| Main Cable Diameter, maximum | 12 mm | 0.472 in |
| Material Specifications | - |
| Material Type | Rugged polymer |
| Environmental Specifications | - |
| Installation temperature | -5 °C to +45 °C (+23 °F to +113 °F) |
| Storage Temperature | -30 ºC to +60 ºC (-22 ºF to +140 ºF) |
| Relative Humidity | 93%, non-condensing |
| Environmental Space | Above ground | Below ground |
| Qualification Standards | IEC 60529, IP68 + 2 m waterhead |
| UV Resistance | UV stabilized |
| Packaging and Weights | - |
| Packaging quantity | 1 |
| Packaging Type | Box | Carton |
| Weight, net | 0.55 kg | 1.213 lb |
| Regulatory Compliance/Certifications | - |
| Agency | Classification |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| ROHS | Compliant |
| CHINA-ROHS | Below maximum concentration value |
