Commscope ATC200-LITE-USB | Portable Controller
Regular price
$340.17
Unit price
Brand: CommScope
|
SKU:
464693
Regular price
$340.17
Unit price
Description
Description
Commscope ATC200-LITE-USB | Portable Controller
Features and Benefits
- Carried from site to site for RET antenna setup and optimization
- Supports up to 32 RET actuators operating in AISG 1.1 or 2.0 modes
- LED display indicates the presence of input power, output power, and data communication
- Equipped with USB and serial connectors
- Power supply efficiency is Energy Star Level IV rated.
Specifications
Specifications
General Specifications
| AISG Output Connector | 8-pin DIN Female |
|---|---|
| AISG Output Connector Quantity | 1 |
| Auxiliary Interface | USB |
| Color | Gray / Yellow |
Dimensions
| Height | 50.8 mm / 2 in |
|---|---|
| Width | 127 mm / 5 in |
| Depth | 76.2 mm / 3 in |
Electrical Specifications
| Input Voltage | 110/240 Vac |
|---|---|
| Output Current at Voltage, continuous | 3.0 A @ 24 V |
| Output Current at Voltage, maximum | 3.0 A @ 24 V |
| Output Voltage, typical | 24 V |
| Electrical Safety Standard | CB / CE / IEC 60950-1 |
| Interface Protocol Signal | Data / dc |
| Power Supply | dc Jack |
| Protocol | AISG 1.1 / AISG 2.0 |
Material Specifications
| Material Type | Aluminum |
|---|
Environmental Specifications
| Operating Temperature | -40 °C to +55 °C (-40 °F to +131 °F) |
|---|---|
| Relative Humidity | Up to 95%, non-condensing |
Packaging and Weights

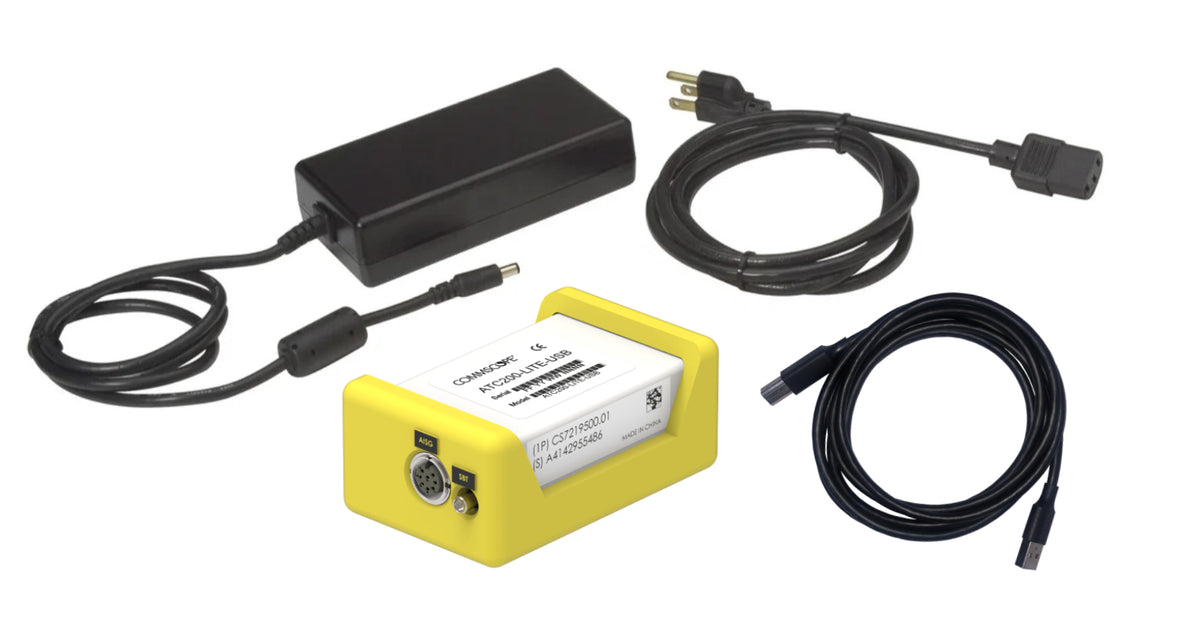

| Included | Control unit / Power supply / Site configuration worksheet / US adapter / USB cable |
|---|---|
| Weight, net | 0.4 kg / 0.882 lb |
Regulatory Compliance/Certifications
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
|---|---|
| ROHS | Compliant |
| CHINA-ROHS | Below maximum concentration value |
| REACH-SVHC | Compliant as per SVHC revision on www.commscope.com/ProductCompliance |
Documents and Downloads
Documents and Downloads
- Antenna Sharing Configuration Builder Tool
- Antenna Sharing Configuration using CommScope RET Controller Systems
- ATC200-LITE-USB Control System Overview
- ATC200-LITE-USB Product specifications
- Customer and Technical Support, Training, Software/Firmware, Repair Services
- ATCLite Software (requires Microsoft Windows 7 or higher)
- E-ATM300 Field Configuration Tool (required for managing E-ATM300 actuators using an ATC200-LITE-USB controller)
- CommScope Limited Product Warranty
