Brand: CommScope
|
SKU:
465427

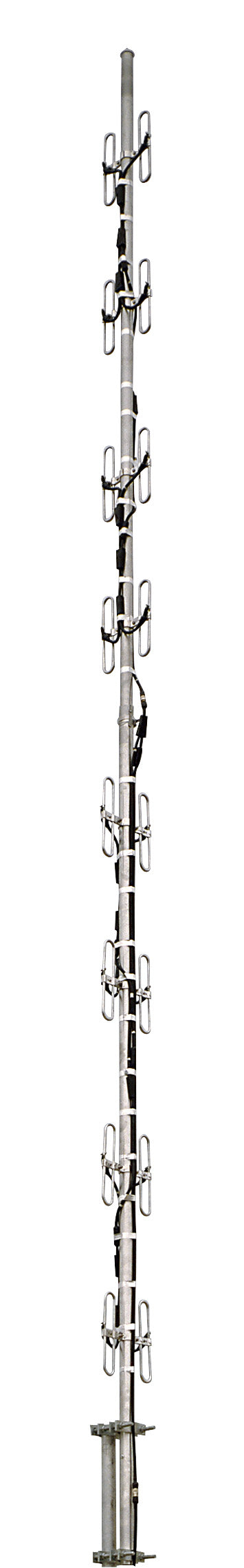

Commscope DB420-B | 1-port omni exposed dipole antenna, 450–470 MHz, 360° HPBW, fixed electrical tilt
Regular price
$5,533.57
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Commscope DB420-B | 1-port omni exposed dipole antenna, 450–470 MHz...
Regular price
$5,533.57
Unit price
Description
Description
Commscope DB420-B | 1-port omni exposed dipole antenna, 450–470 MHz, 360° HPBW, fixed electrical tilt
Features and Benefits
- Broad response
- Moisture resistant
- Rugged, reliable design
Specifications
Specifications
General Specifications
| Antenna Type | Omni |
|---|---|
| Band | Single band |
| Color | Silver |
| Grounding Type | RF connector inner conductor and body grounded to reflector and mounting bracket |
| Performance Note | Outdoor usage |
| Radiator Material | Aluminum |
| RF Connector Interface | N Male |
| RF Connector Location | End of flexible lead |
| RF Connector Quantity, low band | 1 |
| RF Connector Quantity, total | 1 |
Dimensions
| Length | 5918.2 mm / 233 in |
|---|
Electrical Specifications
| Impedance | 50 ohm |
|---|---|
| Operating Frequency Band | 450 – 470 MHz |
| Polarization | Vertical |
| >Spec Table Title< = Electrical Specifications | https://cdn.shopify.com/s/files/1/0843/1616/0235/files/specs.jpg?v=1786475215 |
| Frequency Band, MHz | 450–470 |
| Gain, dBi | 11.3 |
| Beamwidth, Horizontal, degrees | 360 |
| Beamwidth, Vertical, degrees | 7 |
| VSWR / Return loss, dB | 1.5 / 14.0 |
| Input Power per Port, maximum, watts | 250 |
Electrical Specifications
| Impedance | 50 ohm |
|---|---|
| Operating Frequency Band | 450 – 470 MHz |
| Polarization | Vertical |
| >Spec Table Title< = Electrical Specifications | https://cdn.shopify.com/s/files/1/0843/1616/0235/files/specs.jpg?v=1786475215 |
| Frequency Band, MHz | 450–470 |
| Gain, dBi | 11.3 |
| Beamwidth, Horizontal, degrees | 360 |
| Beamwidth, Vertical, degrees | 7 |
| VSWR / Return loss, dB | 1.5 / 14.0 |
| Input Power per Port, maximum, watts | 250 |
Mechanical Specifications
| Wind Loading at Velocity, maximum | 133.0 lbf @ 100 mph / 591.6 N @ 100 mph |
|---|---|
| Wind Speed, maximum | 161 km/h / 100.041 mph |
Packaging and Weights
| Net Weight, without mounting kit | 15.6 kg / 34.392 lb |
|---|
Regulatory Compliance/Certifications
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
|---|---|
| ROHS | Compliant |
| CHINA-ROHS | Below maximum concentration value |
| REACH-SVHC | Compliant as per SVHC revision on www.commscope.com/ProductCompliance |
Documents and Downloads
Documents and Downloads
- Broadband Antennas Omni or Elliptical Pattern
- Pipe Mount Kits
- You, Your Antenna, and Safety!
- Antenna Patterns (login required)
- DB420-B Product specifications
- DB420-B Product specifications (Comprehensive)
- Customer and Technical Support, Training, Software/Firmware, Repair Services
- CommScope Limited Product Warranty
