Brand: CommScope | SKU: 971243

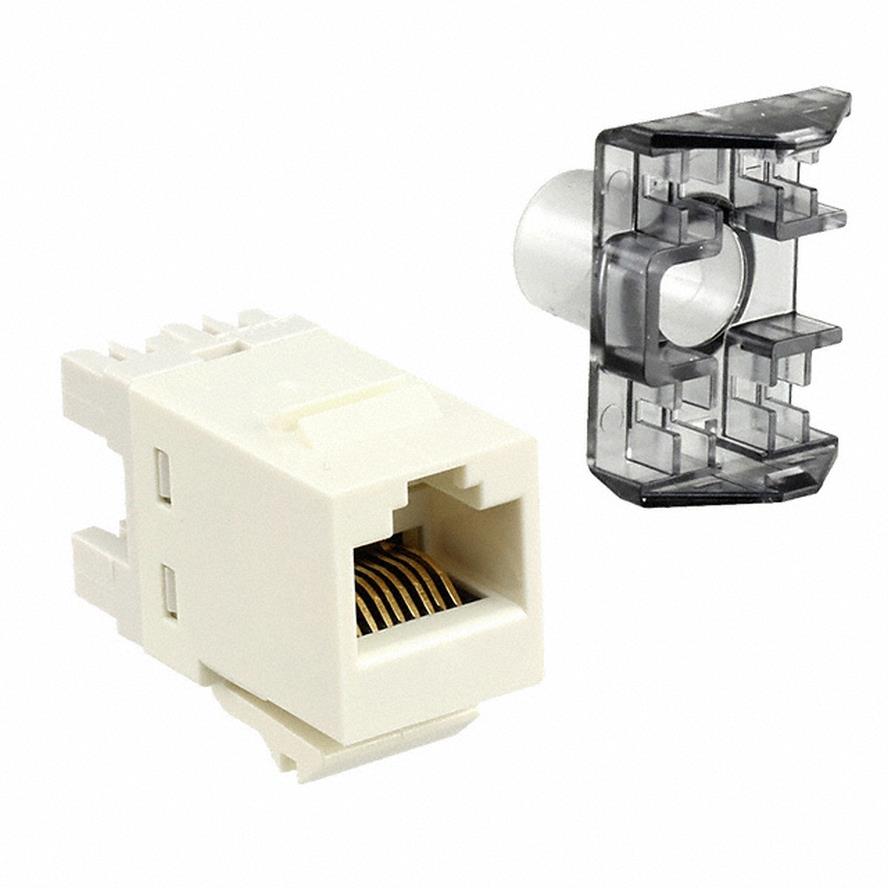

Commscope USL600-A.WHT | Uniprise USL Series Modular Jack, RJ45, category 6, T568A/T568B, unshielded, without dust cover, alpine white

$14.08

Shipping calculated at checkout.

Low prices.

Price match guarantee
In-House Experts.

We know our products
Easy Returns.

Quick & Hassle Free
Superior Selection.

Extensive product catalog

Description

Commscope USL600-A.WHT | Uniprise USL Series Modular Jack, RJ45, category 6, T568A/T568B, unshielded, without dust cover, alpine white

Specifications

Product Classification

Regional Availability	North America
Portfolio	Uniprise
Product Type	Modular jack
Product Series	USL Series

General Specifications

ANSI/TIA Category	6
Cable Type	Unshielded
Color	Alpine white
Conductor Type	Solid / Stranded
Integrated Dust Cover Type	None
Mounting Note	Color matches with SL-style Alpine white or Pro white Faceplates and Surface Mount Boxes
Termination Type	IDC
Wiring	T568A / T568B

Dimensions

Compatible Conductor Gauge, solid	22 AWG / 24 AWG
Compatible Conductor Gauge, stranded	24 AWG / 26 AWG

Electrical Specifications

Contact Resistance Variation, maximum	20 mOhm
Contact Resistance, maximum	100 mOhm
Current Rating at Temperature	1.5 A/20 °C / 1.5 A/68 °F
Dielectric Withstand Voltage, RMS, conductive surface	1,500 Vac/60 Hz
Dielectric Withstand Voltage, RMS, contact-to-contact	1,000 Vac/60 Hz
Insulation Resistance, minimum	500 mOhm
Remote Powering	Fully supports the safe delivery of power over LAN cabling described by IEEE 802.3bt (Type 4) and complies with the unmating under electrical load requirements prescribed by IEC 60512-99-002

Material Specifications

Contact Plating Material	Precious metals
Material Type	Copper alloy / High-impact, flame retardant, thermoplastic
Termination Contact Plating	Nickel

Mechanical Specifications

Plug Insertion Life, minimum	750 times
Plug Insertion Life, test plug	IEC 60603-7 compliant plug
Plug Retention Force, minimum	133 N / 29.9 lbf

Environmental Specifications

Operating Temperature	-10 °C to +60 °C (+14 °F to +140 °F)
Storage Temperature	-40 °C to +70 °C (-40 °F to +158 °F)
Relative Humidity	Up to 95%, non-condensing
Flammability Rating	UL 94 V-0
Safety Standard	UL / cUL

Packaging and Weights

Packaging quantity	1

Regulatory Compliance/Certifications

ISO 9001:2015	Designed, manufactured and/or distributed under this quality management system
ROHS	Compliant
CHINA-ROHS	Below maximum concentration value
REACH-SVHC	Compliant as per SVHC revision on www.commscope.com/ProductCompliance

Documents and Downloads

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

5 stars: 2 (100%)
4 stars: 0 (0%)
3 stars: 0 (0%)
2 stars: 0 (0%)
1 star: 0 (0%)

Gold Standard

This is the gold standard for RJ45 modular jacks! Yes, they’re relatively expensive but worth the money. And paired with a Fluke Rapid Jack tool—you too can be an awesomely speedy network installer. I just finished a job and ran some CAT6A and terminated with these tools and they didn’t disappoint. 100% accuracy as long as you use the right color code sequence. These are the best!

No Comparison

I had originally used cheaper connectors from big box home stores, some of which worked and others didn't Decided to try these brand names and every one worked perfectly. They work perfectly both 586A and 586B wiring. Using these modular jack tools for over a year and they are functioning smoothly. These Modular jacks have no comparison. RECOMMENDED!!!
