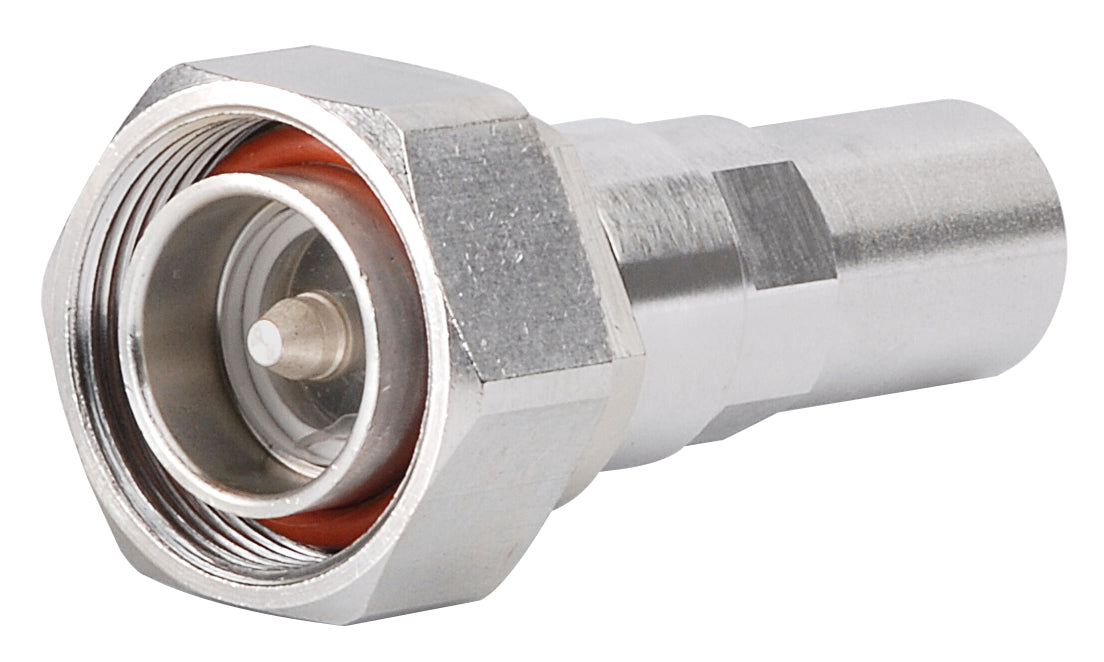

Commscope L4TDM-PSA | 7-16 DIN Male Positive Stop for 1/2 in AL4RPV-50, LDF4-50A, HL4RPV-50 cable
Regular price
$22.08
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Commscope L4TDM-PSA | 7-16 DIN Male Positive Stop for 1/2 in AL4RPV...
Regular price
$22.08
Unit price
Description
Description
7-16 DIN Male Positive Stop for 1/2 in AL4RPV-50, LDF4-50A, HL4RPV-50 cable
Specifications
Specifications
Product Classification
| Product Type | Wireless and radiating connector |
|---|---|
| Product Brand | HELIAX | Positive Stop |
General Specifications
| Body Style | Straight |
|---|---|
| Cable Family | AL4-50 |
| Harmonized System (HS) Code | 854420 (Coaxial cable and other coaxial electric conductors) |
| Inner Contact Attachment Method | Captivated |
| Inner Contact Plating | Silver |
| Interface | 7-16 DIN Male |
Dimensions
| Length | 68.58 mm | 2.700 in |
|---|---|
| Diameter | 34.54 mm | 1.360 in |
| Nominal Size | 1/2 in |
Electrical Specifications
| 3rd Order IMD at Frequency | -120 dBm @ 910 MHz |
|---|---|
| 3rd Order IMD Test Method | Two +43 dBm carriers |
| Insertion Loss, typical | 0.05 dB |
| Average Power at Frequency | 1.1 kW @ 900 MHz |
| Cable Impedance | 50 ohm |
| Connector Impedance | 50 ohm |
| dc Test Voltage | 4000 V |
| Inner Contact Resistance, maximum | 0.8 mOhm |
| Insulation Resistance, minimum | 5000 mOhm |
| Operating Frequency Band | 0 – 8800 MHz |
| Outer Contact Resistance, maximum | 1.5 mOhm |
| Peak Power, maximum | 40 kW |
| RF Operating Voltage, maximum (vrms) | 1415 V |
| Shielding Effectiveness | -110 dB |
Mechanical Specifications
| Attachment Durability | 25 cycles |
|---|---|
| Connector Retention Tensile Force | 889.64 N | 200.000 lbf |
| Connector Retention Torque | 5.42 N-m | 47.998 in lb |
| Coupling Nut Proof Torque | 25 N-m | 221.269 in lb |
| Coupling Nut Retention Force | 1000 N | 224.810 lbf |
Environmental Specifications
| Operating Temperature | -55 °C to +85 °C (-67 °F to +185 °F) |
|---|---|
| Storage Temperature | -55 °C to +85 °C (-67 °F to +185 °F) |
| Corrosion Test Method | MIL-STD-1344A, Method 1001.1, Test Condition A |
