Brand: Leviton Manufacturing Co
|
SKU:
363938

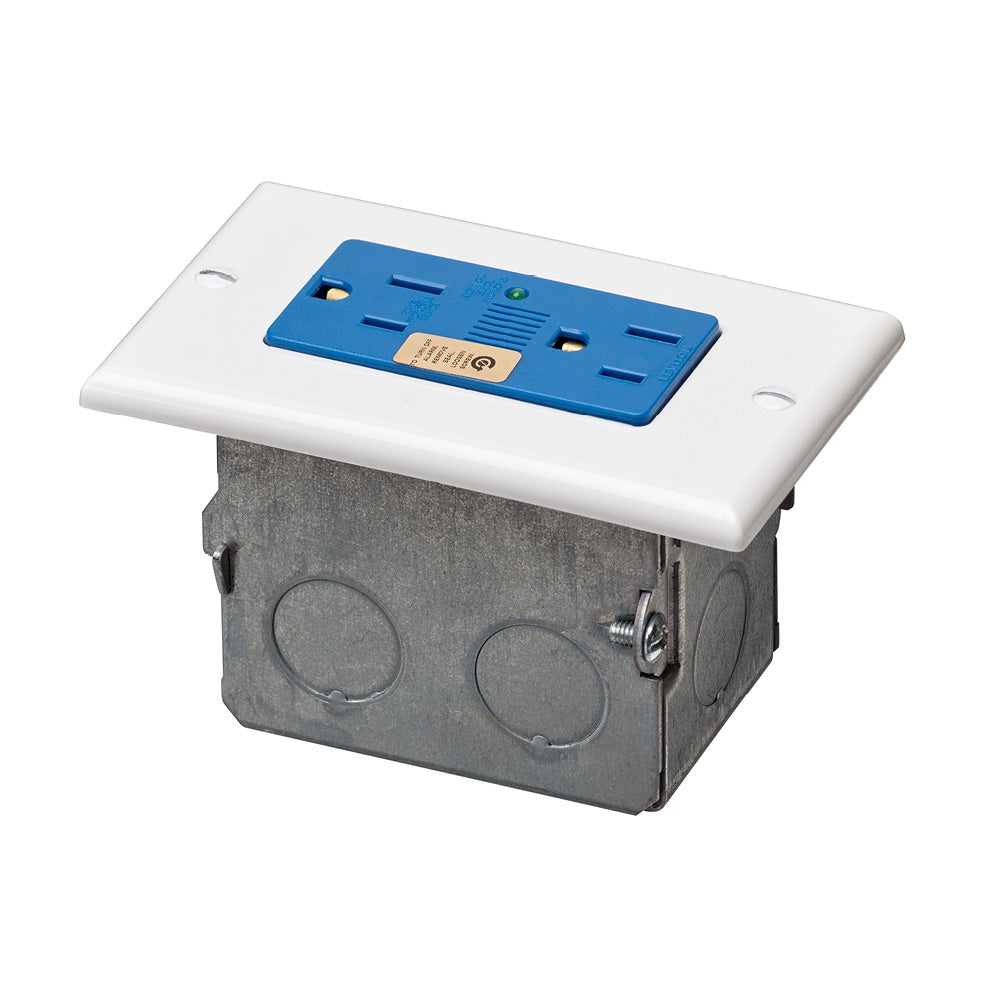

Leviton 47605-ACS | J-Box Surge Protective Kit (one duplex blue receptacle)
Regular price
$49.11
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Leviton 47605-ACS | J-Box Surge Protective Kit (one duplex blue rec...
Regular price
$49.11
Unit price
Brand: Leviton Manufacturing Co
|
SKU:
363938
Regular price
$49.11
Unit price
Shipping calculated at checkout.
Description
Description
Leviton offers reliable surge protective AC Power Modules and J-Box kits. Both the AC Power Module and the J-Box kits work with the Series 140, 280 and 420 Structured Media Centers. Choose either surge protective for optimum protection or non-surge protective. The surge protected options provide EMI/RFI filtering that meets UL 1449 standards. The AC Power Modules feature two 15-Amp duplex receptacles and the J-Box kit features one 15-Amp duplex receptacle.
Product Features
| Feature: | Surge |
|---|---|
| Input Voltage: | 120 Volt AC |
| NEMA: | 5-15R |
| Output Power: | 15 Amp |
| Output Voltage: | 120 Volt |
| Quantity of Outlets: | 2 |
| Series Compatibility: | 140, 280, 420 Series Compatible |
| Standards and Certifications: | UL |
| Type: | AC Power Module |
| Warranty: | 2-Year Limited |
Specifications
Specifications
Electrical Ratings
| Input Voltage: | 120 Volt AC |
|---|---|
| Output Power: | 15 Amp |
| Output Voltage: | 120 Volt |
| Type: | AC Power Module |
Material Specifications
| Enclosure Material: | Powder-Coated Steel |
|---|
Mechanical Specifications
| Quantity of Outlets: | 2 |
|---|
Performance Data
| Diagnostics: | Indicator Light & Audible Alarm |
|---|---|
| Joules at 10/1000 micro-sec: | 720 |
| MCOV: | 150V rms |
| Max Surge Current L-N: | 24kA |
| Noise Rejection: | -30dB at 500kHz-30MHz |
| UL1449 Impulse 6kV/500A L-G: | 400V |
Standards and Certifications
| ANSI: | C-73 |
|---|---|
| CSA C22.2 No. 42: | File 152105 |
| NEMA: | WD-6 |
| NOM: | 57 |
| UL1449 Std. 2nd Edition: | File E146315 |
| UL498HG: | File E13399 |
