Brand: Burndy | SKU: YAV28L2TC38FX90

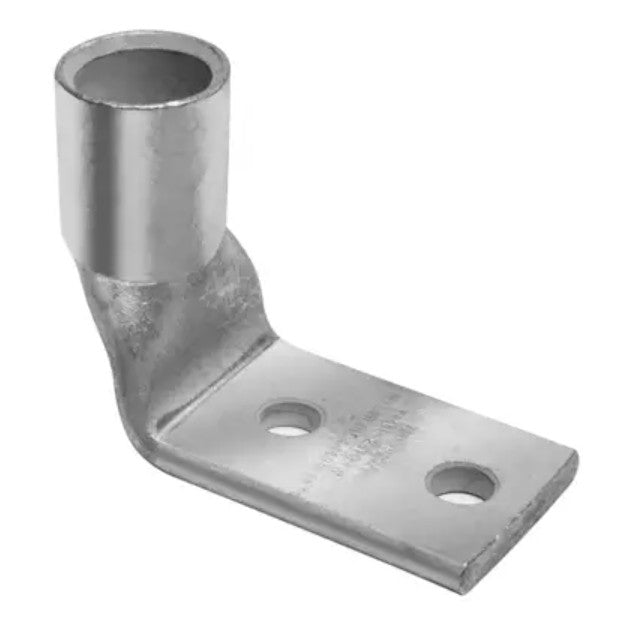

Burndy YAV28L2TC38FX90 | Compression Lug, Purple, Copper, 2 Hole, Stud Size 3/8 in., Die Index 15, 4/0 AWG

$21.12

Shipping calculated at checkout.

Low prices.

Price match guarantee
In-House Experts.

We know our products
Easy Returns.

Quick & Hassle Free
Superior Selection.

Extensive product catalog

Description

Burndy YAV28L2TC38FX90 | Compression Lug, Purple, Copper, 2 Hole, Stud Size 3/8 in., Die Index 15, 4/0 AWG

4/0 Flex G,H,I,K,M,DLO, 4/0 AWG CU, Two Hole, 3/8 Stud Size, 1 Hole Spacing, Standard Barrel, Inspection Window, Internal Chamfer, Tin Plated, UL/CSA, 90°C, Up to 35kV, Purple Color Code, 15 Die Index.

Specifications

Burndy - YAV28L2TC38FX90 - Product Categories

Electrical Supplies and Lighting
Electrical Supplies
Compression Grounding and Bonding
Compression Lugs

Burndy - YAV28L2TC38FX90 - Specifications

Manufacturer Name	Burndy
Manufacturer Part Number	YAV28L2TC38FX90
Item Description	Compression Lug, Purple, Copper, 2 Hole, Stud Size 3/8 in., Die Index 15, 4/0 AWG
Barrel Type	Skived; Chamfered; Standard
Color Code	Purple
Conductor Material	Copper
Conductor Size	4/0 AWG
Die Index	15
Hole Size	0.41 in. (10.4mm)
Material	Copper
Number of Holes	2 Hole
Overall Length	2.34 in. (59mm)
Product Type	Compression Lug
Stud Size	3/8 in.
TYPE	FLEX COMPRESSION
Tongue Angle	90 Degree
Tongue Thickness	0.15 in.
Tongue Type	Standard
Tongue Width	1.14 in.
Voltage Rating	35 kV

Documents and Downloads

Burndy YAV28L2TC38FX90 Data Sheet
