Brand: Tripp-Lite | SKU: 9810806

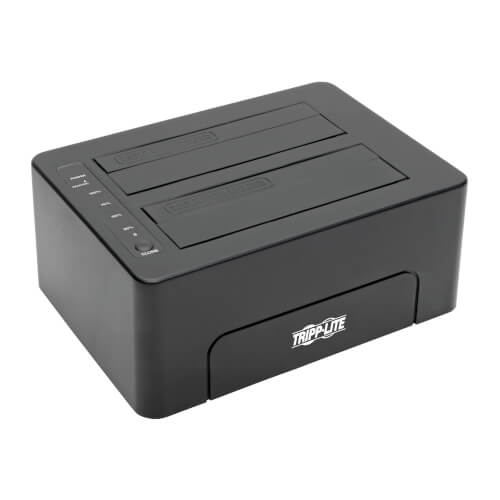

Tripp-Lite U439-002-CG2 | USB-C to Dual SATA Quick Dock - USB 3.1 Gen 2 (10 Gbps), 2.5/3.5 in. HDD/SDD, Thunderbolt 3

Regular price $122.67
Shipping calculated at checkout.
  • Low prices.

    Price match guarantee

  • In-House Experts.

    We know our products

  • Easy Returns.

    Quick & Hassle Free

  • Superior Selection.

    Extensive product catalog

Description

USB-C to SATA dock connects SATA hard drives to your computer, laptop, MacBook, Ultrabook or Chromebook’s USB-C or Thunderbolt 3 port.

Features

  • USB-C to SATA Adapter Connects 2 SATA Drives to Your Device’s USB-C or Thunderbolt 3 Port
  • This dual-drive USB 3.1 Type-C to SATA quick dock allows you to quickly and easily add extra storage space to your computer, tablet, laptop, notebook, MacBook, Ultrabook or Chromebook. The plug-and-play unit connects to your device’s USB Type-C or Thunderbolt 3 port using the included USB 3.1 Gen 2 cable. Just insert up to two 2.5- or 3.5-inch SATA drives into the top slots, and activate the on/off switch. LEDs indicate the unit is receiving power and the SATA drives are ready to use.
  • One-Touch Cloning Allows Easy Drive Duplication
  • You can duplicate the contents of one SATA drive onto a second drive without connecting to a host computer. Just insert the SATA master drive into the unit’s Master slot, and insert the SATA replica drive into the Replica slot. Press the Clone button. A progress bar illuminates to indicate cloning progress.
  • Complies with USB 3.1 Gen 2 Standards for Ultra-Fast File Transfers
  • This USB Type-C to SATA adapter supports USB 3.1 Gen 2 data transfer speeds up to 10 Gbps. It is backward compatible with previous USB 3.0 and USB 2.0 generations, so you can use it with older USB devices and cables. It also reads data up to 70 percent faster and writes up to 40 percent faster when connected to a UASP-enabled host controller.
  • Works with Most SATA Drives
  • The dock accepts 2.5-inch and 3.5-inch SATA I, II and III hard disc drives (HDDs) and solid state drives (SSDs) up to 10 TB (and higher-capacity drives when they become available, up to 16TB). It also works with all major operating systems, including Windows, Mac and Linux.

Features & Specifications

USB SpecificationUSB 3.1 Gen 2 (up to 10 Gbps)
Driver RequiredNo
UASP SupportYes

Specifications

Highlights

  • One-touch cloning duplicates one drive onto another without connecting to a PC
  • Supports USB 3.1 Gen 2 speeds up to 10 Gbps for ultra-fast file transfers
  • Compatible with all 2.5 and 3.5 in. SATA I, II and III HDDs and SSDs up to 10 TB
  • Works with all major operating systems, including Windows, Mac and Linux
  • Plug-and-play operation with no software or drivers required

Applications

  • Clone one SATA drive to another without connecting to a PC
  • Add external storage to your PC or notebook computer
  • Quickly archive backup data from your computer to an external drive
  • Transfer data from one computer to another via SATA drive
  • Gain fast access to SATA drives for imaging purposes

Overview

UPC Code37332231185.0
AC AdapterInput: 100-240V; 50/60Hz; 1.5A; Output: 12V; 3A
TechnologySATA/eSATA; USB; USB 3.1 (Gen 2)

Input

Voltage Compatibility (VAC)100; 110; 120; 127; 200; 208; 220; 230; 240
External Power Supply Plug(s)NEMA 1-15P North America
Bus PoweredNo

Power

External Power Supply Input Specs (V / Hz / A)100-240V / 50/60Hz / 1.5A
External Power Supply Output Specs (V / A)12V / 3A
External Power Supply Cord Length (ft.)5.0
External Power Supply Cord Length (m.)1.5
External Power Supply DC Barrel Connector SpecsOD: 5.5 x 2.1 x 10mm, Positive Pin, Negative Sleeve
External Power Supply CertificationsFCC; UL; cUL; RoHS

User Interface, Alerts & Controls

LED IndicatorsBlue (Read, Write, Power); Red (Clone)

Physical

ColorBlack
Material of ConstructionPCB

Environmental

Operating Temperature Range50 to 122 F (10 to 50 C)
Storage Temperature Range32 to 149 F (0 to 65 C)
Relative Humidity10% to 80% RH, Non-Condensing

Connections

Ports2
Side A - Connector 1USB C (FEMALE)
Side B - Connector 1(2) 7-PIN SATA (FEMALE)
Connector PlatingNickel

Standards & Compliance

CertificationsTested to FCC, RoHS, REACH

Warranty

Product Warranty Period (Worldwide)3-year limited warranty
