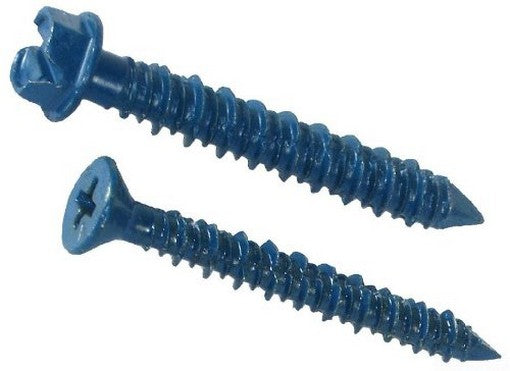

L. H. Dottie 36P134 | 3/16'' x 1-3/4'' Phillips Flat Head Concrete Screw Anchor
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
L. H. Dottie 36P134 | 3/16'' x 1-3/4'' Phillips Fla...
Description
Description
Concrete Screws are tempered masonry screws designed for long lasting performance and superior holding strength. Due to their unique thread design, they are the ideal fastening solution for light to medium duty applications in concrete, brick, masonry block and wood base materials. They are manufactured with a gimlet point that taps it's own threads while drilling into the base material. Common applications for this fastener include the attachment of electrical boxes, light fixtures, and masonry base materials.
L. H. Dottie - 36P134 - Features
- Concrete anchor system
- Hex head slotted
- Hi low thread
- Ceramic coated blue finish
- Includes drill
Specifications
Specifications
L. H. Dottie - 36P134 - Physical Characteristics
| Anchor Type | Concrete Screw |
|---|---|
| Drive Type | Phillips |
| Head Type | Flat |
| Point Type | Gimlet |
| Thread Type | High-Low |
| Bit Size | #2 |
| Anchor Diameter | 3/16'' |
| Anchor Length | 1-3/4'' |
| Thread Length | 1-3/4'' |
| Material | Carbon Steel |
| Finish | Blue Xylan |
| Color | Blue |
L. H. Dottie - 36P134 - Package Information
| Included | Carbide Tipped Drill |
|---|---|
| Standard Qty | 100 |
| Sleeve Qty | 500 |
| Master Qty | 1500 |
| Price Per | 100 |
| Package Length | 5 |
| Package Width | 3 |
| Package Height | 3 |
| Net Weight | 0.01 |
| Package Weight | 1.1 |
L. H. Dottie - 36P134 - Performance Data
| Pre-Drill Size | 5/32'' x 3-1/2'' |
|---|---|
| Applications | Poured Concrete, Prestressed Concrete, Cinder Block, Brick, Mortar |
| Special Features | Designed for Close To Edge Fastening, Strong Grip, Corrosion Resistance, Case Hardened, Can be Loosened for Adjustment or Removal |
| Cement Type | Various PSI |
L. H. Dottie - 36P134 - Certifications
| RoHS Compliant | Yes |
|---|
