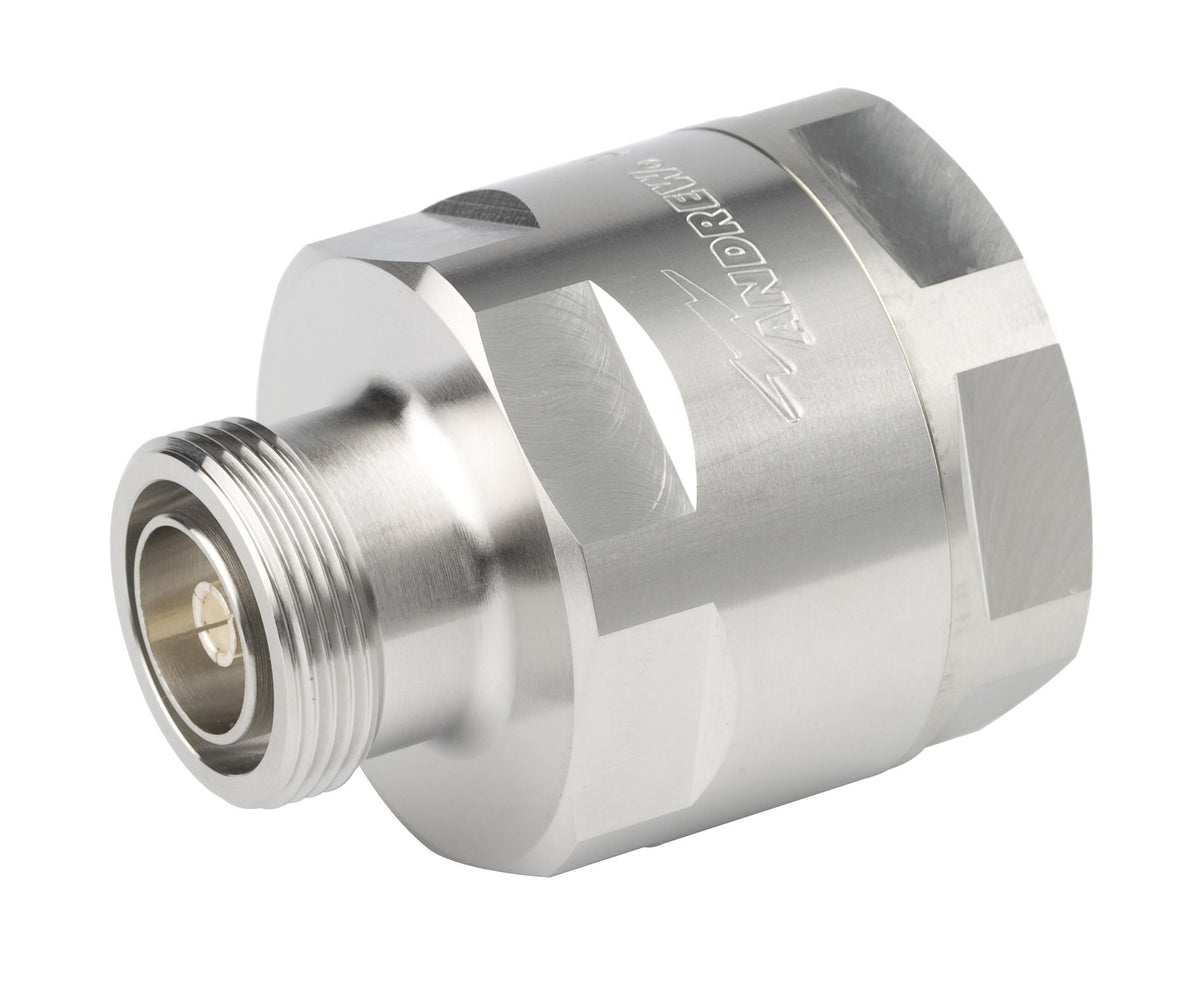

7-16 DIN Female Positive Stop for 1-1/4 in AVA6-50 cable
Specifications
Specifications
Product Classification
| Product Type | Wireless and radiating connector |
|---|---|
| Product Brand | HELIAX | Positive Stop |
General Specifications
| Body Style | Straight |
|---|---|
| Cable Family | AVA6-50 |
| Inner Contact Attachment Method | Captivated |
| Inner Contact Plating | Silver |
| Interface | 7-16 DIN Female |
| Mounting Angle | Straight |
Dimensions
| Length | 66.04 mm | 2.600 in |
|---|---|
| Diameter | 51.31 mm | 2.020 in |
| Nominal Size | 1-1/4 in |
Electrical Specifications
| 3rd Order IMD at Frequency | -116 dBm @ 1800 MHz |
|---|---|
| 3rd Order IMD Test Method | Two +43 dBm carriers |
| Insertion Loss, typical | 0.05 dB |
| Average Power at Frequency | 3.0 kW @ 900 MHz |
| Cable Impedance | 50 ohm |
| Connector Impedance | 50 ohm |
| dc Test Voltage | 4000 V |
| Inner Contact Resistance, maximum | 0.8 mOhm |
| Insulation Resistance, minimum | 5000 mOhm |
| Operating Frequency Band | 0 – 4000 MHz |
| Outer Contact Resistance, maximum | 1.5 mOhm |
| Peak Power, maximum | 40 kW |
| RF Operating Voltage, maximum (vrms) | 1415 V |
| Shielding Effectiveness | -130 dB |
Mechanical Specifications
| Attachment Durability | 25 cycles |
|---|---|
| Connector Retention Tensile Force | 1779.29 N | 400.000 lbf |
| Connector Retention Torque | 10.85 N-m | 96.004 in lb |
| Insertion Force | 200.17 N | 45.000 lbf |
| Insertion Force Method | IEC 61169-1:15.2.4 |
Environmental Specifications
| Operating Temperature | -55 °C to +85 °C (-67 °F to +185 °F) |
|---|---|
| Storage Temperature | -55 °C to +85 °C (-67 °F to +185 °F) |
| Attenuation, Ambient Temperature | 20 °C | 68 °F |
