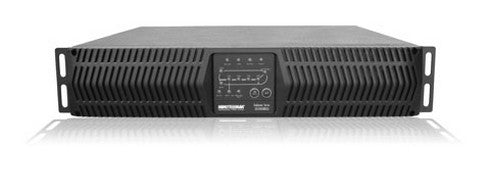

Minuteman ED1500RMT2U 1500 VA On-line Rack/Wall/Tower UPS with 4 Outlets

The ED1500RMT2U from Minuteman is a 1500 VA On-line Rack/Wall/Tower UPS with 4 outlets that combines double conversion technology with industry-leading features in a versatile case design which allows the unit to be installed in many different formats and operating environments.The ED1500RMT2U produces an electrical signal that does not vary from nominal voltage by more than 2%. Tightly regulating the output voltage increases the quality of power to connected equipment adding to its life expectancy, which lowers the total cost of ownership to users. In The ED1500RMT2U the Total Harmonic Distortion (THD) is the distortion of a normal AC electrical signal when connected loads near their capacity. This distortion can create internal heat buildup on sensitive equipment not designed to allow for these altered AC signals. The Endeavor Series maintains an output AC signal, at all times and with all loads, within 2% of a true sine wave.The ED1500RMT2U provides users with the ability to communicate with the UPS simultaneously through three separate protocols: RS-232, USB and Ethernet/SNMP. The ED1500RMT2U is designed to proactively notify users of any impending faults or failures with the UPS. This allows for preemptive repair or replacement of components or batteries preventing unexpected downtime caused by the UPS.

Features

Floor-standing tower, 19-inch rack and cabinet installation kits included

23-inch rack or cabinet installation kit optional

Wall mounts installation kit optional

3.5-inch (2U) rack/tower case style

Output receptacle control for non-critical load shedding capability

Extended runtime using external battery packs

Independent battery pack chargers to reduce battery recharge times

Simultaneous RS-232, USB and SNMP communications

Minuteman® Sentry Plus™ UPS monitoring and control software

Front panel display with load/battery meter and status indicators

Three-year non-prorated warranty (including batteries)

Dedicated remote Emergency Power Off (EPO) port

Hot-swappable batteries

Specs

Manufacturer Minute Man By Para Systems

Category New

Maximum Power Capacity (VA/Watts) 1500/1200

Topology On-line Uninterruptible Power Supply

Power Factor 0.8

Battery and Surge Protected Receptacles [6]5-15R ([4] 6-15R)

Input Connection (with 10 ft power cord) 5-15P (6-15P)

Mounting/Installation Rackmount, tower and wallmount

Nominal Voltage 120VAC (208VAC)

Voltage Range 90-138VAC (160-280VAC)

Frequency Range 50/60Hz +/-6Hz Auto-sensing

Power Factor Correction ?97% at full load

Voltage /Frequency Range 117.6 - 122.4VAC (204 - 212VAC) / 50/60Hz ±6Hz

Wave Form True sine wave

Efficiency (Line Mode) >87% (full load)

Nominal Voltage 120VAC (208VAC), User selectable: 110VAC (240VAC)

Voltage Regulation Nominal ±2% until low battery warning

Frequency 50/60Hz ±0.1Hz unless synchronized to line

Voltage Total Harmonic Distortion T.H.D. ?3% at full rated linear load

Dynamic Response ±5% at 100% load change in 30ms

Transfer Time 0ms

Runtime: Half Load/Full Load (minutes) 13/4

Operating (max)/Storage Temperature +32 to +104°F (0 to 40°C) / +5 to +113°F (-15 to +45°C)

Operating/Storage Humidity 95% non-condensing

Operating/Storage Elevation 0 to 10,000 ft (0 to 3,000 m) / 0 to 50,000 ft (0 to 15,000 m)

Dimensions 3.5 x 17.3 x 17.0 in 89 x 440 x 432 mm
