Brand: Lapp Group
|
SKU:
TRAYFLEX-1407
Lapp Group 221407 | Tray Cable, 14 AWG, Bare Copper, Insulation Material PVC/ Nylon, 600V, 7Conductor
Regular price
$3,630.13
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Lapp Group 221407 | Tray Cable, 14 AWG, Bare Copper, Insulation Mat...
Regular price
$3,630.13
Unit price
Brand: Lapp Group
|
SKU:
TRAYFLEX-1407
Regular price
$3,630.13
Unit price
Shipping calculated at checkout.
Description
Description

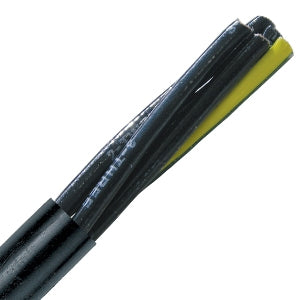

Lapp Group 221407 | Tray Cable, 14 AWG, Bare Copper, Insulation Material PVC/ Nylon, 600V, 7Conductor
LAPP –LFLEX TRAY II is an industrial grade tray cable with superior oil performance for long cable life. It has a pressure-extruded jacket and fine copper stranding for excellent flexibility, making it much easier to pull through tray. With UL TC-ER approval, no conduit is needed so you can reduce material costs along with saving on labor.
Lapp Group - 221407 - Features
- Easier to pull than standard tray cables; lower labor costs
- Black numbered conductors for easy identification
- Improved shielding effectiveness
Specifications
Specifications
Lapp Group - 221407 - Product Categories
- Electrical Wire and Cable
- Power and Control Cable
- Control and Instrumentation Cable
- Control Tray Cable
Lapp Group - 221407 - Specifications
| Manufacturer Name | Lapp Group |
|---|---|
| Manufacturer Part Number | 221407 |
| Conductor Count | 7 Conductor |
| Item Description | Tray Cable, 14 AWG, Bare Copper, Insulation Material PVC/ Nylon, 600V, 7Conductor |
| Conductor Material | Bare Copper |
| Conductor Size | 14 Awg |
| Conductor Stranding | 46 Strands In Each Conductor |
| Conductor Type | Stranded |
| Ground Wire Material | Bare Copper |
| Insulation Color Code | Black With White Numbers |
| Insulation Material | Pvc/Nylon |
| Jacket Color | Black |
| Jacket Material | Tpe |
| Jacketing Material | Thermoplastic Polymer |
| Length | 1000 Ft. (304.8 M) |
| Number Of Ground Wires | 1 Ground Wire |
| Product Type | Industrial-Grade Flexible Tray Cable |
| Shield Type | Braid And Foil Shield |
| Stranding | 46 Strands In Each Conductor |
| Temperature Rating | -25° To 90°C (-13° To 194°F) |
| Voltage | 600 To 1000 V |
