HellermannTyton 151-02979 | Conduit Clamps, Size 10, Attach Hole Dia. 6.5, Offset 40.5, PA66, Black, 50/Pkg
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
HellermannTyton 151-02979 | Conduit Clamps, Size 10, Attach Hole Di...
Description
Description

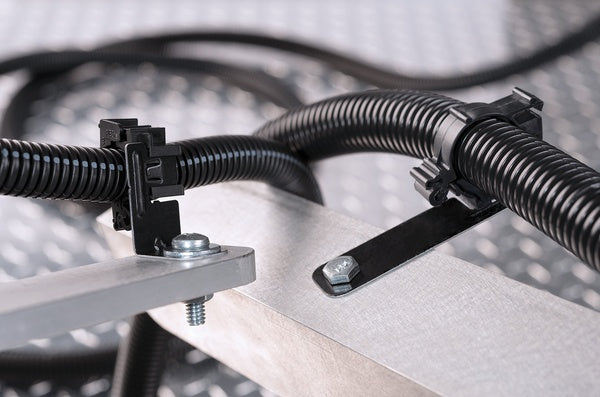

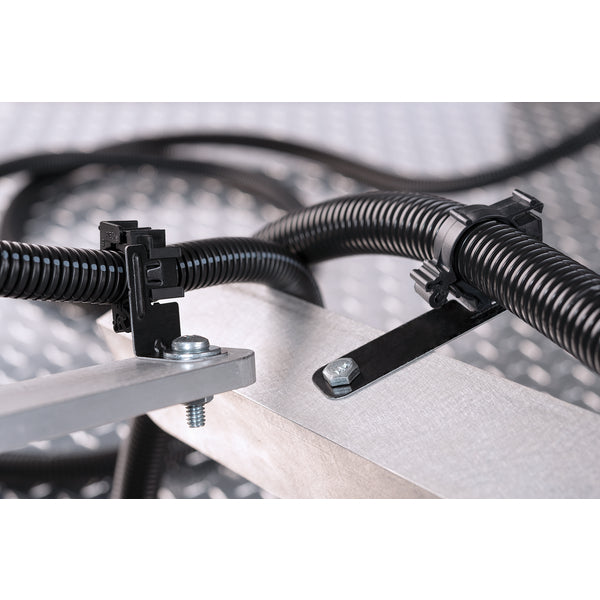

151-02979 The Convoluted Tubing Clamp provides a quick method for securing and routing convoluted tubing. The clamp has an internal rib that prevents movement of the tubing and rattling. Living hinge allows placement and positioning of tubing before lo cking in place. Convoluted tubing clamps are available in various tubing diameters. Choose from arrowhead, fir tree, bundling clip, bracket and dual clamp configurations.
The Convoluted Tubing Clamp provides a quick method for securing and routing convoluted tubing. The clamp has an internal rib that prevents movement of the tubing and rattling. Living hinge allows placement and positioning of tubing before locking in place. Convoluted tubing clamps are available in various tubing diameters. Choose from arrowhead, fir tree, bundling clip, bracket and dual clamp configurations.
About HellermannTyton: HellermannTyton is a global manufacturer of cable management and identification solutions for automotive, solar, electrical, construction, industrial automation, broadband and other OEM markets. The company's integrated approach to product design, sustainability, production, quality assurance and delivery is optimized to benefit local and global customers. HellermannTyton operates in 39 countries, with North American headquarters in Milwaukee, Wisconsin.
HellermannTyton - 151-02979 - Features
- Heavy duty push pin with 12x17mm fir tree provides low insertion effort yet delivers exceptional retention strength in a 12x17mm slotted hole.
- Oval fir tree prevents rotation.
- Wide, flat top provides an ergonomically friendly surface for easy installation.
- Long fir tree to fasten channel, bracket or clamp to panel surface.
Specifications
Specifications
HellermannTyton - 151-02979 - Product Categories
- OEM
- Cable Management and Electrical
- Cable Management
- Routing, Protection and Insulation
- Convoluted Tubing and Accessories
- Convoluted Tubing - Accessories
HellermannTyton - 151-02979 - Specifications
| Brand Name | HellermannTyton |
|---|---|
| Approvals | None |
| Category | Clips And Clamps |
| Color | Natural |
| Flammability Rating | Not Rated |
| Material | Plastic |
| Quality Standard | Commercial Release |
| Rohs Compliant | Not Declared |
| Type | Cable Clip - Push Mount |
| UNSPSC Code | 39121700 |
HellermannTyton - 151-02979 - Base Data
| Article Number | 151-02979 |
|---|---|
| Type | CDC10S40.5M6 |
| Color | Black (BK) |
| Quantity Per | carton |
| Short Description | Conduit Clamps, Size 10, Mounting Hole 6.5 mm, Offset 40.5 mm, PA66, Black, 50/pkg |
| Global Part Name | CDC10S40.5M6-PA66-BK |
HellermannTyton - 151-02979 - Product Dimensions
| Length L (Imperial) | 2.58 |
|---|---|
| Length L (Metric) | 65.5 |
| Variant | Clamps |
| Width W (Imperial) | 0.9 |
| Width W (Metric) | 23 |
| Bundle Diameter Max (Imperial) | 0.39 |
| Bundle Diameter Max (Metric) | 10 |
| Height H (Imperial) | 2 |
| Height H (Metric) | 50.7 |
| Inner Diameter D (Imperial) | 0.7 |
| Inner Diameter D (Metric) | 17.8 |
| Diameter D (Imperial) | 0.43 |
| Diameter D (Metric) | 11 |
| Nominal Diameter (Imperial) | 0.38 |
| Nominal Diameter (Metric) | 10 |
| Mounting Hole Diameter D (Imperial) | 0.26 |
| Mounting Hole Diameter D (Metric) | 6.5 mm |
HellermannTyton - 151-02979 - Logistic & Packaging
| Package Quantity (Imperial) | 50 |
|---|---|
| Package Quantity (Metric) | 50 |
| Customs Number | 3.93E+09 |
HellermannTyton - 151-02979 - Materials & Specifications
| Material | Polyamide 6.6 (PA66) |
|---|---|
| Material Shortcut | PA66 |
| Flammability | UL 94 V-2 |
| Halogen Free | No |
| UV Resistant (Yes/No) | No |
| Operating Temperature | -40°F to +185°F (-40°C to +85°C) |
| Reach Compliant (Article 33) | Yes |
| ROHS Compliant | Yes |
