Brand: Siemon Company
|
SKU:
10327831

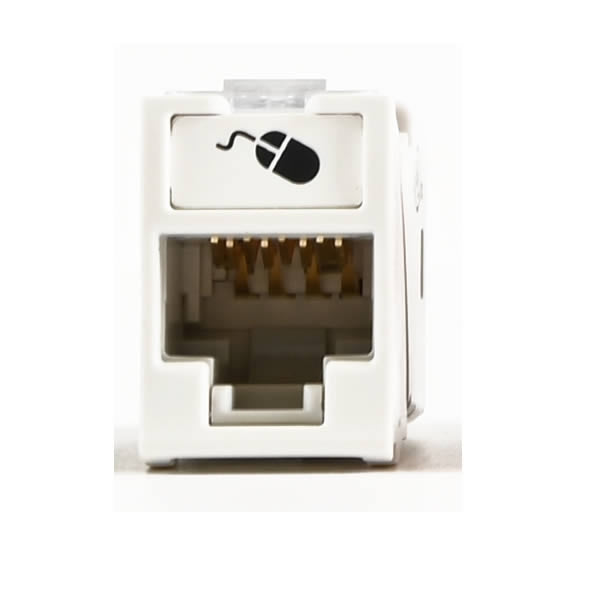

Siemon Company U6-H02NS | Outlet, Cat 6, 1 Port, T568A, T568B, UTP, Flame Retardant Thermoplastic, White
Regular price
$11.02
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Siemon Company U6-H02NS | Outlet, Cat 6, 1 Port, T568A, T568B, UTP,...
Regular price
$11.02
Unit price
Brand: Siemon Company
|
SKU:
10327831
Regular price
$11.02
Unit price
Shipping calculated at checkout.
Description
Description
Siemon Company U6-H02NS | Outlet, Cat 6, 1 Port, T568A; T568B, UTP, Flame Retardant Thermoplastic, White
The Siemon UltraMAX copper connectivity system utilizes a single platform of innovative outlets for your category 5e, 6 and 6A UTP requirements. The UltraMAX outlets are designed to maximize usability, quality and performance into a sleek footprint that's ideally suited for users to deliver quick, reliable terminations first time, every time.
Specifications
Specifications
Siemon Company - U6-H02NS - Product Categories
- Network Cabling Infrastructure
- Copper Cabling Infrastructure
- Copper Connectivity
- Copper Connectors
Siemon Company - U6-H02NS - Specifications
| Manufacturer Name | Siemon Company |
|---|---|
| Manufacturer Part Number | U6-H02NS |
| Amperage | 1.5 |
| Item Description | Outlet, Cat 6, 1 Port, T568A; T568B, UTP, Flame Retardant Thermoplastic, White |
| Body Material | Flame Retardant Thermoplastic |
| Category | Cat 6 |
| Color | White |
| Conductor Diameter | 0.02 In. (0.6Mm) |
| Conductor Type | Solid; Stranded |
| Connector Type | Rj45; Rj11 |
| Contact Material | Copper Alloy |
| Fire Rating | Ul 94 V-0 |
| Height | 0.83 In. (21Mm) |
| Length | 1.3 In. (33Mm) |
| Material | Copper |
| Mounting Location | Faceplate |
| Mounting Style | Hybrid Flat Or Angled |
| Number Of Ports | 1 |
| Operating Temperature | 14° To 140°F (-10° To +60°C) |
| Package Type | Single Standard Pack |
| Product Type | Outlet |
| Resistance | 20 |
| Shield Type | Utp |
| Special Rating | Iso/Iec 11801-1 Ed.1.0; Iec 60603-7-41; Iec 60512-99-002 (3Rd Party Verified); Ansi/Tia-568.2-D; Ansi/Tia 1096-A; Etl Channel Tested; Ieee 802.3Af (Type 1 Poe); Ieee 802.3At (Type 2 Poe); Ieee 802.3Bt (Type 3 And 4 Poe); Power Over Hdbaset (Poh); Ul 2043 (Air Handling Spaces); Ul 1863 |
| Termination | Punch Down |
| Width | 0.6 In. (15Mm) |
| Wire Insulation Diameter | 0.05 In. (1.38Mm) |
| Wire Range | 22 To 26 |
| Wiring | T568A; T568B |
