Brand: CommScope
|
SKU:
10079584

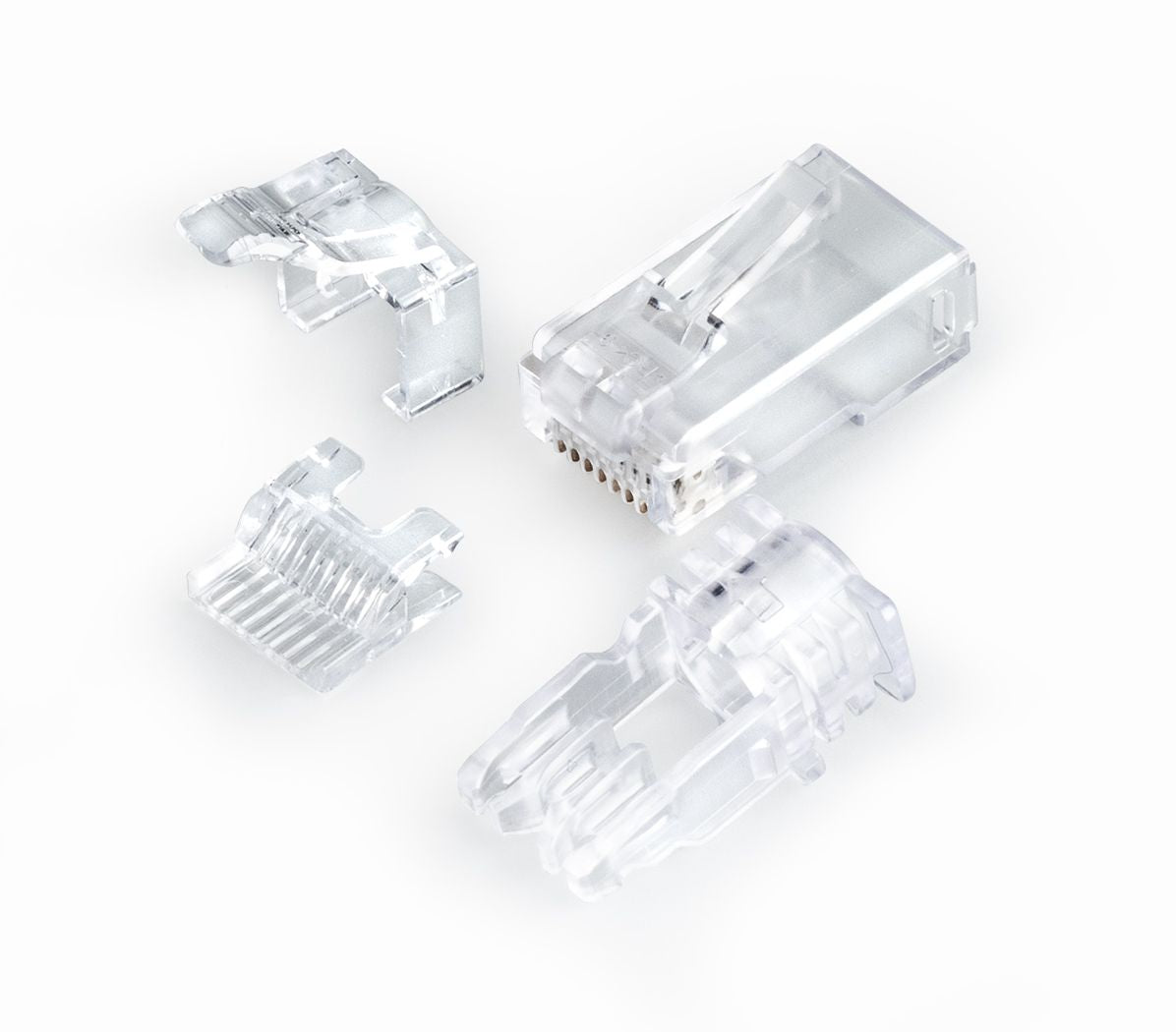

Commscope 760244130 | FIELD TERM RJ45 MP CAT6, BAG OF 100
Regular price
$551.76
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Commscope 760244130 | FIELD TERM RJ45 MP CAT6, BAG OF 100
Regular price
$551.76
Unit price
Description
Description
Commscope 760244130 | FIELD TERM RJ45 MP CAT6, BAG OF 100
Specifications
Specifications
Product Classification
| Regional Availability | Asia / Australia/New Zealand / EMEA / Latin America / North America |
|---|---|
| Portfolio | CommScope |
| Product Type | Modular plug |
General Specifications
| ANSI/TIA Category | 6 |
|---|---|
| Cable Type | U/UTP (unshielded) |
| Conductor Type | Solid |
| Interface | RJ45 |
| Positions/Loaded Contacts | 8 |
| Termination Type | IDC |
Dimensions
| Compatible Cable Diameter, maximum | 6 mm / 0.236 in |
|---|---|
| Compatible Cable Diameter, minimum | 5.3 mm / 0.209 in |
| Compatible Insulated Conductor Diameter, maximum | 1.03 mm / 0.041 in |
| Compatible Insulated Conductor Diameter, minimum | 0.84 mm / 0.033 in |
| Contact Plating Thickness | 1.27 µm |
| Compatible Conductor Gauge, solid | 23 AWG |
Material Specifications
| Contact Base Material | Copper alloy |
|---|---|
| Contact Plating Material | Gold over nickel |
| Material Type | Polycarbonate |
Mechanical Specifications
| Plug Insertion Life, minimum | 750 times |
|---|
Environmental Specifications
| Safety Standard | UL 114344 |
|---|
Packaging and Weights
| Packaging quantity | 100 |
|---|---|
| Packaging Type | Bag |
Documents and Downloads
Documents and Downloads
- Design Guidelines for MPTL
- 860650055 Field Terminated RJ45 Modular Plug Termination
- Statement of Compliance RoHS/REACH
- Customer and Technical Support, Training, Software/Firmware, Repair Services
- Field Terminated RJ45 Modular Plug Instructions
- CommScope Extended System Warranty
- CommScope Limited Product Warranty
