Panduit DNF18-110-C | Pan-Term Loose Piece Disconnect
Description
Description
Ensure reliable performance with our nylon-insulated female disconnect, ideal for wiring various electrical projects.

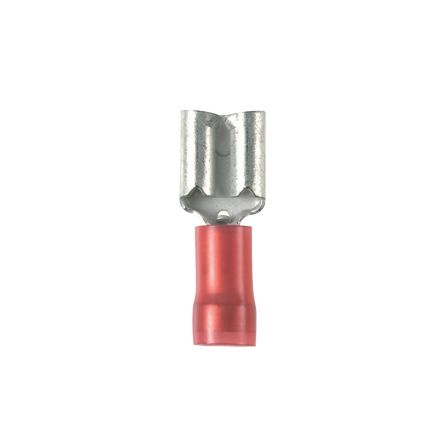

The vibration resistant female disconnect is made of brass and is tin-plated. It is barrel insulated in a red, nylon housing. It has a tab size of 0.110 x 0.032" (2.8 x 0.8 mm) and supports a wire range of 22-18 AWG (0.5-1.0 mm2). It is 0.69" (17.5 mm) long and 0.15" (3.8 mm) wide. The disconnect has a funnel entry barrel configuration and an insulation grip sleeve barrel. It comes in bottles of 100.
Panduit Pan-Term Female Disconnect, Vibration Resistant, Series: DNF, Stranded Conductor, 22 to 18 AWG Conductor, 0.11 in W x 0.032 in THK Tab, Sleeve Barrel, Crimp Terminal, 300 VAC, 9/32 in L Wire Strip, 1 in Dia Maximum Nylon Insulation, Funnel Entry Barrel Configuration, 194 deg F, Brass, Red, Tin Plated, 0.69 in L x 0.15 in W x 0.08 in H, Insulated
Panduit - DNF18-110-C - Features
- Disconnect can be inserted and removed from the male tab without the use of tools for lower installed cost
- Internal barrel serrations assure good wire contact and maximum tensile strength
- Internal wire stop assures proper length of insertion into terminal barrel, providing a higher quality connection
- Disconnect can be inserted and removed from the male tab without the use of tools for lower installed cost
- Barrel insulated design provides protection from electrical shorts
- Metal insulation grip sleeve crimps to wire insulation, providing protection to the crimp joint during high vibration applications
- Internal barrel serrations assure good wire contact and maximum tensile strength
- Internal wire stop assures proper length of insertion into terminal barrel, providing a higher quality connection
- U Flammability UL 94V-2/HB, maximum insulation temperature 194F (90C)
Specifications
Specifications
Panduit - DNF18-110-C - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | DNF18-110-C |
| Type | Copper - Other |
| UNSPSC Code | 39121400 |
| Disconnect Type | Female Disconnect |
| Insulation Material | Nylon |
| Insulation Type | Barrel Insulated |
| Maximum Copper Conductor Size (AWG) | #18 |
| Minimum Copper Conductor Size (AWG) | #22 |
| Maximum Wire Size (AWG) | 18 |
| Minimum Wire Size (AWG) | #22 |
| Wire Strip Length (In.) | 1932-09-01 |
| Wire Strip Length (mm) | 7.1 |
| Tab Size (In.) | 0.110 x 0.032 |
| Tab Size (mm) | 2.8 x 0.8 |
| Standards Met | UL 310 Listed, UL Listed 20H3 E78522; CSA Certified LR31212, C22.2 No.153 |
| Maximum Voltage (V) | 300 |
| Base Material | Brass |
| Finish/Coating | Tin-Plated |
| Color Code | Red |
| Barrel Type | Funnel Entry |
| Flammability Rating | UL94-HB |
| Insulation Diameter (In.) | 0.1 |
| Insulation Diameter (mm) | 2.5 |
| Maximum Operating Temperature (°C) | 90 |
| UPC | 07498382704 |
