Brand: CommScope
|
SKU:
643803

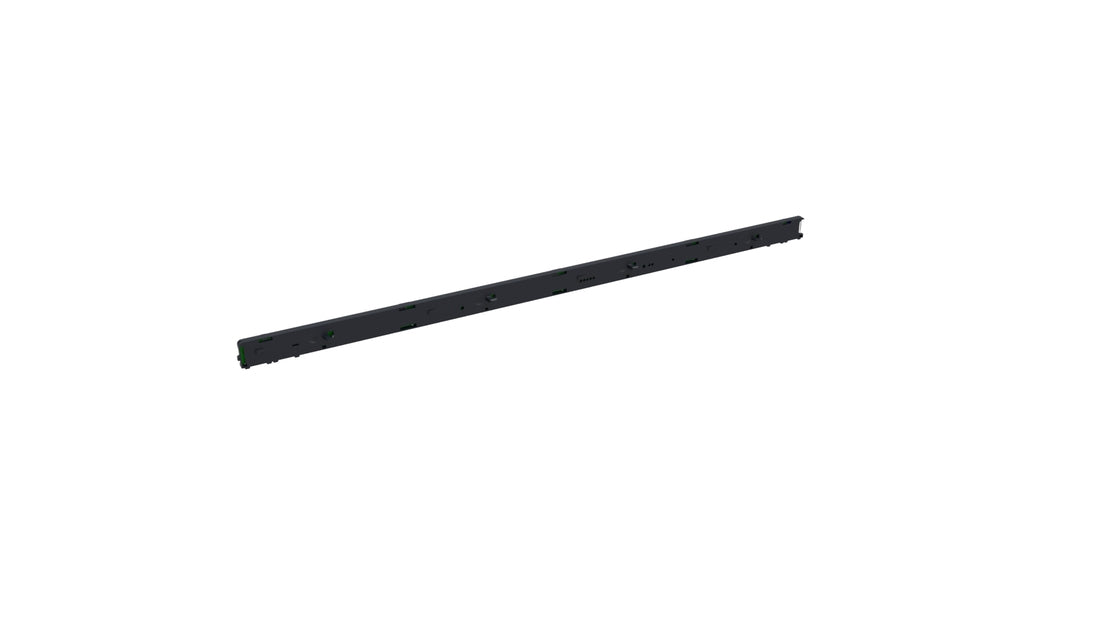

CommScope 760198747 | Systimax 360 Ipatch Upgrade Kit for Evolve Panel, 24 Port, 10 Pack
Regular price
$1,054.34
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
CommScope 760198747 | Systimax 360 Ipatch Upgrade Kit for Evolve Pa...
Regular price
$1,054.34
Unit price
Description
Description
CommScope 760198747 | Systimax 360 Ipatch Upgrade Kit for Evolve Panel, 24 Port, 10 Pack
Specifications
Specifications
Product Classification
| Regional Availability | Asia / Australia/New Zealand / EMEA / Latin America / North America |
|---|---|
| Portfolio | SYSTIMAX |
| Product Type | RJ45 patch panel |
| Product Brand | SYSTIMAX 360 / iPatch |
General Specifications
| ANSI/TIA Category | 6 / 6A |
|---|---|
| Color | Cool gray |
| Intelligence Type | iPatch upgrade kit |
| Total Ports, quantity | 24 |
Dimensions
| Height | 31.75 mm / 1.25 in |
|---|---|
| Width | 393.7 mm / 15.5 in |
| Depth | 12.7 mm / 0.5 in |
Electrical Specifications
| Current Rating at Temperature | 1.5 A @ 20 °C / 1.5 A @ 68 °F |
|---|---|
| Dielectric Withstand Voltage, RMS, conductive surface | 1,500 Vac @ 60 Hz |
| Dielectric Withstand Voltage, RMS, contact-to-contact | 1,000 Vac @ 60 Hz |
Material Specifications
| Material Type | Acrylonitrile butadiene styrene (ABS) / Polycarbonate |
|---|
Environmental Specifications
| Operating Temperature | -5 °C to +50 °C (+23 °F to +122 °F) |
|---|---|
| Storage Temperature | -40 °C to +70 °C (-40 °F to +158 °F) |
| Relative Humidity | Up to 95%, non-condensing |
| Flammability Rating | UL 94 V-0 |
| Safety Standard | ACMA / CE / UL / cUL |
Packaging and Weights
| Packaging quantity | 10 |
|---|---|
| Weight, net | 0.113 kg / 0.25 lb |
Regulatory Compliance/Certifications
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
|---|
Documents and Downloads
Documents and Downloads
- Revit BIM Models
- 760152280 Drawing - 2D DWG
- 760152280 Drawing - PDF
- 860 516 491 - iPatch Upgrade Module Instructions for SYSTIMAX 360 Panels and the InstaPATCH QUATTRO Panel
- Statement of Compliance RoHS/REACH
- 760152280 Product specifications
- Customer and Technical Support, Training, Software/Firmware, Repair Services
- Visio Stencil Resources
