Brand: Hoffman
|
SKU:
400175

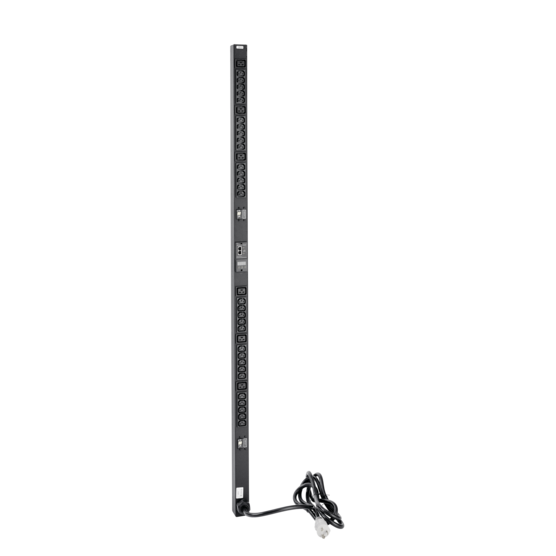

Hoffman DP1N622415 | Rack- and Panel-Mount PDU, 62in length, Black, Steel, 24 Rec, 15A
Regular price
$367.45
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Hoffman DP1N622415 | Rack- and Panel-Mount PDU, 62in length, Black,...
Regular price
$367.45
Unit price
Description
Description
The Rack- and Panel-Mount PDUs not only provide convenient, reliable power to equipment mounted in cabinets or on open frame racks, but they can also be configured to meet a wide range of design specifications. These PDU's are a basic, lower-cost solution that provide great value.
Contact nVent HOFFMAN for custom modifications and non-standard offerings.
Isolate circuits on dual circuit models with separate circuit breakers.
Main Features
- Power on/off LED indicates whether power is available at the PDU
- External ground stud provided on single-phase models for secure grounding
- Circuit breakers provide additional equipment protection
- Circuits are isolated on dual circuit model; each has its own circuit breaker
- Reset button provides easy access to circuit breaker reset
- Surge protector models have an indicator LED to verify surge circuitry protection
- Rack-mount models mount directly to rack or with adapter bracket
- Rack-mount models designed for single-phase applications
- Panel-mount models can be mounted flush or with hanging bracket
- Power cord with molded-on plug: 2-in. (305-mm) long single-phase model: 6 ft. (1.8 m); Other single-phase models: 15 ft. (4.6 m)
Specifications
Specifications
Industry Standards
- UL/cUL 60950 listed
- UL 1449 (Surge protector models only)
- EIA 310-D (19-in. rack-mount models only)
Related Accessories
- Catalog #: A19PSMB
- Catalog #: DP10E
- Catalog #: DP5E
- Catalog #: DPCLIP
- Catalog #: DPDU1
- Catalog #: EPDUBK
Specifications
| Material | Mild Steel |
|---|---|
| Length | 62 in / 1575 mm |
| Surge Protection | No |
| Load Rating | 15A |
| Voltage AC | 120 V |
| Receptacle Quantity | 24 |
| Receptacle Style | NEMA 5-15R |
| Power Cord Plug | NEMA 5-15P |
| Color | Black |
| Finish | Textured |
| Weight | 7 lb |
| BULLETIN NUMBER | DPS |
Documents and Downloads
Documents and Downloads
- Hoffman DP1N622415 Declaration of Compliance
- Hoffman DP1N622415 CE-00094
- Hoffman DP1N622415 Rack- and Panel-Mount Power Distribution Units (PDUs) Instruction Manual
- Hoffman DP1N622415 IEC Cord Sets Instruction Manual
- Hoffman DP1N622415 Rack- and Panel-Mount Power Distribution Units (PDUs) Spec Sheet
- Hoffman DP1N622415 Data Sheet
