Brand: Tripp-Lite
|
SKU:
565348

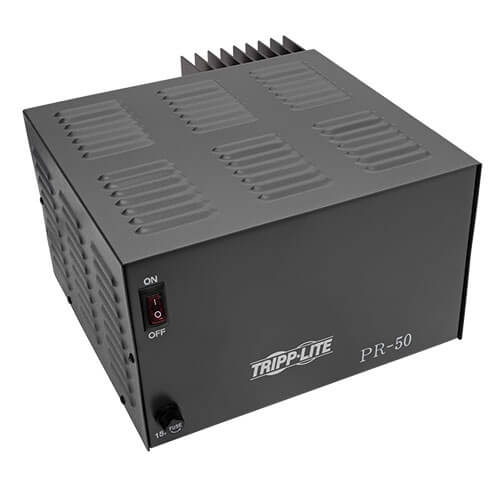

Tripp-Lite PR50 | TAA-Compliant 50-Amp DC Power Supply, 13.8VDC, Precision Regulated AC-to-DC Conversion
Regular price
$390.67
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Tripp-Lite PR50 | TAA-Compliant 50-Amp DC Power Supply, 13.8VDC, Pr...
Regular price
$390.67
Unit price
Description
Description
Provide precise DC power from an AC power source with this space-saving DC power supply. The PR50 efficiently converts 120 volts AC into 13.8 volts DC. It has a high power density that makes it perfect for a range of applications, like 225 watt transmitters, VHF/UHF ham radios, low power linear amplifiers, test bench equipment, commercial/land-mobile radios, and point-of-sale displays.
Features
- Smaller footprint maximizes operating space
- Crowbar overvoltage protection prevents damage to connected equipment due to overvoltages
- Current-limiting electronic foldback enables time-controlled automatic overcurrent protection in case of overload
- Solid state, integrated circuit maintains excellent regulation of output voltage
- Regulated output voltage maintains up to 95% of no load value
- High quality filtering creates very low ripple/low noise operation
- Heavy-duty power transformer provides complete isolation from noise on incoming AC power
- Large heat sinks and vented cabinets supply cool operation for continuous use and long life of the unit
- Illuminated on/off switch
- Connectors: Hardwire terminals / Red positive (+), Black negative (-)
- Working Temperature Range: 0° C to 40° C (32° F to 104° F), 0 to 95% humidity, non-condensing
- Storage Temperature Range: -15° C to 50° C (5° F to 122° F)
- LED Indicators: Red LED indicates that DC output is being provided
- Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases
Specifications
Specifications
Highlights
- Smaller footprint maximizes operating space
- Crowbar overvoltage protection prevents damage to connected equipment due to overvoltages
- Automatic time-controlled overcurrent protection in case of overload
- Solid state, integrated circuit maintains excellent regulation of output voltage
- Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases
Overview
| UPC Code | 37332060181.0 |
|---|
Output
| Intermittent (Peak) Amps | 50 |
|---|
Physical
| Shipping Dimensions (hwd / in.) | 11.50 x 7.40 x 15.70 |
|---|---|
| Shipping Weight (lbs.) | 31.20 |
| Unit Dimensions (hwd / in.) | 6.75 x 10.5 x 11.5 |
| Unit Weight (lbs.) | 30 |
Warranty
| Product Warranty Period (Worldwide) | 1-year limited warranty |
|---|
