Panduit H100X064H1T | Heat-Shrink Label | UPC - 07498352259
Description
Description
Panduit is a global leader in reliable and innovative solutions for identification and safety. Products are engineered for a wide variety of industries and applications -including electrical, electronics, industrial and network. Panduit offers a complete, leading edge line of labeling software, high performance label materials (all RoHS compliant) and printers that provide enhanced productivity, dependability and value to all infrastructure labeling requirements.

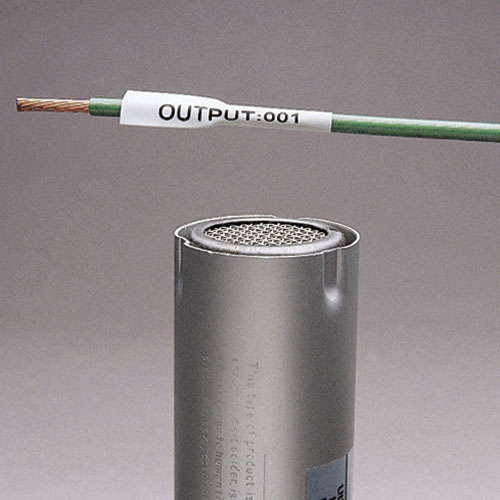

Panduit Pan-Code Heat Shrink Label, 1-Side Military Grade Thermal Transfer, 0.64 in Length, 1 in Width, 12 to 6 AWG Wire, White Marker, Polyolefin, -67 to 275 deg F
Features + Benefits
- The heat shrink sleeve is designed to provide a clear, reliable and durable way to identify wires and cables
- Will meet MIL-M-81531, MIL-STD202F and MIL-STD-883E when printed with RMH4BL or RHH4BL-S ribbons
- The thermal transfer military grade heat shrink label in white is 1-side with a 3/8 in (9.525 mm) dia and made of 3:1 flattened polyolefin
- Pre-cut flattened polyolefin is both thermal transfer and dot matrix printable and supplied roll mounted on plastic carrier
- Panduit labeling software packages include all label formats for quick and easy label production
- Heat shrink labels are mounted on a plastic carrier and offer crisp, clear legends with superior readability for quick and easy label production in all label formats, including thermal transfer and dot matrix printable
Panduit H100X064H1T Key Specs
| Product Type | Heat-Shrink Label |
| Color | White |
| Compatible Wire Gauge (AWG) | 12-6 |
| Diameter (In.) | 0.38 |
| Diameter (mm) | 9.7 |
| Material | Polyolefin |
| Flammability Rating | VW-1 |
| Number of Labels | 1000 |
| Number of Labels per Row | 2 |
| Number of Sides | 1 |
| Maximum Operating Temperature (°C) | 135 |
| Maximum Operating Temperature (°F) | 275 |
| Minimum Operating Temperature (°C) | -55 |
| Minimum Operating Temperature (°F) | -67 |
| Overall Height (In.) | 0.64 |
| Overall Height (mm) | 16.3 |
| Overall Width (In.) | 1 |
| Overall Width (mm) | 25.4 |
| Resistance Properties | Military Grade |
| Standards Met | Meets UL Standard 224 for flammability and AMS-DTL-23053/5C (Class 1 and Class 3). Meets SAE-AS81531, MIL-STD-883F Method 2015.13, Solutions A, B, and D, and D202F, and MIL-STD-202G Method 215K, Solutions A, C, and D when printed with resin or hybrid thermal transfer ribbons. RoHS Compliant. |
