Panduit H200X044H2T | Military-Grade Thermal Transfer Heat Shrink L...
Description
Description

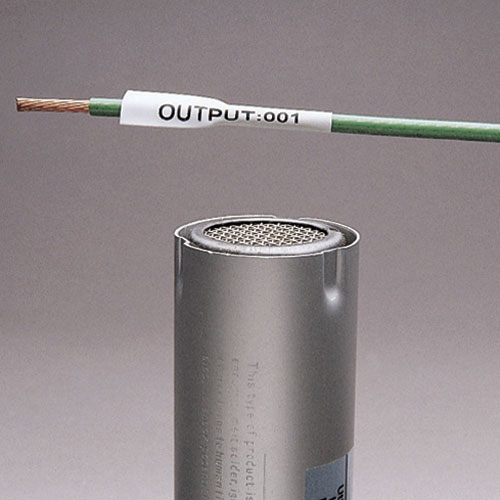

The H200X044H2T Military-Grade Polyolefin Heat-Shrink Label is a single-sided printable. It offers crisp, clear legends with superior readability for quick and easy label production. The heat-shrink sleeve is designed to provide a clear, reliable, and durable way to identify wires and cables. Designed for use with Panduit TDP printers. Shrink ratio 3:1. 2" x 0.44" (50.8 mm x 11.2 mm). Color Yellow. 500 labels per roll.
Panduit Pan-Code Heat Shrink Label, Single-Sided Thermal Transfer, 0.44 in Length, 2 in Width, 16 to 10 AWG Wire, Yellow Marker, Polyolefin, -67 to 275 deg F
Our military-grade thermal transfer heat shrink label delivers superior durability and reliability for critical wire and cable identification in extreme conditions while maintaining compliance.
Panduit - H200X044H2T - Features
- Permanent, one piece, heat shrink sleeve designed to provide clear, durable identification of wires and cables
- Tested for use as an identification marker in (Class 1E) harsh environments
- Use thermal transfer hybrid ribbon or white resin ribbon
- Durable flattened polyolefin, high quality heat shrink wire or cable labels
- Heat shrink labels are mounted on a plastic carrier and offer crisp, clear legends with superior readability for quick and easy label production in all label formats, including thermal transfer and dot matrix printable
- 3:1 shrink ratio
- Made of flattened military grade polyolefin
Specifications
Specifications
Panduit - H200X044H2T - Specifications
| UNSPSC Code | 55120000 |
|---|---|
| Label Dimensions (In.) | 2W x 0.44H |
| Product Type | Heat Shrink Label |
| Color | Yellow |
| Compatible Wire Gauge (AWG) | 16-10 |
| Diameter (In.) | 0.25 |
| Diameter (mm) | 6.4 |
| Material | Polyolefin |
| Flammability Rating | VW-1 |
| Number of Labels | 500 |
| Number of Labels per Row | 1 |
| Number of Sides | 1 |
| Maximum Operating Temperature (°C) | 135 |
| Maximum Operating Temperature (°F) | 275 |
| Minimum Operating Temperature (°C) | -55 |
| Minimum Operating Temperature (°F) | -67 |
| Overall Width (In.) | 2 |
| Overall Width (mm) | 50.8 |
| Overall Height (In.) | 0.44 |
| Overall Height (mm) | 11.2 |
| Resistance Properties | Military Grade |
| Standards Met | Meets UL Standard 224 for flammability and AMS-DTL-23053/5C (Class 1 and Class 3). Meets SAE-AS81531, MIL-STD-883F Method 2015.13, Solutions A, B, and D, and D202F, and MIL-STD-202G Method 215K, Solutions A, C, and D when printed with resin or hybrid thermal transfer ribbons. RoHS Compliant. |
| UPC | 07498352653 |
Panduit - H200X044H2T - Package Information
| UPC | 07498352653 |
|---|---|
| Standard Packaging Quantity | 1 |
| Standard Packaging Volume (cf) | 0.1252 |
| Standard Ctn. Quantity | 0 |
| Standard Ctn. Volume (cf) | 0.0000 |
