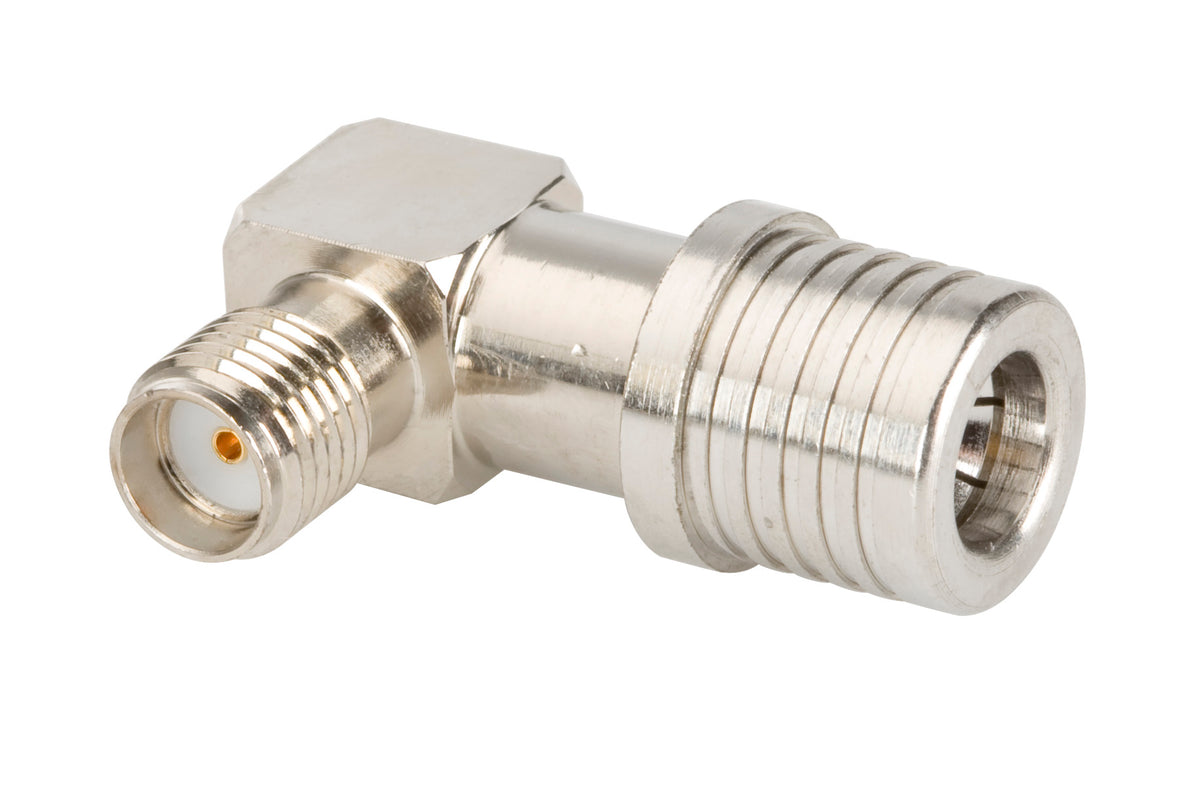

Commscope CA-SFQMR | SMA Female to QMA Male Right Angle Adapter
Regular price
$51.91
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Commscope CA-SFQMR | SMA Female to QMA Male Right Angle Adapter
Regular price
$51.91
Unit price
Description
Description
Commscope CA-SFQMR | SMA Female to QMA Male Right Angle Adapter
Specifications
Specifications
Outline Drawing
| Click on image to enlarge. |
|---|
Product Classification
| Product Type | Adapter |
|---|
General Specifications
| Body Style | Right angle |
|---|---|
| Inner Contact Plating | Gold |
| Interface | SMA Female |
| Interface 2 | QMA Male |
| Mounting Angle | Right angle |
| Outer Contact Plating | Trimetal |
| Pressurizable | No |
Dimensions
| Width | 10.5 mm / 0.413 in |
|---|---|
| Length | 23.8 mm / 0.937 in |
| Diameter | 17.06 mm / 0.672 in |
Electrical Specifications
| Average Power at Frequency | 100.0 W/900 MHz |
|---|---|
| Connector Impedance | 50 ohm |
| dc Test Voltage | 1000 V |
| Inner Contact Resistance, maximum | 3 mOhm |
| Insulation Resistance, minimum | 5000 mOhm |
| Operating Frequency Band | 0 – 11000 MHz |
| Outer Contact Resistance, maximum | 2.5 mOhm |
| Peak Power, maximum | 5 kW |
| RF Operating Voltage, maximum (vrms) | 500 V |
Mechanical Specifications
| Insertion Force | 22 N / 4.946 lbf |
|---|---|
| Insertion Force Method | IEC 61169-15:9.3.5 |
| Interface Durability | 100 cycles |
| Interface Durability Method | IEC 61169-16:9.5 |
| Mechanical Shock Test Method | IEC 60068-2-27 |
Environmental Specifications
| Operating Temperature | -55 °C to +85 °C (-67 °F to +185 °F) |
|---|---|
| Storage Temperature | -65 °C to +125 °C (-85 °F to +257 °F) |
| Attenuation, Ambient Temperature | 20 °C / 68 °F |
| Average Power, Ambient Temperature | 40 °C / 104 °F |
| Average Power, Inner Conductor Temperature | 100 °C / 212 °F |
| Climatic Sequence Test Method | IEC 60068-1 |
| Corrosion Test Method | IEC 60068-2-11 |
| Damp Heat Steady State Test Method | IEC 60068-2-3 |
| Thermal Shock Test Method | IEC 60068-2-14 |
| Vibration Test Method | IEC 60068-2-6 |
Packaging and Weights
| Weight, net | 9.02 g / 0.02 lb |
|---|
Regulatory Compliance/Certifications
