Brand: Tripp-Lite
|
SKU:
812425

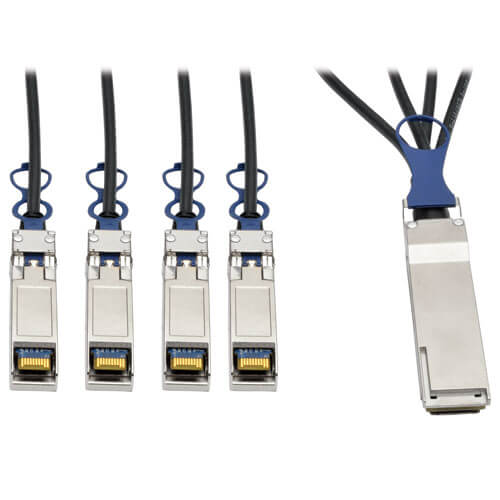

Tripp-Lite N281-01M-BK | QSFP+ to 10 GbE SFP+ Passive DAC Breakout Cable (M/M), QSFP+ to (x4) SFP+, Compatible to Cisco QSFP-4SFP10G-CU1M, 1M (3.28 ft.)
Regular price
$208.52
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Tripp-Lite N281-01M-BK | QSFP+ to 10 GbE SFP+ Passive DAC Breakout ...
Regular price
$208.52
Unit price
Description
Description
Connects and distributes
your 40 GbE system directly into four 10 GbE servers, switches and/or adapters.
Features
- Splits a 40 GbE Network System to Four 10 GbE Servers, Switches and/or Adapters
- Ideal for data centers, high-end servers and enterprise wiring closets
- Lower port cost and power budget when compared to fiber optics
- Multi-platform support for 40GBASE-CR4, 10GBASE-CR4, 6G SAS, Fibre Channel and SONET
- Top-of-the-Line Construction
- Zinc die-cast male connectors for superior EMI resistance
- Ergonomic pull-tab ejectors for quick, easy connections
- 8-pair wire technology optimized for bandwidth-intense applications
- Flexible 30 AWG conductors maintain smooth high-frequency response
- Fully Compliant and Compatible
- Compatible with SDR, DDR and QDR
- Compatible with all QSFP and QSRP+ ports
- Complies with latest MSA (Multi-Source Agreement) SFF-8431 and SFF-8436 architecture
- Compatible to Cisco QSFP-4SFP10G-CU1M
Specifications
Specifications
Overview
| UPC Code | 37332193094 |
|---|---|
| Technology | SFP+/QSPP+/QSFP28 |
Physical
| Color | Black |
|---|---|
| Cable Jacket Material | PVC |
| Cable Outer Diameter (OD) | 4.2mm |
| Wire Gauge (AWG) | 30 |
| Cable Length (ft.) | 3.3 |
| Cable Length (in.) | 39.6 |
| Minimum Bend Radius | 23mm |
| Shipping Dimensions (hwd / in.) | 12.00 x 10.50 x 0.50 |
| Shipping Weight (lbs.) | 0.55 |
Environmental
| Operating Temperature Range | 0? to +70? |
|---|---|
| Storage Temperature Range | -20? to +85? |
Communications
| Network Speed | 40 Gbps |
|---|---|
| IEEE Standards Supported | 802.3BA |
Connections
| Side A - Connector 1 | QSFP+ (MALE) |
|---|---|
| Side B - Connector 1 | (4) SFP+ (MALE) |
Warranty
| Product Warranty Period (Worldwide) | Lifetime limited warranty |
|---|
