Brand: Tripp-Lite
|
SKU:
642171

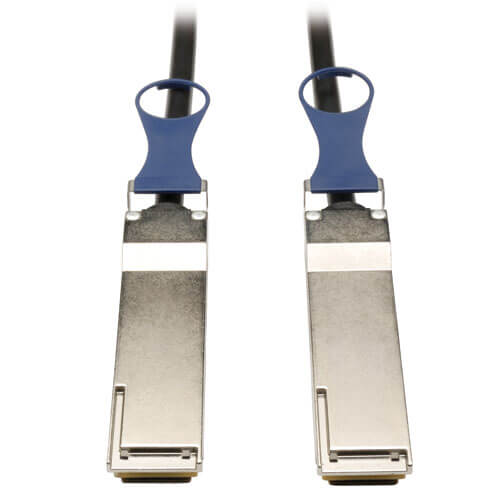

Tripp-Lite N282-05M-BK | QSFP+ to QSFP+ 40Gb Passive DAC Copper Infiniband Cable, QSFP-H40G-CU5M Compatible, 5M (16.4 ft.)
Regular price
$246.66
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Tripp-Lite N282-05M-BK | QSFP+ to QSFP+ 40Gb Passive DAC Copper Inf...
Regular price
$246.66
Unit price
Description
Description
Tripp-Lite N282-05M-BK | QSFP+ to QSFP+ 40Gb Passive DAC Copper Infiniband Cable, QSFP-H40G-CU5M Compatible, 5M (16.4 ft.)
Features
- 5 Meter QSFP+ tp QSFP+ 40Gb Passive DAC Copper Infiniband cable
- Compatible with Cisco QSFP-H40G-CU5M
- Meets or Exceeds strict 40-Gigabit Ethernet 40GBase-CR4 standards
- SDR, DDR, and QDR Compatible
- QSFP+ to QSFP+ 24AWG SFF-8436 compliant cable and connector
- Up to 10.3125 Gbps transfer rate per channel ( 40Gb aggregate )
- Multi-platform support for 40Gb, SAS, Fibre Channel, and SONET
- Zinc die-cast QSFP+ connectors with "Pull-to-Release" latching
- Fully compliant to latest QSFP+ MSA ( Multi Source Agreement )
- Lower port cost and reduced power budget vs Fiber Optics
- RoHS, SFF-8436, and IEEE 802.3ba Compliant
- BER better than 10¹²
Specifications
Specifications
Overview
| UPC Code | 37332181572 |
|---|---|
| Technology | SFP+/QSPP+/QSFP28 |
Physical
| Color | Black |
|---|---|
| Cable Jacket Material | PVC |
| Cable Outer Diameter (OD) | 8.5mm |
| Wire Gauge (AWG) | 26 |
| Cable Length (ft.) | 16.4 |
| Cable Length (in.) | 196.8 |
| Minimum Bend Radius | 45mm |
| Shipping Dimensions (hwd / in.) | 17.00 x 14.00 x 0.50 |
| Shipping Weight (lbs.) | 1.60 |
Environmental
| Operating Temperature Range | 0? to +70? |
|---|---|
| Storage Temperature Range | -20? to +85? |
Communications
| Network Speed | 40 Gbps |
|---|---|
| IEEE Standards Supported | 802.3BA |
Connections
| Side A - Connector 1 | QSFP+ (MALE) |
|---|---|
| Side B - Connector 1 | QSFP+ (MALE) |
Warranty
| Product Warranty Period (Worldwide) | Lifetime limited warranty |
|---|
