Brand: Panduit
|
SKU:
PAN-D18-250MB-M
Panduit D18-250MB-M | Loose Piece Disconnect | UPC - 07498382218
Regular price
$179.28
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit D18-250MB-M | Loose Piece Disconnect | UPC - 07498382218
Regular price
$179.28
Unit price
Brand: Panduit
|
SKU:
PAN-D18-250MB-M
Regular price
$179.28
Unit price
Shipping calculated at checkout.
Description
Description

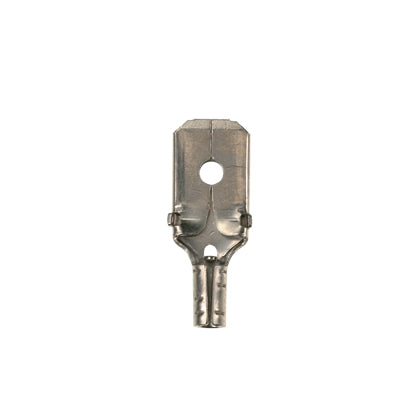

Panduit Pan-Term Male Tab Disconnect, Loose Piece Non-Insulated Vibration Resistant, Series: D-MB, Stranded Conductor, 22 to 18 AWG Conductor, 0.25 x 0.03 in Tab, Butted Seam/Standard Barrel, 2000 VAC, Specifications: 9/32 in L Wire Strip, 302 deg F, Brass, Metallic, Nickel Plated, 0.69 in L x 0.25 in W
Features + Benefits
Panduit D18-250MB-M | Loose Piece Disconnect | UPC - 07498382218 Key Specs
| Disconnect Type | Male Tab Disconnect |
| Insulation Material | Non-Insulated |
| Maximum Copper Conductor Size (AWG) | #18 |
| Maximum Wire Size (AWG) | #18 |
| Minimum Wire Size (AWG) | #22 |
| Minimum Copper Conductor Size (AWG) | #22 |
| Wire Strip Length (In.) | 0.28 |
| Wire Strip Length (mm) | 7.1 |
| Tab Size (In.) | 0.25 |
| Tab Size (mm) | 6.3 |
| Maximum Voltage (V) | 2000 |
| Base Material | Brass |
| Finish/Coating | Nickel |
| Color Code | Metallic |
| Maximum Operating Temperature (°C) | 150 |
| Maximum Operating Temperature (°F) | 302 |
| Sub Brand | Pan-Term |
| Overall Height (In.) | 0.3 |
| Overall Height (mm) | 0.8 |
Panduit D18-250MB-M | Loose Piece Disconnect | UPC - 07498382218 Data Sheets
| Part Drawings | Part Drawing - PDF - A4132007 | Download and View |
| Selection Guides | Terminal Tools Selection Guide | Download and View |
Panduit D18-250MB-M | Loose Piece Disconnect | UPC - 07498382218 Environmental Information
| Panduit's RoHS Statement | Download and View |
