Brand: Panduit
|
SKU:
DNF10-250FIMB-EA

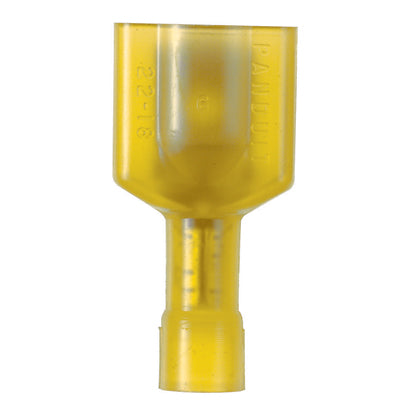

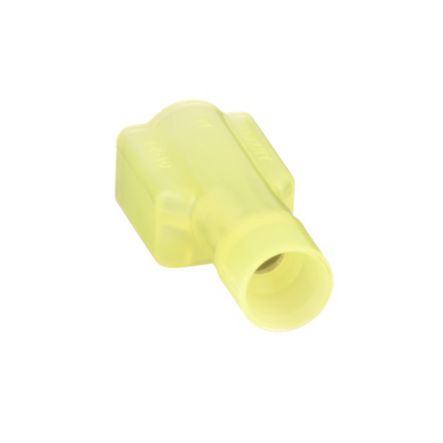

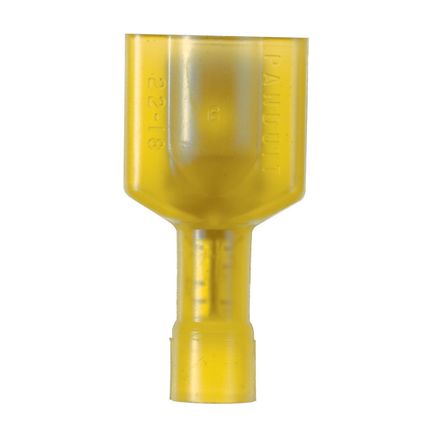

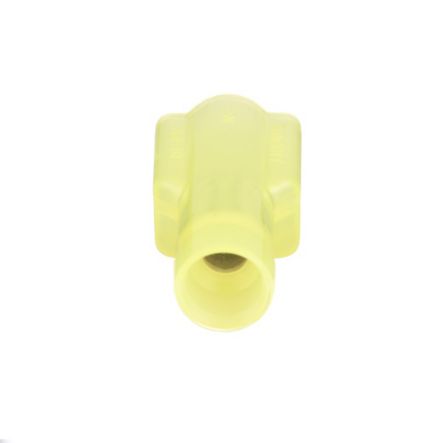

Panduit DNF10-250FIMB-Q | Loose Piece Disconnect | UPC - 07498311902
Regular price
$1.46
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit DNF10-250FIMB-Q | Loose Piece Disconnect | UPC - 07498311902
Regular price
$1.46
Unit price
Brand: Panduit
|
SKU:
DNF10-250FIMB-EA
Regular price
$1.46
Unit price
Shipping calculated at checkout.
Description
Description
Panduit Pan-Term Male Tab Disconnect, Loose Piece Vibration Resistant, Series: DNF-FIMB, Stranded Conductor, 12 to 10 AWG Conductor, 0.25 in W x 0.032 in THK Tab, Butted Seam/Standard Barrel, 600 VAC, 9/32 in L Wire Strip, 0.22 in Dia Maximum Insulation, Standard Barrel Configuration, 221 deg F, Copper, Yellow, Nickel Plated, 0.96 in L x 0.45 in W
Features + Benefits
- Disconnect can be inserted and removed from the male tab without the use of tools for lower installed cost
- Premium nylon insulation retains its shape when crimped and provides a tight grip around the wire insulation for maximum strain relief
- Fully insulated design provides protection from electrical shorts
- Oversized housing designed for maximum versatility to mate with most commercially available fully insulated female disconnects
- Internal wire stop assures proper length of insertion into terminal barrel, providing a higher quality connection
- Premium nylon fully insulated
Panduit DNF10-250FIMB-Q | Loose Piece Disconnect | UPC - 07498311902 Key Specs
| Note | DNF10-250FIMB-Q replaces DNF10-250FIMB-L |
| Disconnect Type | Female Disconnect |
| Insulation Material | Nylon-Fully Insulated |
| Insulation Type | Nylon Fully Insulated |
| Maximum Copper Conductor Size (AWG) | #10 |
| Maximum Wire Size (AWG) | #10 |
| Minimum Wire Size (AWG) | #12 |
| Minimum Copper Conductor Size (AWG) | #12 |
| Wire Strip Length (In.) | 0.28 |
| Wire Strip Length (mm) | 7.1 |
| Tab Size (In.) | 0.25 |
| Tab Size (mm) | 6.3 |
| Standards Met | UL 310 Listed, UL Listed 20H3 E78522; CSA Certified LR31212, C22.2 No.153 |
| Maximum Voltage (V) | 600 |
| Base Material | Copper |
| Finish/Coating | Nickel-Plated |
| Color Code | Yellow |
| Flammability Rating | HB |
| Insulation Diameter (In.) | 0.22 |
| Insulation Diameter (mm) | 5.6 |
Panduit DNF10-250FIMB-Q | Loose Piece Disconnect | UPC - 07498311902 Data Sheets
| Part Drawings | Part Drawing - PDF - A41402 | Download and View |
| Selection Guides | Terminal Tools Selection Guide | Download and View |
Panduit DNF10-250FIMB-Q | Loose Piece Disconnect | UPC - 07498311902 Environmental Information
| Panduit's RoHS Statement | Download and View |
