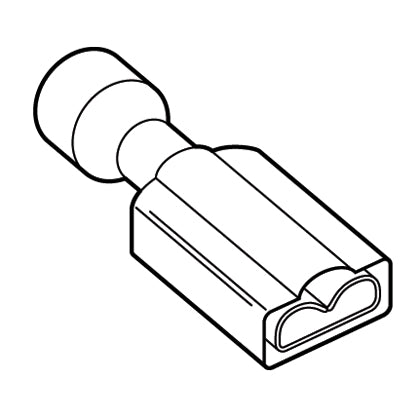

Panduit DNF14206FIBX-L | Loose Piece Disconnect | UPC - 07498312034

The vibration resistant female tab disconnect is made of brass and is tin-plated. It is fully insulated in a blue, nylon standard receptacle housing and has an expanded wire entry for wires with large diameters. . It has a tab size of 0.205/0.187 x 0.020" (5.2/4.7 x 0.5 mm) and supports a wire range of 16-14 AWG (1.5-2.5 mm²). It is 0.87" (22.1 mm) long and 0.31" (7.9 mm) wide. The disconnect has an expanded barrel configuration and a butted seam barrel. It comes in boxes of 1000. It comes in bottles of 50.

---

Panduit Panduit DNF14206FIBX-L | Loose Piece Disconnect | UPC - 07498312034 Key Specs

Note	DNF14-206FIBX-L replaces DNF14206FIBX-C
Disconnect Type	Female Disconnect
Insulation Material	Nylon - Barrel Insulated
Maximum Copper Conductor Size (AWG)	#14
Maximum Wire Size (AWG)	#14
Minimum Wire Size (AWG)	#16
Minimum Copper Conductor Size (AWG)	#16
Wire Strip Length (In.)	0.28
Wire Strip Length (mm)	7.1
Tab Size (In.)	0.21
Tab Size (mm)	5.2
Maximum Voltage (V)	600
Base Material	Brass
Finish/Coating	Tinned
Color Code	Blue
Flammability Rating	HB
Insulation Diameter (In.)	0.24
Insulation Diameter (mm)	6.1
Maximum Operating Temperature (°C)	105
Maximum Operating Temperature (°F)	221
