Panduit DNF18206FIBX-L | Loose Piece Disconnect | UPC - 07498312037

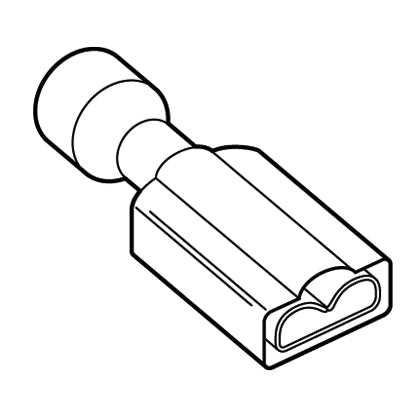

The vibration resistant female disconnect is made of brass and is tin-plated. It is fully insulated in a red, nylon standard receptacle housing with an expanded wire entry area for wires with large outside diameters. It has a tab size of 0.205/0.187 x 0.020" (5.2/4.7 x 0.5 mm) and supports a wire range of 22-18 AWG (0.5-1.0 mm²). It is 0.87" (22.1 mm) long and 0.31" (7.9 mm) wide. The disconnect has an expanded barrel configuration and a butted seam barrel. It comes in bottles of 50.

---

Panduit Panduit DNF18206FIBX-L | Loose Piece Disconnect | UPC - 07498312037 Key Specs

Note	DNF18206FIBX-L replaces DNF18206FIBX-C
Disconnect Type	Female Disconnect
Insulation Material	Nylon - Barrel Insulated
Maximum Copper Conductor Size (AWG)	#22
Maximum Wire Size (AWG)	#22
Minimum Wire Size (AWG)	#18
Minimum Copper Conductor Size (AWG)	#18
Wire Strip Length (In.)	0.28
Wire Strip Length (mm)	7.1
Tab Size (In.)	0.21
Tab Size (mm)	5.2
Standards Met	UL 310 Listed, UL Listed 20H3 E78522; CSA Certified LR31212, C22.2 No.153
Maximum Voltage (V)	600
Base Material	Brass
Finish/Coating	Tinned
Color Code	Red
Flammability Rating	HB
Insulation Diameter (In.)	0.21
Insulation Diameter (mm)	5.3
Maximum Operating Temperature (°C)	105
