Brand: Panduit
|
SKU:
327263-EA
Panduit DNFR14-250B-L | Loose Piece Disconnect | UPC - 07498312457
Regular price
$2.70
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit DNFR14-250B-L | Loose Piece Disconnect | UPC - 07498312457
Regular price
$2.70
Unit price
Description
Description

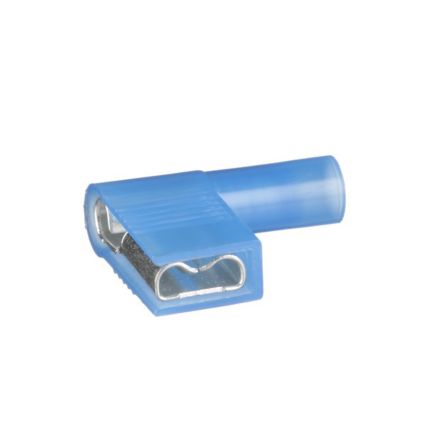

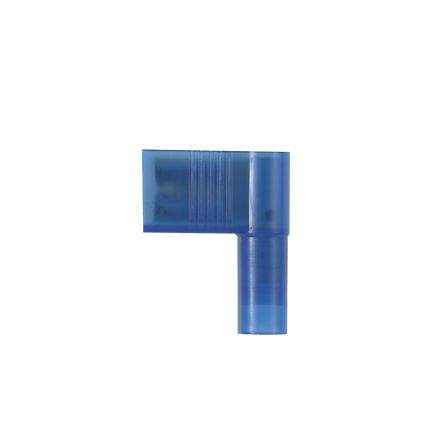

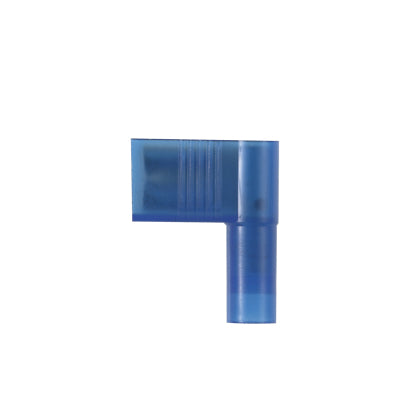

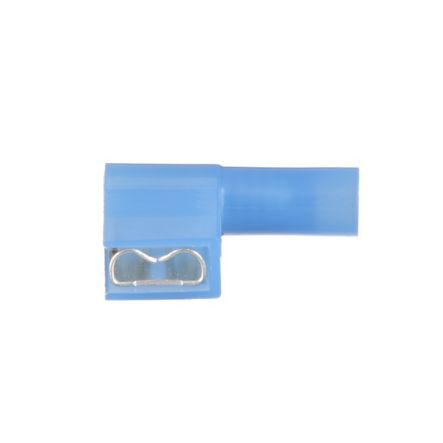

Panduit Pan-Term Female Disconnect, Vibration Resistant, Series: DNFR, Stranded Conductor, 16 to 14 AWG Conductor, 0.25 in W x 0.032 in THK Tab, Butted Seam Barrel, Crimp Terminal, 600 VAC, 9/32 in L Wire Strip, 0.155 in Dia Maximum Nylon Insulation, Funnel Entry Barrel Configuration, 221 deg F, Brass, Blue, Tin Plated, 0.78 in L x 0.36 in W x 0.2 in H, Insulated
Features + Benefits
- Continuously molded design provides reliable, consistent performance through the applicator for a high quality termination every time
- Disconnect can be inserted and removed from the male tab without the use of tools for lower installed cost
- Premium nylon insulation retains its shape when crimped and provides a tight grip around the wire insulation for maximum strain relief
- Fully insulated design provides protection from electrical shorts
- Internal wire stop assures proper length of insertion into terminal barrel, providing a higher quality connection
Panduit DNFR14-250B-L | Loose Piece Disconnect | UPC - 07498312457 Key Specs
| Note | DNFR14-250B-L replaces DNFR14-250B-C |
| Disconnect Type | Female Disconnect-Right Angle |
| Insulation Material | Nylon |
| Maximum Wire Size (AWG) | #14 |
| Minimum Wire Size (AWG) | #16 |
| Wire Strip Length (In.) | 9/32 |
| Wire Strip Length (mm) | 7.1 |
| Tab Size (In.) | 0.250 x 0.032 |
| Tab Size (mm) | 6.3 x 0.8 |
| Standards Met | UL 310, CSA 22.2 No.153 |
| Maximum Voltage (V) | 600 |
| Base Material | Brass |
| Finish/Coating | Tin-Plated |
| Color Code | Blue |
| Barrel Type | Funnel |
| Flammability Rating | UL94-HB |
| Maximum Operating Temperature (°C) | 105 |
| Maximum Operating Temperature (°F) | 221 |
| Sub Brand | Pan-Term |
| Maximum Metric Conductor Size (mm²) | 2.5 |
Panduit DNFR14-250B-L | Loose Piece Disconnect | UPC - 07498312457 Data Sheets
| Catalog Cut Sheets | Catalog Cut Sheet - DNFR18-205B-L Product Page | Download and View |
| Selection Guides | Terminal Tools Selection Guide | Download and View |
| Videos | BlackFin CT-2300 Video 16:9 BSN18-C | Download and View |
Panduit DNFR14-250B-L | Loose Piece Disconnect | UPC - 07498312457 Environmental Information
| Panduit's RoHS Statement | Download and View |
